Panasonic CS-Z20VKEW User Manual

18

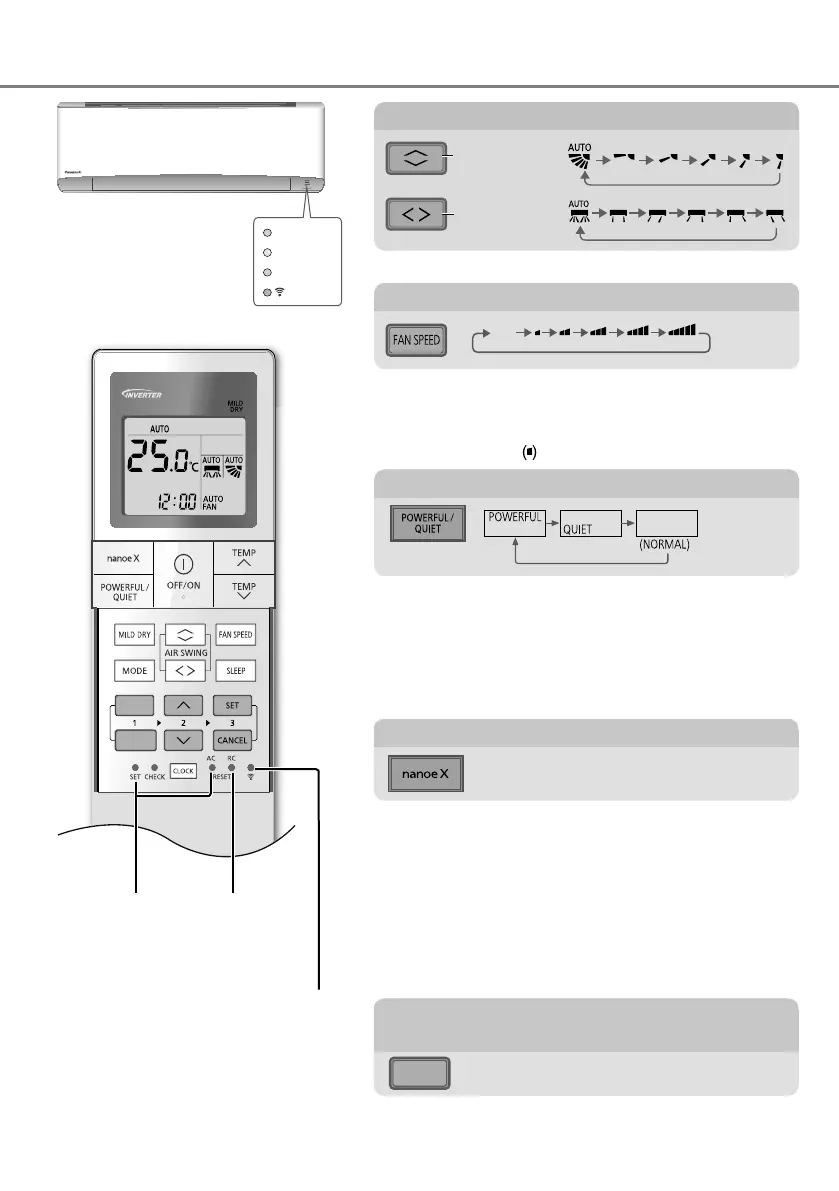

How to use
AIR SWING
To adjust airfl ow direction
POWERFUL:
To reach temperature quickly
• This operation stops automatically after 20 minutes.
QUIET:
To enjoy quiet operation
• This operation reduces airfl ow noise.
Upper direction
Lateral direction
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• To have low noise priority operation, select the
lowest fan speed
.
To adjust fan speed
AUTO
FAN
• Do not adjust the fl ap by hand.
To switch between powerful/quiet
Indicator
POWER
TIMER
nanoe X
To enjoy freshness and cleaner environment
• This operation provides clean air, moisturises your
skin and hair, deodorizes odours in the room.
• This operation can be activated when the unit is turn
on or off by pressing the nanoe™X button. During
nanoe™X individual operation, the fan speed will be
based on remote control setting.
• If nanoe™X is activated before the unit is turn off,
nanoe™X operation will resume once the unit is turn
on, this includes to ON Timer.
TIMER
OFF
TIMER
ON
Press to restore
the remote
control to default
setting.
Not used
in normal
operations.
Press to ON/ OFF
Wireless LAN
features.
• This operation reduces air dryness during COOL mode
only.
MILD DRY
To improve humidity and moisture level
(Not applicable for Multi split system)

Panasonic CS-Z20VKEW Specifications

General

Type	Split system
Multi-split	No
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	15 m
Hose length (min)	3 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	700 g
Cooling capacity in watts (max)	2400 W
Cooling capacity in watts (min)	750 W
Heating capacity in watts (max)	4000 W
Heating capacity in watts (min)	700 W
Cooling capacity in watts (nominal)	2050 W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	7.5
Heating capacity in watts (nominal) (Colder heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	-
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.7
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	2.05 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	98 kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.8 kW
Annual energy consumption (heating) (Colder heating season)	- kWh
Annual energy consumption (heating) (Average heating season)	626 kWh
Outdoor unit depth	289 mm
Outdoor unit width	780 mm
Outdoor unit height	542 mm
Outdoor unit weight	27000 g
Outdoor units quantity	1
Outdoor unit noise level	46 dB
Cooling airflow (outdoor unit)	1614 m³/h
Heating airflow (outdoor unit)	1446 m³/h
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	9000 g
Cooling airflow (indoor unit)	594 m³/h
Heating airflow (indoor unit)	642 m³/h
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	37 dB
