Panasonic CS-Z20VKEW User Manual

3
English
Table of contents
Safety precautions ................... 4-16
System Overview .................... 17
How to use ......................... 18-27
Network Adaptor Q&A ........ 28-29
To learn more .......................... 30
Cleaning instructions ............... 31
Troubleshooting ................. 32-34
Information ......................... 35-36
Copyright ............................ 37-41
B

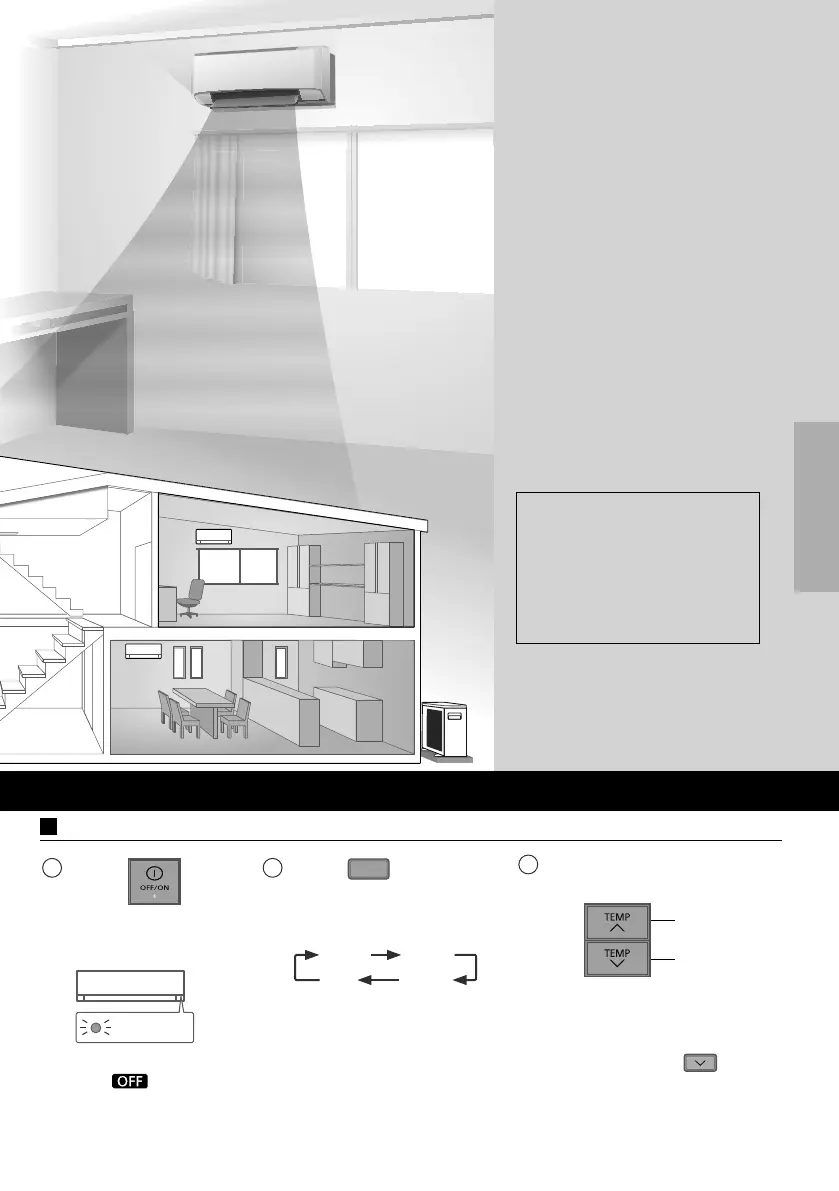

Basic operation
1
Press
to start/stop the
operation.
POWER
• Please note that
the
indication
is on display to
start the unit.
3
Select the desired
temperature.
Up
Down
Selection range:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
• Press and hold
for
approximately 10 seconds
to switch the temperature
indication in °C or °F.
Thank you for purchasing Panasonic
Air Conditioner.
The illustrations in this manual are for
explanation purposes only and may differ
from the actual unit. They are subject
to change without notice for future
improvement.
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2
2
Press
MODE
to select
the desired mode.
DRY
AUTO HEAT
COOL

Panasonic CS-Z20VKEW Specifications

General

Type	Split system
Multi-split	No
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	15 m
Hose length (min)	3 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	700 g
Cooling capacity in watts (max)	2400 W
Cooling capacity in watts (min)	750 W
Heating capacity in watts (max)	4000 W
Heating capacity in watts (min)	700 W
Cooling capacity in watts (nominal)	2050 W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	7.5
Heating capacity in watts (nominal) (Colder heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	-
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.7
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	2.05 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	98 kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.8 kW
Annual energy consumption (heating) (Colder heating season)	- kWh
Annual energy consumption (heating) (Average heating season)	626 kWh
Outdoor unit depth	289 mm
Outdoor unit width	780 mm
Outdoor unit height	542 mm
Outdoor unit weight	27000 g
Outdoor units quantity	1
Outdoor unit noise level	46 dB
Cooling airflow (outdoor unit)	1614 m³/h
Heating airflow (outdoor unit)	1446 m³/h
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	9000 g
Cooling airflow (indoor unit)	594 m³/h
Heating airflow (indoor unit)	642 m³/h
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	37 dB
