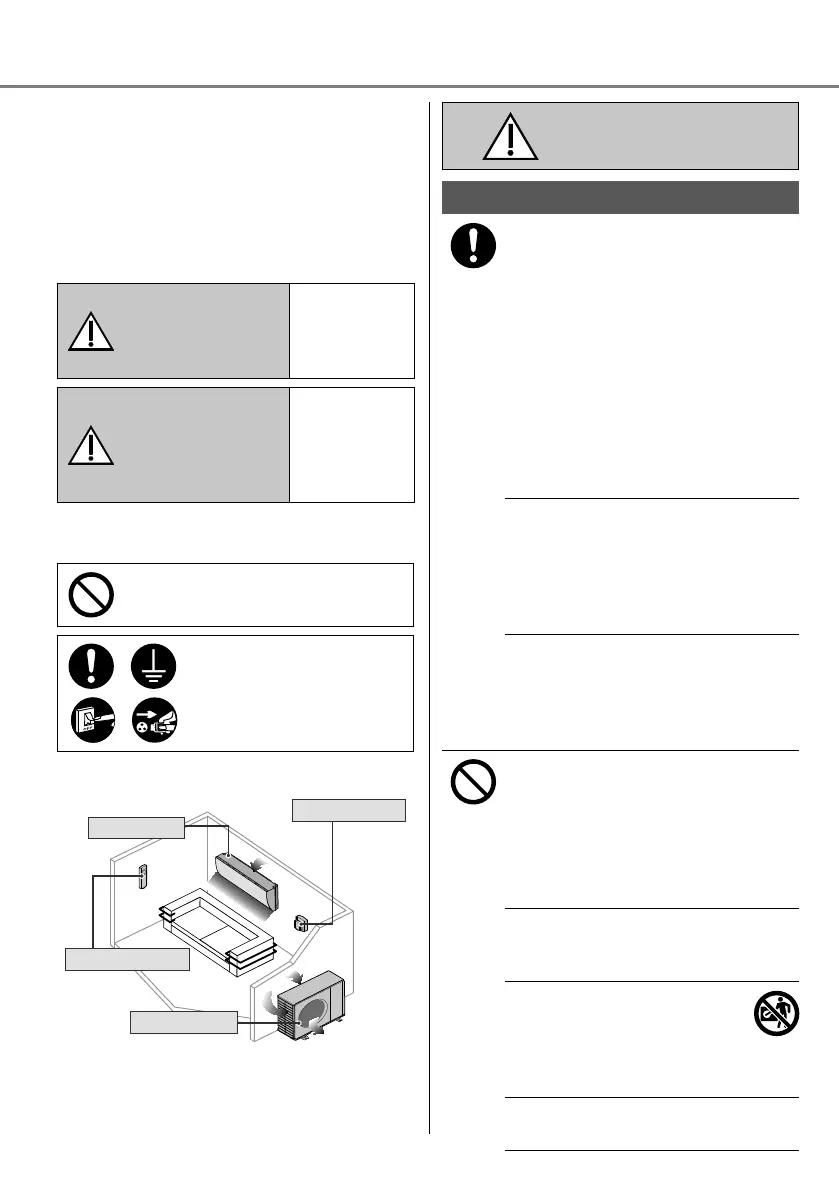

Safety precautions
To prevent personal injury, injury to others
or property damage, please comply with the
following:
Incorrect operation due to failure to follow
instructions below may cause harm or damage,
the seriousness of which is classifi ed as below:
This appliances is not intended for accessibility
by the general public.
WARNING
This sign
warns of
death or
serious injury.
CAUTION
This sign
warns of
injury or
damage to
property.
The instructions to be followed are classifi ed by
the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of
the appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Please consult authorised dealer or
specialist to clean the internal parts,
repair, install, remove and reinstall the
unit. Improper installation and handling
will cause leakage, electric shock or
fi re.
Confi rm with authorised dealer or
specialist on usage of any specifi ed
refrigerant type. Using refrigerant type
other than the specifi ed may cause
product damage, burst and injury etc.
Do not use means to accelerate
the defrosting process or to clean,
other than those recommended by
manufacturer.
Any unfi t method or using incompatible
material may cause product damage,
burst and serious injury.
Do not install the unit in a potentially
explosive or fl ammable atmosphere.
Failure to do so could result in fi re.
Do not insert your fi ngers
or other objects into the air
conditioner indoor or outdoor
unit, rotating parts may cause
injury.
Do not touch the outdoor unit during
lightning, it may cause electric shock.
Indoor unit
Outdoor unit
Power supply
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet

Panasonic CS-Z20VKEW Specifications

General

Type	Split system
Multi-split	No
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	15 m
Hose length (min)	3 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	700 g
Cooling capacity in watts (max)	2400 W
Cooling capacity in watts (min)	750 W
Heating capacity in watts (max)	4000 W
Heating capacity in watts (min)	700 W
Cooling capacity in watts (nominal)	2050 W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	7.5
Heating capacity in watts (nominal) (Colder heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	-
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.7
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	2.05 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	98 kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.8 kW
Annual energy consumption (heating) (Colder heating season)	- kWh
Annual energy consumption (heating) (Average heating season)	626 kWh
Outdoor unit depth	289 mm
Outdoor unit width	780 mm
Outdoor unit height	542 mm
Outdoor unit weight	27000 g
Outdoor units quantity	1
Outdoor unit noise level	46 dB
Cooling airflow (outdoor unit)	1614 m³/h
Heating airflow (outdoor unit)	1446 m³/h
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	9000 g
Cooling airflow (indoor unit)	594 m³/h
Heating airflow (indoor unit)	642 m³/h
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	37 dB
