21.3.3 CS-Z50UFEAW CU-Z50UBEA

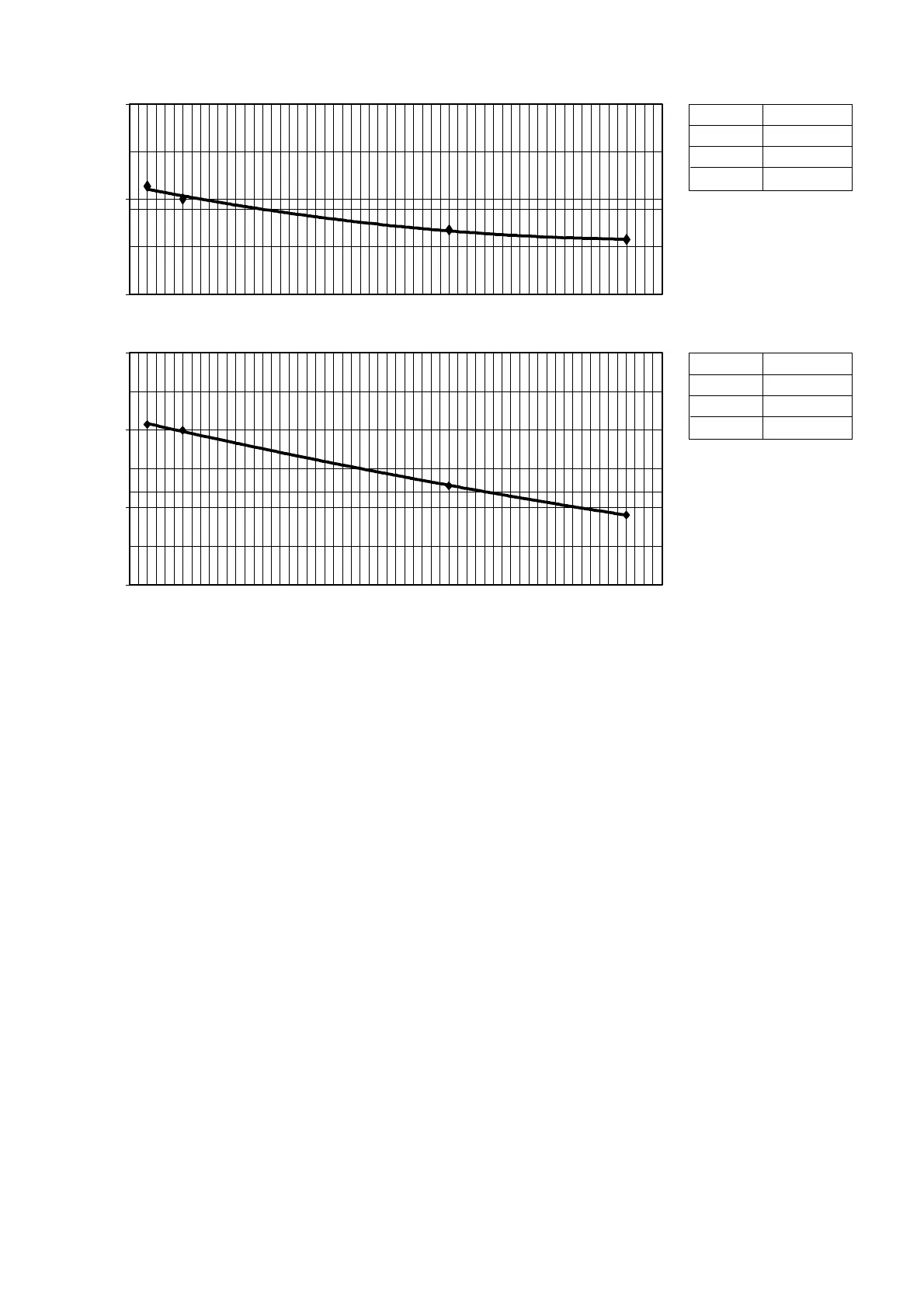

Note: The graphs show the factor after added right amount of additional refrigerant.
Maximum piping length for Z25/35UBEA is 20 meters.
Maximum piping length for Z50UBEA is 30 meters.
Cooling Capacity
Correction Factor
Cooling Capacity
Correction Factor
Heating Capacity
Correction Factor
Pipe Length (m)
Pipe Length (m)
3 1.0134
5 1.0000
20 0.9677
30 0.9576
3 1.0075
5 1.0000
20 0.9286
30 0.8905
0.90
1.00
1.10
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
0.80
0.90
1.00
1.10
