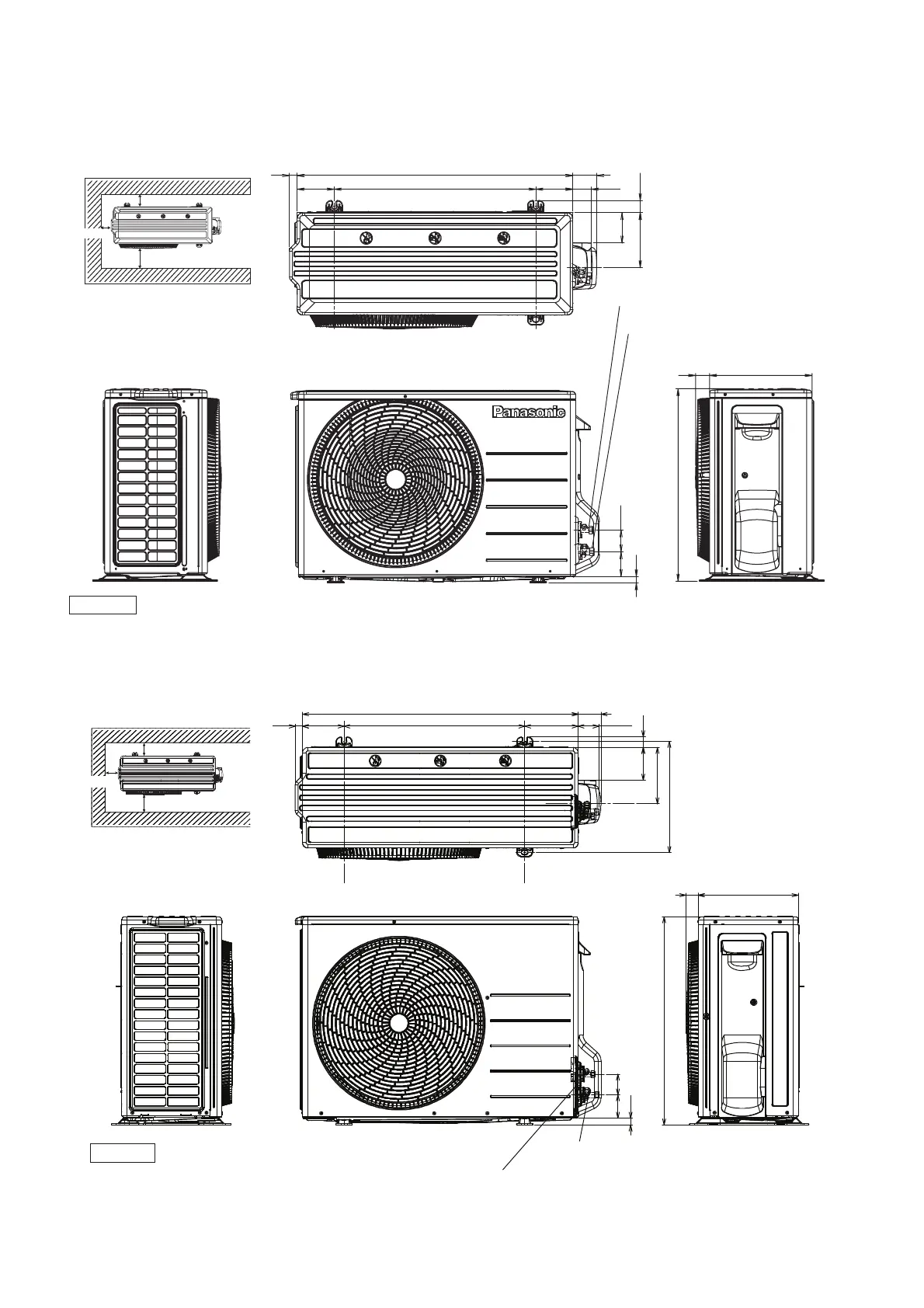

6.2 Outdoor Unit
6.2.1 CU-Z25UBEA
6.2.2 CU-Z35UBEA
(18)
69.5 61.6
542
28939
570.3
22
(104.7)
67.6
780
85.5
155.2 34.3
60.5104.9
Space necessary for
installation
Anchor Bolt Pitch
320
× 570
<Side View>
<Side View>
<Front View>
<Top View>
Unit: mm
2-way valve at Liquid side
(High Pressure)
3-way valve at Gas side
(Low Pressure)
1000 mm
100 mm
100 mm
<Top View>
<Front View><Side View>
<Side View>
Anchor Bolt Pitch
330 × 540
Space necessary for
installation
100 mm
100 mm
1000 mm
Unit : mm
3-way valve at Gas side
(Low Pressure)
2-way valve at Liquid side
(High Pressure)
22 (124) (62.6)
330
619
167
97
69
(20)
62
32
540 160
824 68.7
37 299
