23

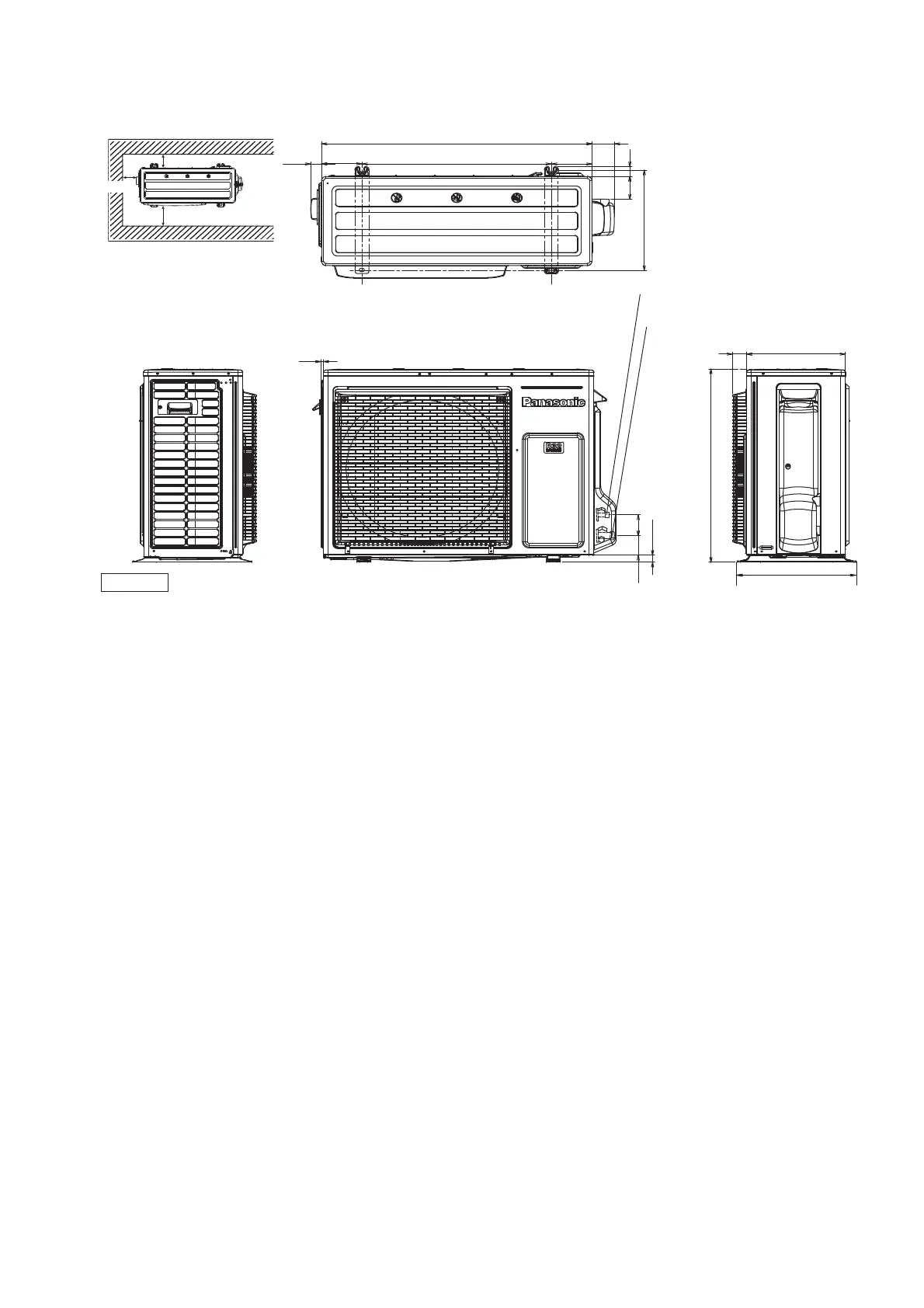

6.2.3 CU-Z50UBEA
(25)
7570.5
695
320
386
45
7.7
61334.7
(131)
72
875
3582
360.5
131
<Side View>
<Side View>
<Front View>
<Top View>
Unit: mm
2-way valve at Liquid side
(High Pressure)
3-way valve at Gas side
(Low Pressure)
Anchor Bolt Pitch
360.5 × 613
Space necessary for
installation
100 mm
100 mm
1000 mm
