Panasonic CT-2017F - Page 12

-12-

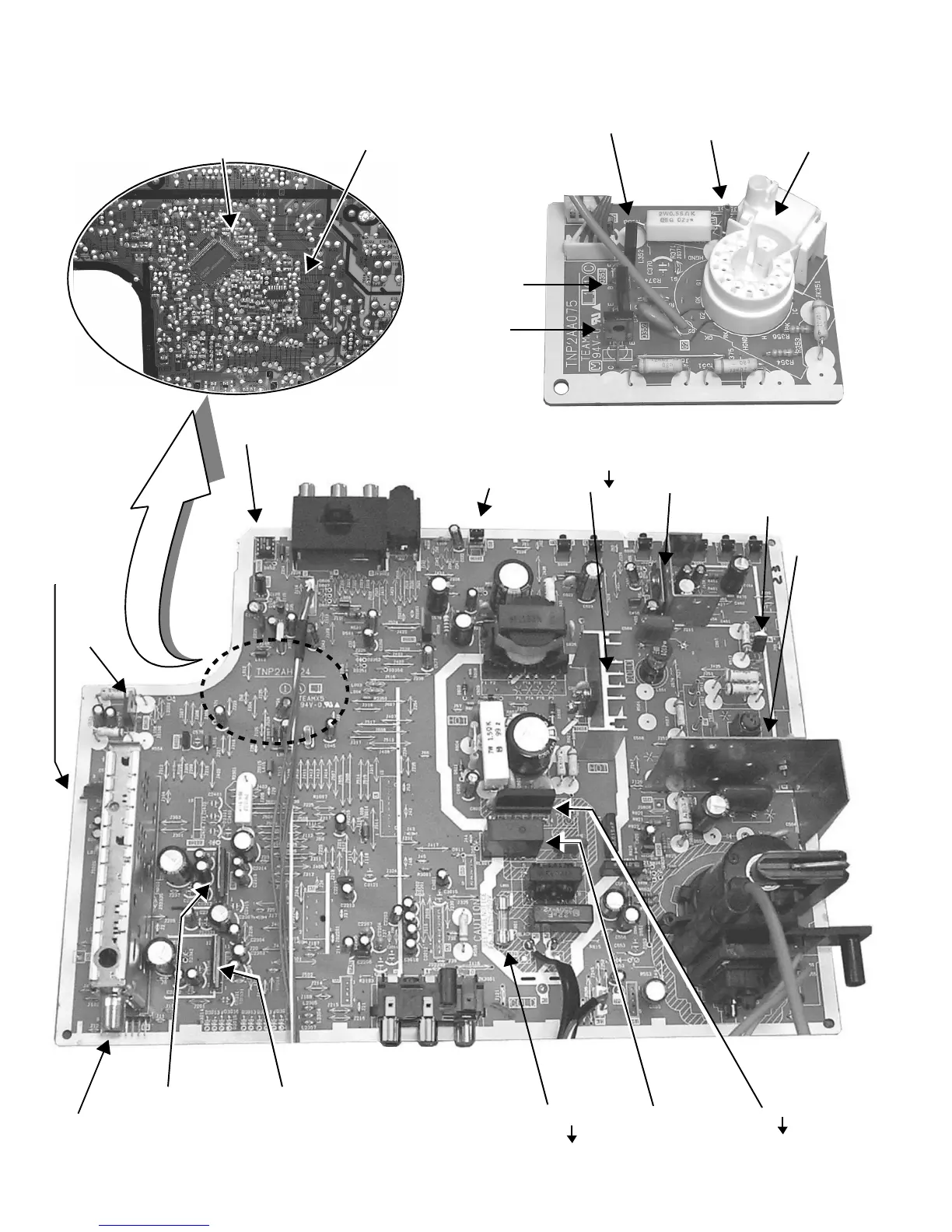

Main Components Location (cont...)
Front A/V Jacks
IC451
Vertical Out
IC003
Remote Sensor
MPU/VCJ
IC001
IC050
HALF TONE
CRT
Socket
GROUND
Q351
Q352
Q353
JK3002
IC002
EEPROM
IC552
5V REG
IC551
9V REG
IC801
VCO( )
Q501
H. DRIVE
Q551
H.OUT
RELAY
RL801
RED OUT
GREEN OUT
BLUE OUT
TNR001
TUNER
IC2302
AUDIO AMP (L)
IC2301
AUDIO AMP (R)
JK3001
REAR A/V JACKS
F801
FUSE( )
6.3A, 125/250V
D801( )
RECT. BRIDGE.
