Panasonic CT-2017F - A-Board Waveforms

- 31 -

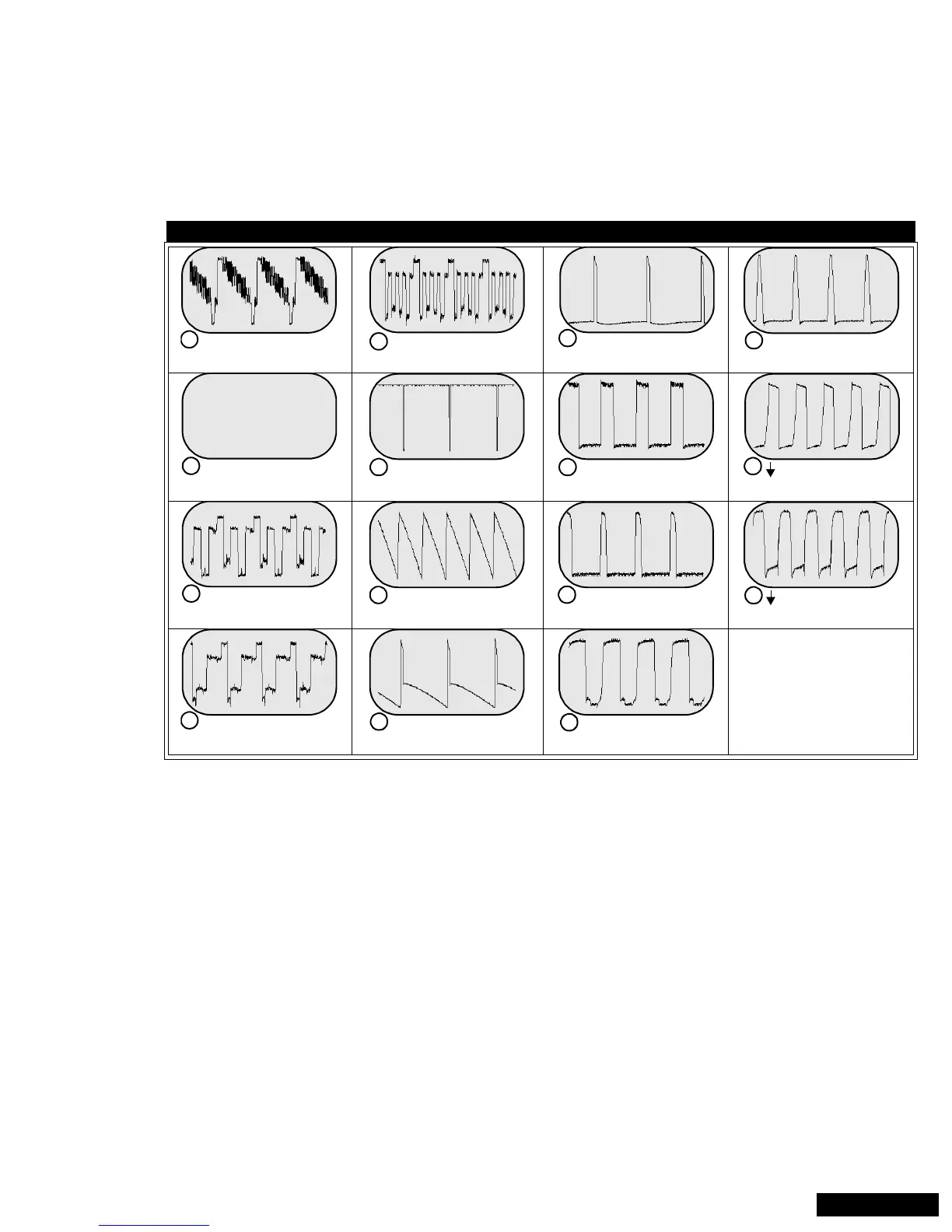

A-BOARD WAVEFORMS
1
TPA5 (VIDEO)
1.05 Vp-p [20µs
5
1.28 Vp-p [20µs]
(B OUT)
A11-3
9
27.4 Vp-p [5ms]
IC451 PIN 13 (PUMP UP)
13
1.17k Vp-p [20µs]
Q551 Collector (H OUT)
2
14.29MHz X’tal
IC001 PIN 35
ADC OSC
6
9.28 Vp-p [5ms]
IC451 PIN 2 (VERT IN)
10
5.28 Vp-p [20µs]
IC001 PIN 44 (H PULSE)
14
276.0 Vp-p [5µs]
IC801 PIN 1
3
1.6 Vp-p [20µs]
(R OUT)
A11-1
7
1.46 Vp-p [5ms]
IC451 PIN 7 (DRIVE)
11
3.2 Vp-p [20µs]
IC001 PIN 43 (FB PULSE)
15
2.90 Vp-p [5µs]
IC801 PIN 5
4
1.4 Vp-p [20µs]
(G OUT)
A11-2
8
48.0 Vp-p [5ms]
IC451 PIN 12 (VERT OUT)
12
172.0 Vp-p [20µs]
Q501 Collector (H DRIVE)
ABoard
