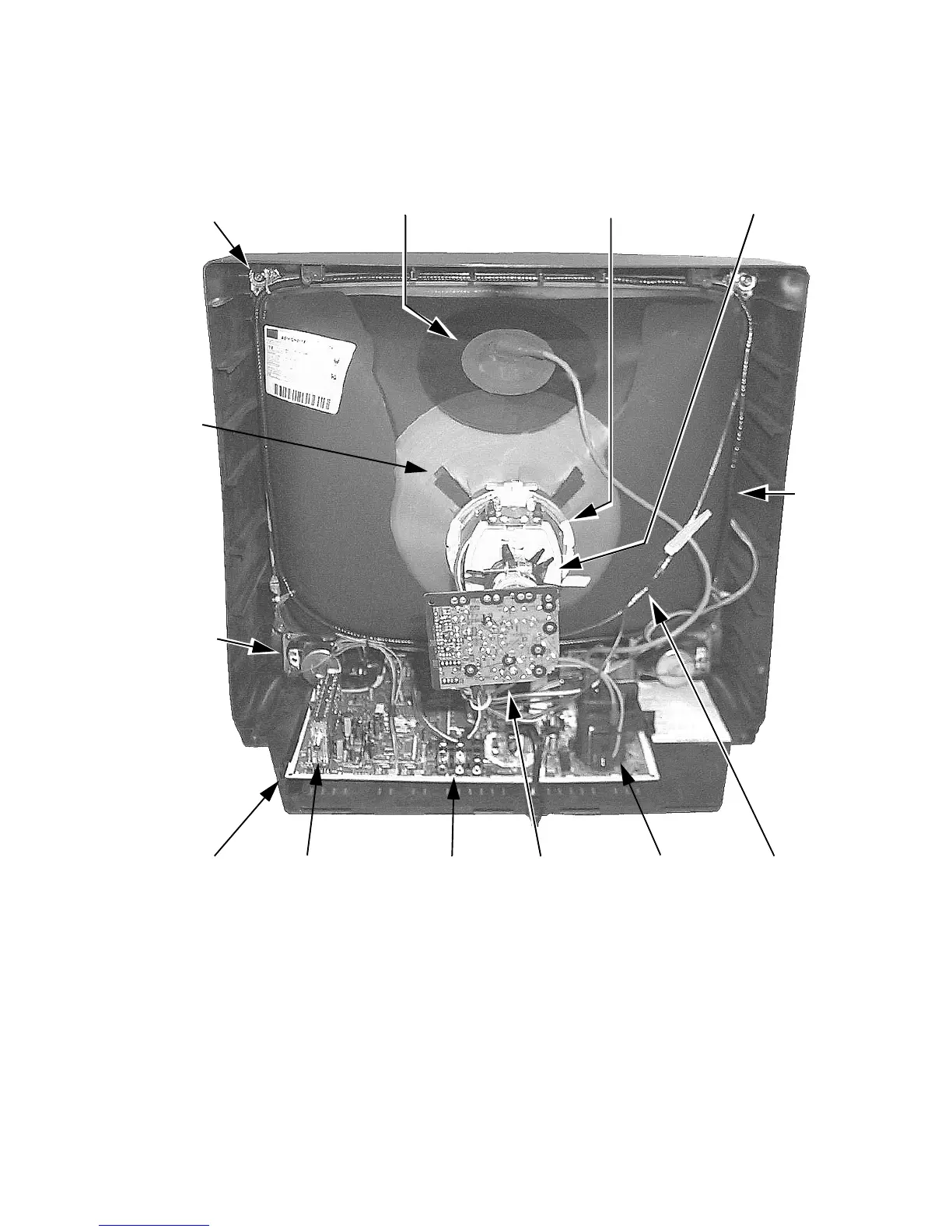

Main Components Location
Figure 6. Rear View
ANODE
(HIGH VOLTAGE)
CRT
by4ScrewsonCorners)
(Secured to Cabinet
DY
Deflection Yoke
CY
Convergence Yoke
Degaussing
Coil
Speakers
Secured by
2 Screws
A-Board
Main Chassis
Tuner A/V
JACKS
C-Board
CRT Panel
Flyback Dag Ground
Yoke
Wedge
