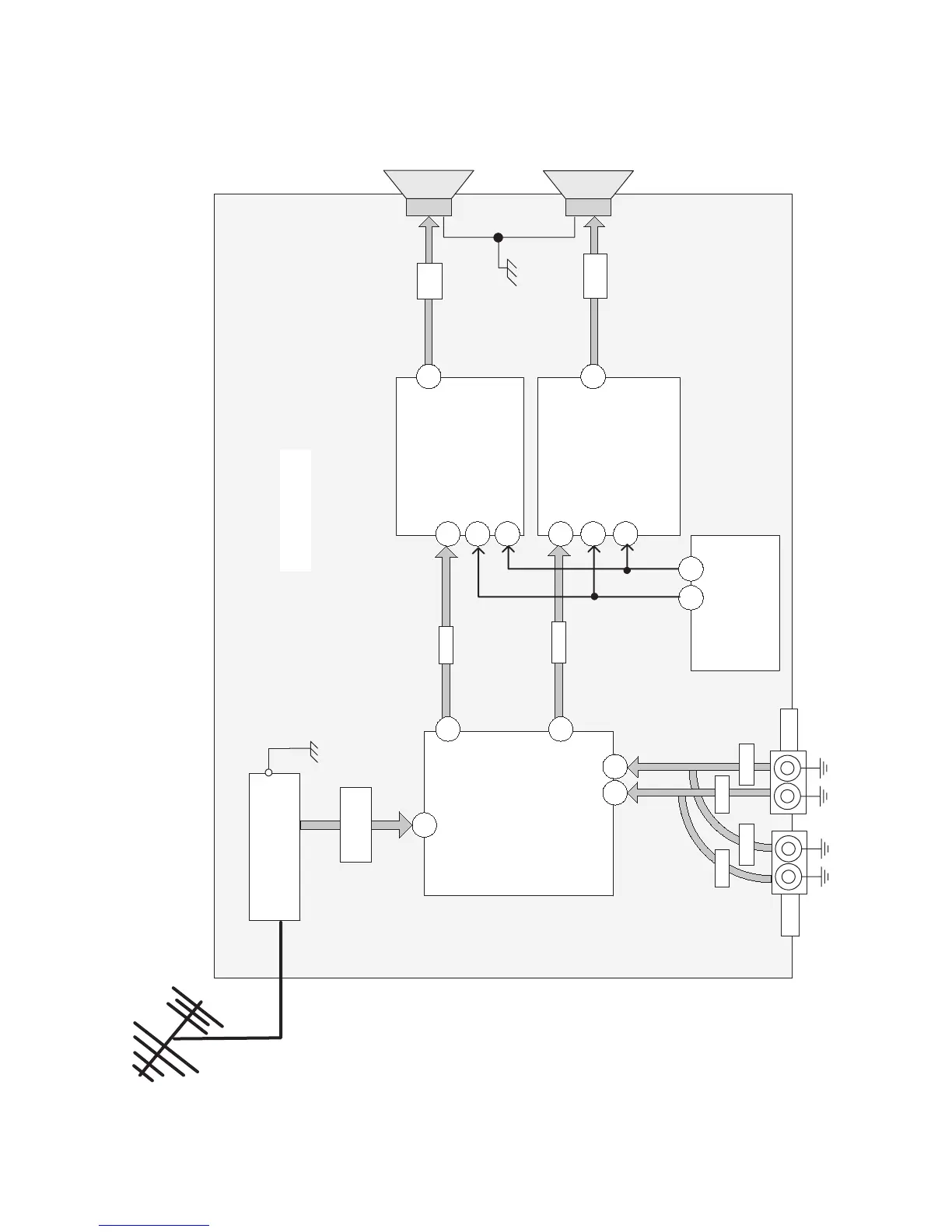

AUDIO SIGNAL PATH BLOCK DIAGRAM
Figure 7. Audio Signal Block Diagram
MAIN TUNER
TNR001
A/V 2
IC2201
MTS
ANN5829S-E1V.
LEFT&RIGHT
CHANNELS
14
2 3
A/V 1
LEFT LEFT
RIGHT RIGHT
LEFT
IN
RIGHT
IN
MPX IN
FRONT A
JK3001
REAR A
JK3002
IC001
MPU/VCJ
M65580MAP10
22 21
LEFT
RIGHT
LEFT
OUT
RIGHT
OUT
64
LEFT CHANNEL
AUDIO AMP
3 6
RIGHT CHANNEL
AUDIO AMP
3 6 9 9
TV IN
67
VOL
SP SW
VOL
TV IN
VOL
SP SW
SP / CP
LEFT
SPEAKER
RIGHT
SPEAKER
+
-
+
-
10 10
LEFT
OUT
RIGHT
OUT
A-BOARD
LEFT
OUT
RIGHT
OUT
