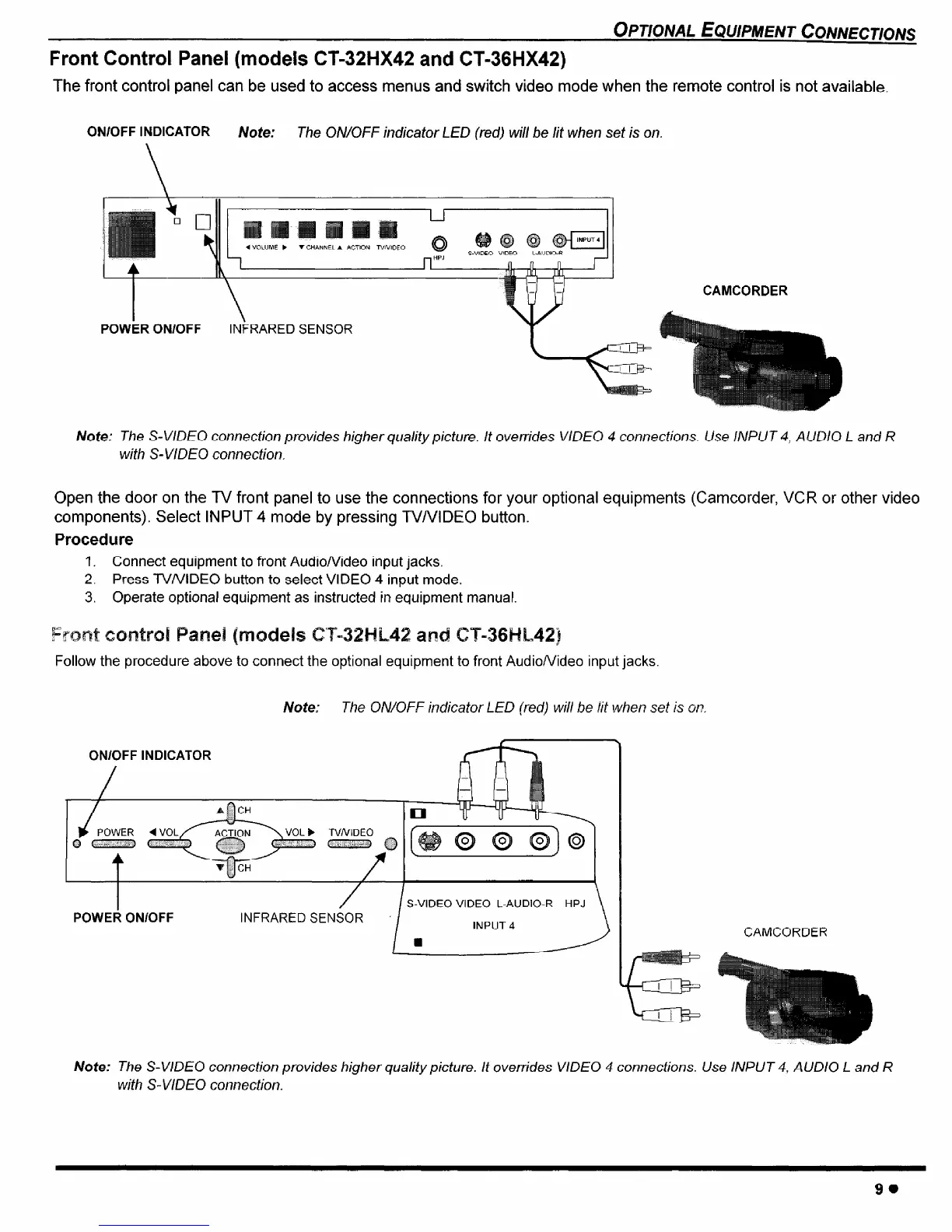

OPTIONAL EQUIPMENT CONNECT/ONS
Front Control Panel (models CT-32HX42 and CT-36HX42)
The front control panel can be used to access menus and switch
video mode when the remote control is not available.
ON/OFF INDICATOR
Note:
The ON/OFF indicator LED (red) will be /it when set is on.
CAMCORDER
Note: The S-VIDEO connection provides higher quality picture. It overrides V/DE0 4 connections. Use /A/PUT 4, AUDlO L and R
with S-VIDEO connection,
Open
the
door on the TV front panel to use the connections for your optional equipments (Camcorder, VCR or other video
components).
Select INPUT 4 mode by pressing TV/VIDEO button.
Procedure
1. Connect equipment to front AudioNideo input jacks.
2. Press TV/VIDEO button to select VIDEO 4 input mode.
3. Operate optional equipment as instructed in equipment manual.
Follow the procedure above to connect the optional equipment to front Audio/Video input jacks.
Note: The ON/OFF indicator LED (red) will be /it when set is on.
ON/OFF INDICATOR
S-VIDEO VIDEO L-AUDIO-R
HPJ
CAMCORDER
Note: The S-VIDEO connection provides higher quality picture. It overrides VIDEO 4 connections. Use INPUT 4, AUDIO L and R
with S-VIDEO connection.
