• Serviceability
− Self diagnosis
− Test Run at both Cooling and Heating rated frequency
• Built-in drain pump (Cassette and Duct type)
− A drain pump is built in.
The pipe can rise to 200 mm above the drain outlet.
2 Features
• Product

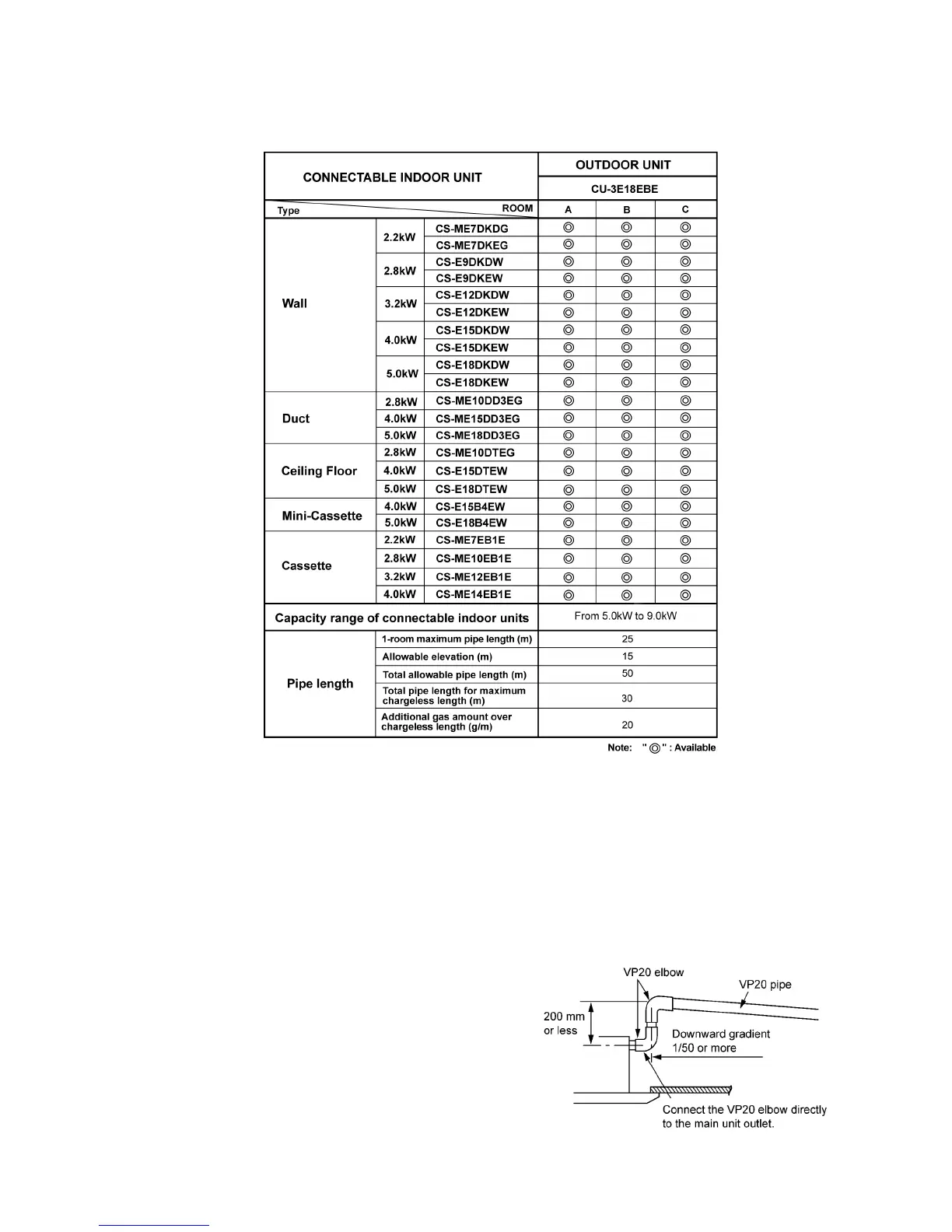

− A single OUTDOOR unit enable air conditioning of up to three separate rooms for CU-3E18EBE.
Remarks for CU-3E18EBE:
1. At least two indoor units must be connected.
2. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable
capacity range of indoor unit. (shown in the above table.)
Example: The below indoor units combination is possible to connect CU-3E18EBE.
(Total nominal capacity of indoor units is 5.0 kW and 9.0 kW)
1) Two CS-ME7DKEG only. (Total nominal cooling capacity is 4.4 kW.)
2) Three CS-E12DKEW only. (Total nominal cooling capacity is 9.6 kW.)
5
