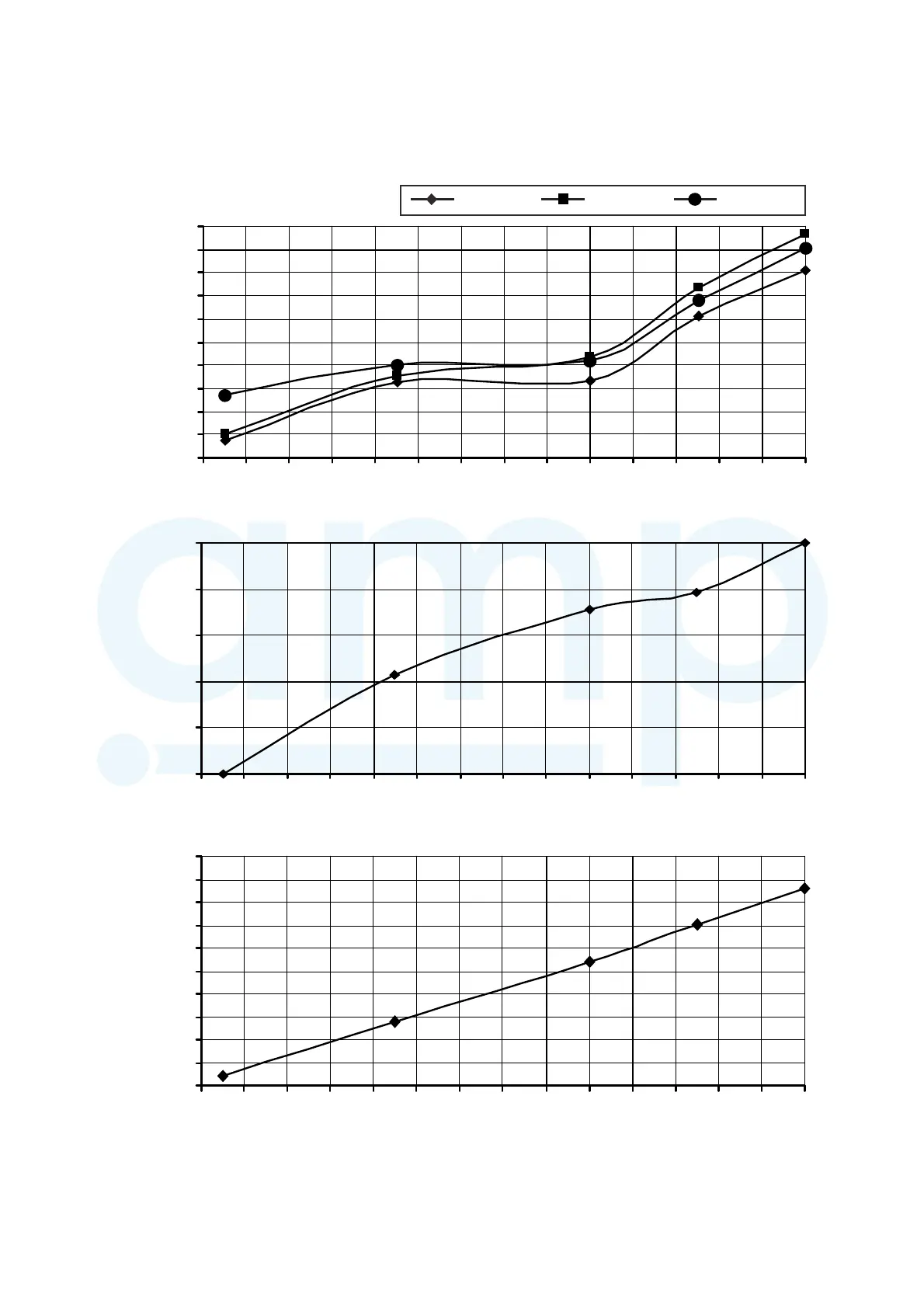

 Heating Characteristic
[Condition] Room temperature: 20°C (DBT), 12°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
A) Indoor unit capacity: Heating (2.0 + 2.5 + 3.5), CS-Z20TKEW + CS-Z25TKEW + CS-Z35TKEW
Outdoor Air Temperature (°C)
Indoor Discharge Air
Temperature (°C)
Z20TKEW Z35TKEWZ25TKEW
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
25.000
26.100
27.200
28.300
29.400
30.500
31.600
32.700
33.800
34.900
36.000
Outdoor Air Temperature (°C)
Current
(A)
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
7.800
8.080
8.360
8.640
8.920
9.200
Outdoor Air Temperature (°C)
Gas Side Piping
Pressure (MPa)
1.900
1.950
2.000
2.050
2.100
2.150
2.200
2.250
2.300
2.350
2.400
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
