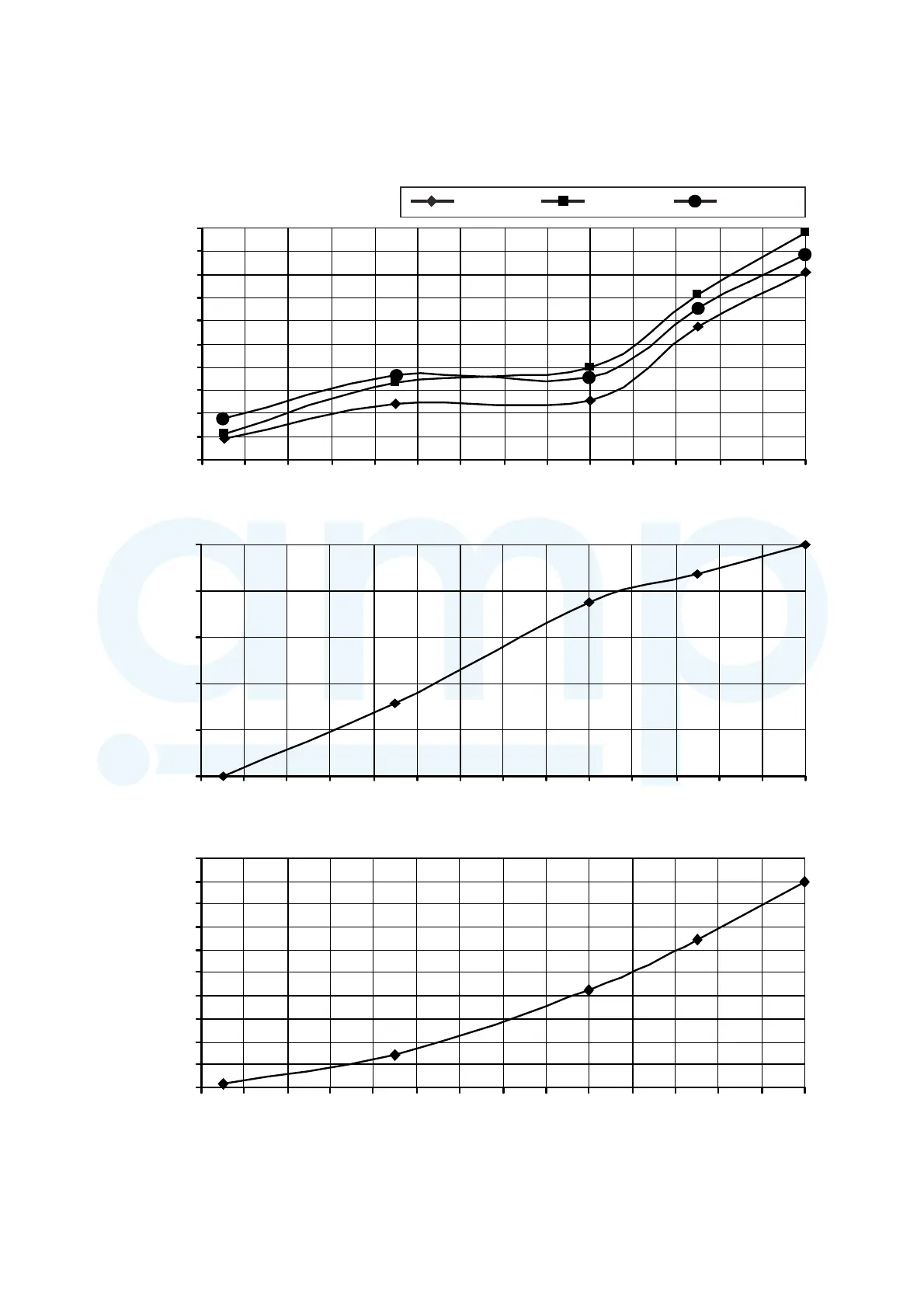

 Heating Characteristic
[Condition] Room temperature: 20°C (DBT), 12°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
A) Indoor unit capacity: Heating (2.0 + 2.5 + 2.5 + 3.5), CS-Z20TKEW + CS-Z25TKEW
× 2 + CS-Z35TKEW
Outdoor Air Temperature (°C)
Indoor Discharge Air
Temperature (°C)
Z20TKEW Z35TKEWZ25TKEW
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
25.000
25.900
26.800
27.700
28.600
29.500
30.400
31.300
32.200
33.100
34.000
Outdoor Air Temperature (°C)
Current
(A)
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
9.600
9.920
10.240
10.560
10.880
11.200
Outdoor Air Temperature (°C)
Gas Side Piping
Pressure (MPa)
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
1.800
1.870
1.940
2.010
2.080
2.150
2.220
2.290
2.360
2.430
2.500
