17.2 Outdoor Unit Removal Procedure (CU-4E27QBR CU-5E34QBR)
Caution! When handling electronic controller, be careful of electrostatic discharge.
17.2.1 Removing the Cabinet Top Plate
3. Remove the cabinet top plate (remove the
11 screws).

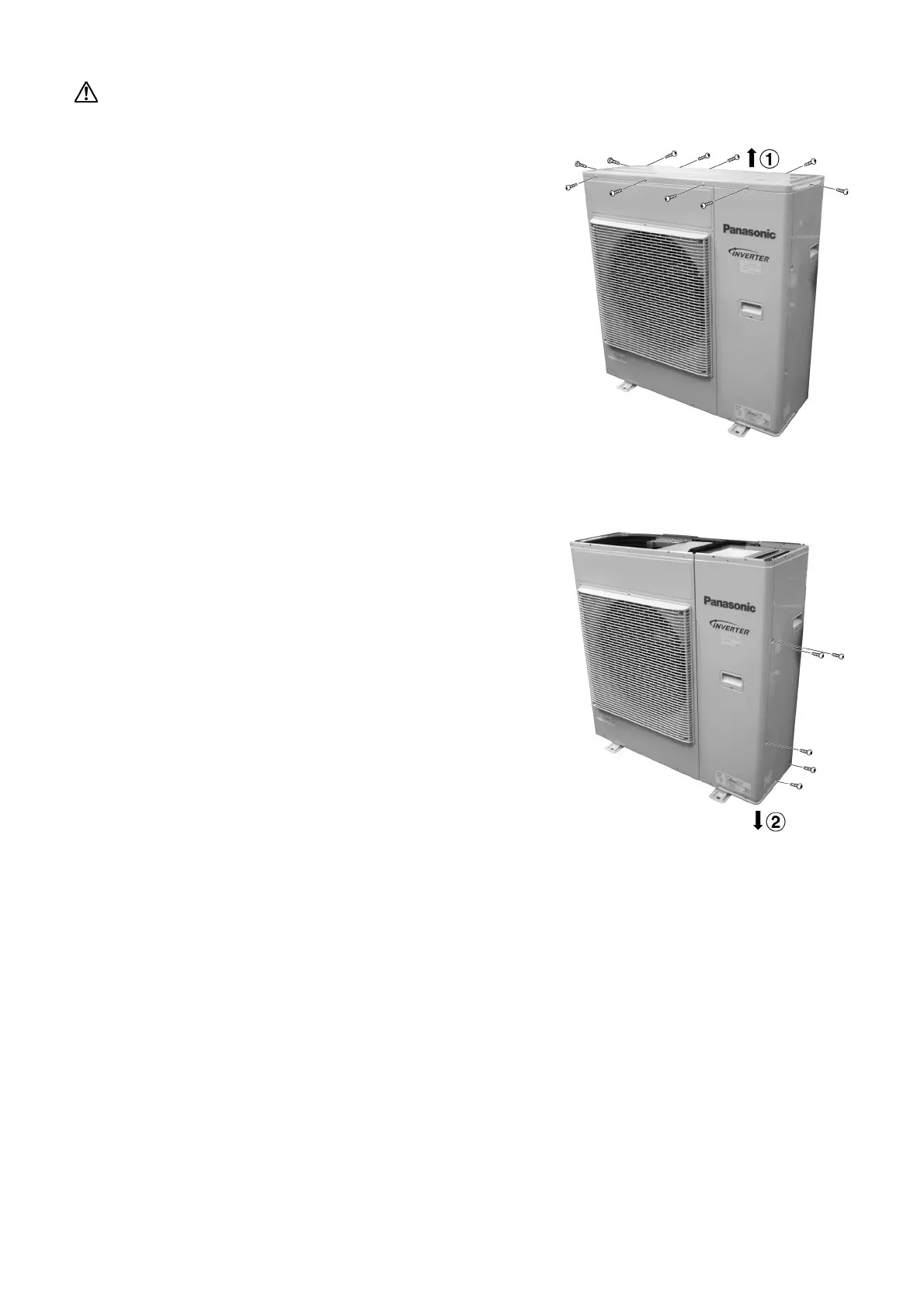

Fig. 1
17.2.2 Remove the Control Board Cover and Particular Plates
2. Remove the control board cover (remove the
5 screws).
Fig. 2
