10. Installation Instruction
10.1 Indoor Unit
10.1.1 Selecting the Installation Location
Indoor Unit
Before choosing the installation site, obtain user
approval.
Do not install the unit in excessive oil fume area
such as kitchen, workshop and etc.
There should not be any heat source or steam
near the unit.
There should not be any obstacles blocking the air
circulation.
A place where air circulation in the room is good.
A place where drainage can be easily done.
A place where noise prevention is taken into
consideration.
Do not install the unit near the door way.
Locate the indoor unit at least 1 m or more from
TV, radio, wireless equipment, antenna cables
and fluorescent Iight, and 2 m or more away from
a telephone.
Ensure the spaces indicated by arrows from the
wall, ceiling, fence or other obstacles.

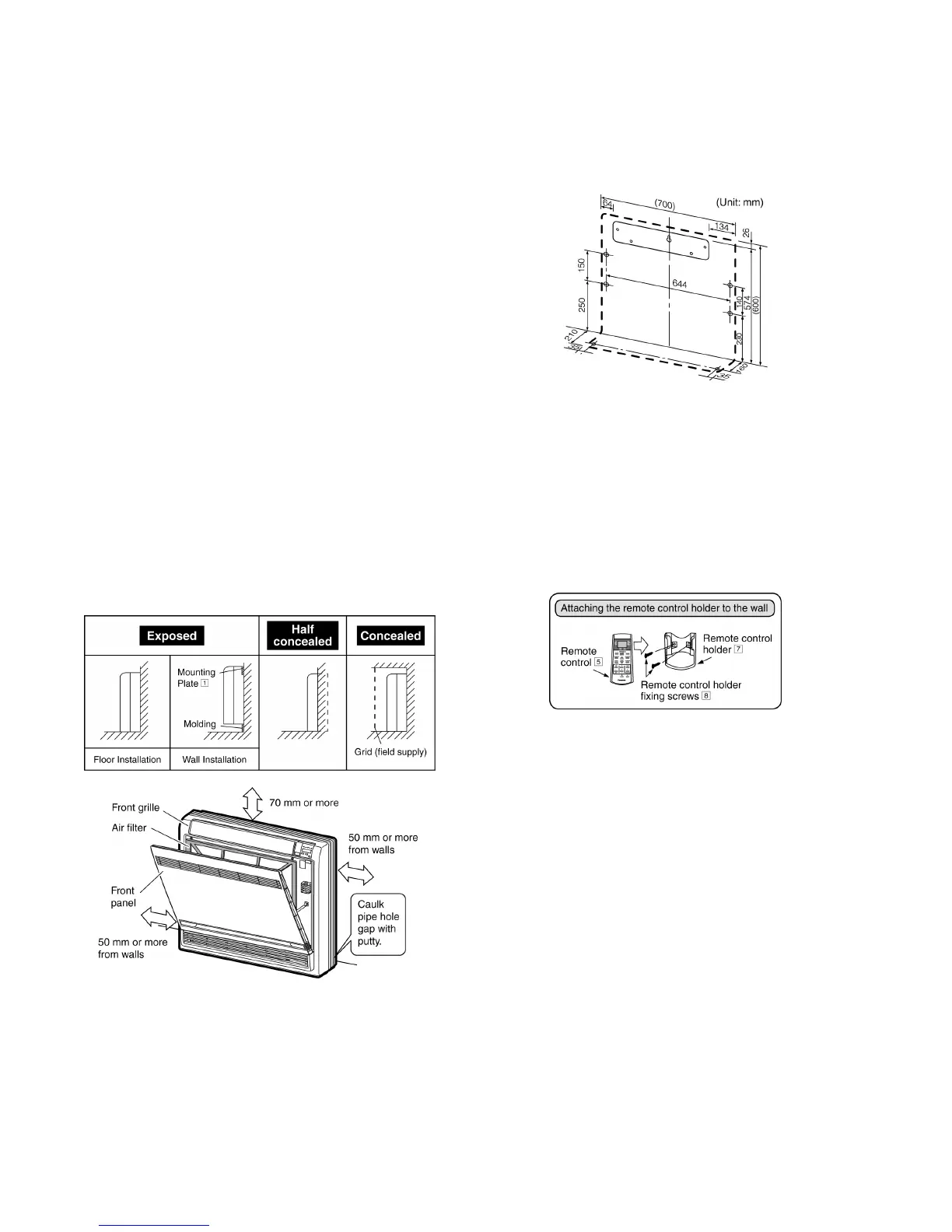

10.1.1.1 Installation diagram
The indoor unit may be mounted in any of three
styles shown here.
Location for securing the mounting panel.
10.1.1.2 Remote control
Signals may not be transmitted and received
correctly when the remote controller is operated
while in the holder.
Take the remote controller in your hand to operate
the unit.
Mount the holder in a location that is not subject to
the effects of heat (direct sunlight and stoves,
etc.).
