12.4.1 Vertical Airflow
Upper Vane Angle (°) Lower Vane Angle (°)
Operation Mode Airflow Direction
1 2 3 4 5 1 2 3 4 5
A 25 17
B 55 37
Auto with Heat
Exchanger
Temperature
C 25 17
Summer House 55 37
Heating
Manual 20 45 55 65 70 17 27 37 47 56
Auto 45 ~ 70 2 ~ 39
Cooling and Fan
Manual 20 25 50 55 70 2 7 17 27 39
Auto 45 ~ 70 2 ~ 39
Soft Dry
Manual 20 25 50 55 70 2 7 17 27 39

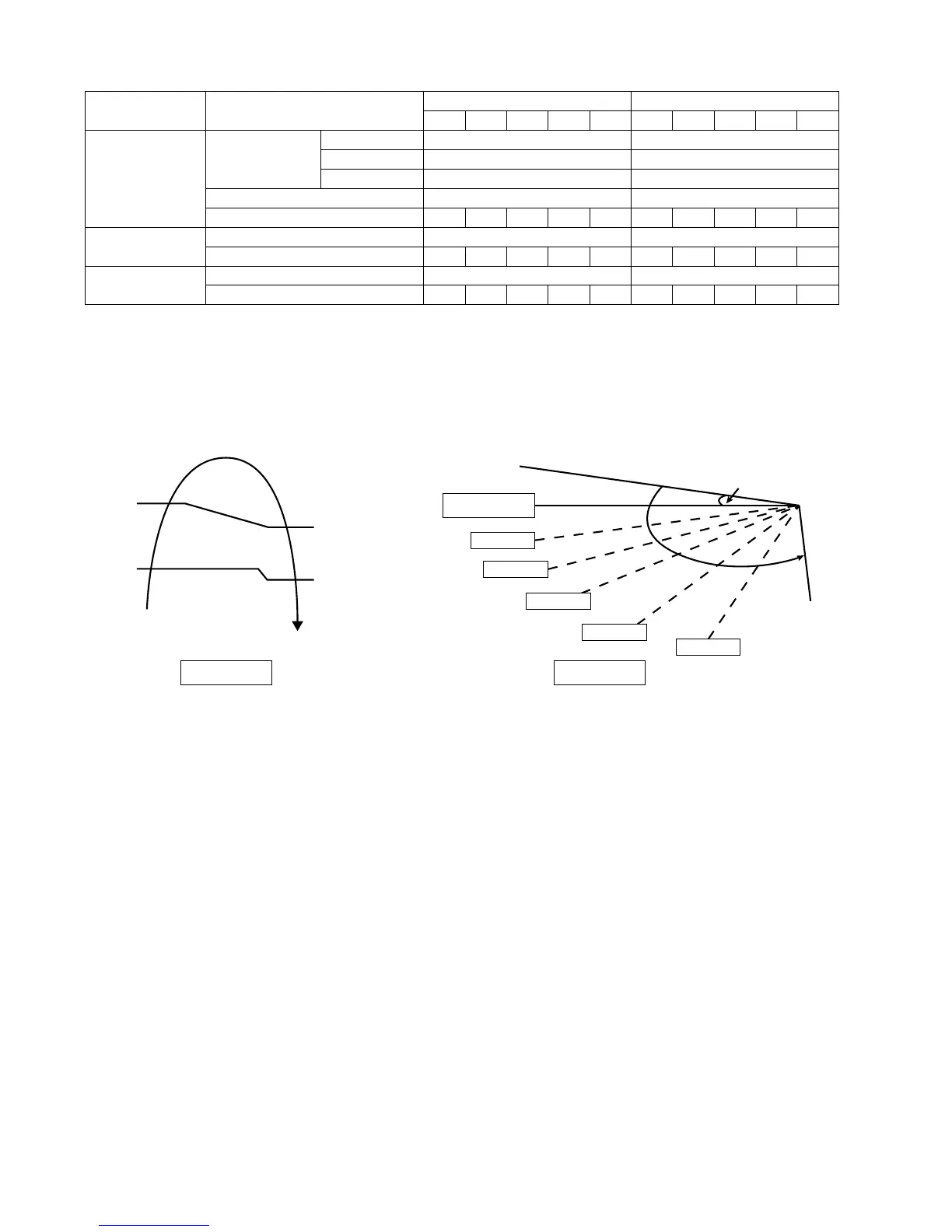

1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the
angles as stated above. For heating mode operation, the angle of the vane depands on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop. When the air conditioner is
stopped using remote control, the vane will shift to close position.
2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and
the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the
vane will shift to close position.
58°
C
50°C
Indoor Heat
Exchanger Temperature
36°
C
30°C
C
A
Figure 1
B
Figure 2
Upper vane: 60°
Lower vane: 58°
Reference point
Closed Position
Step 1
Step 2
Step 3
Step 4
Step 5
12.4.2 Horizontal Airflow
• The horizontal airflow direction louvers can be adjusted manually by hand.
12.5 Quiet operation (Cooling Mode/Cooling area of Dry Mode)
A. Purpose
To provide quiet cooling operation compare to normal operation.
B. Control condition
a. Quiet operation start condition
• When “Quiet” button at remote control is pressed.
Quiet LED illuminates.
b. Quiet operation stop condition
1. When one of the following conditions is satisfied, quiet operation stops:
a. Powerful button is pressed.
b. Stop by OFF/ON switch.
c. Timer “off” activates.
d. Quiet button is pressed again.
2. When quiet operation is stopped, operation is shifted to normal operation with previous setting.
3. When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.
4. When operation mode is changed, quiet operation is shifted to quiet operation of the new mode.
5. During quiet operation, if timer “on” activates, quiet operation maintains.
6. After off, when on back, quiet operation is not memorised.
