15.4.24 F91 (Refrigeration Cycle Abnormality)
Malfunction Decision Conditions
• During cooling, compressor frequency = Fcmax.
• During heating, compressor frequency > Fhrated.
• During cooling and heating operation, running current: 0.65A < I < 1.65A.
• During cooling, indoor intake - indoor pipe < 4°C.
• During heating, indoor pipe - indoor intake < 5°C.
Multi Models Only
o Gas shortage detection 1: A gas shortage is detected by checking the CT-detected input current value and
the compressor running frequency. During startup and operating of cooling and heating, input current <
8.78/256 (A/Hz) × compressor running frequency + 0.25.
o Gas shortage detection 2: A gas shortage is detected by checking the difference between indoor pipe
temperature and indoor intake air temperature during cooling and heating.
Malfunction Caused
• Refrigerant shortage (refrigerant leakage)
• Poor compression performance of compressor
• 2/3 way valve closed
• Detection error due to faulty indoor intake air or indoor pipe temperature sensors.

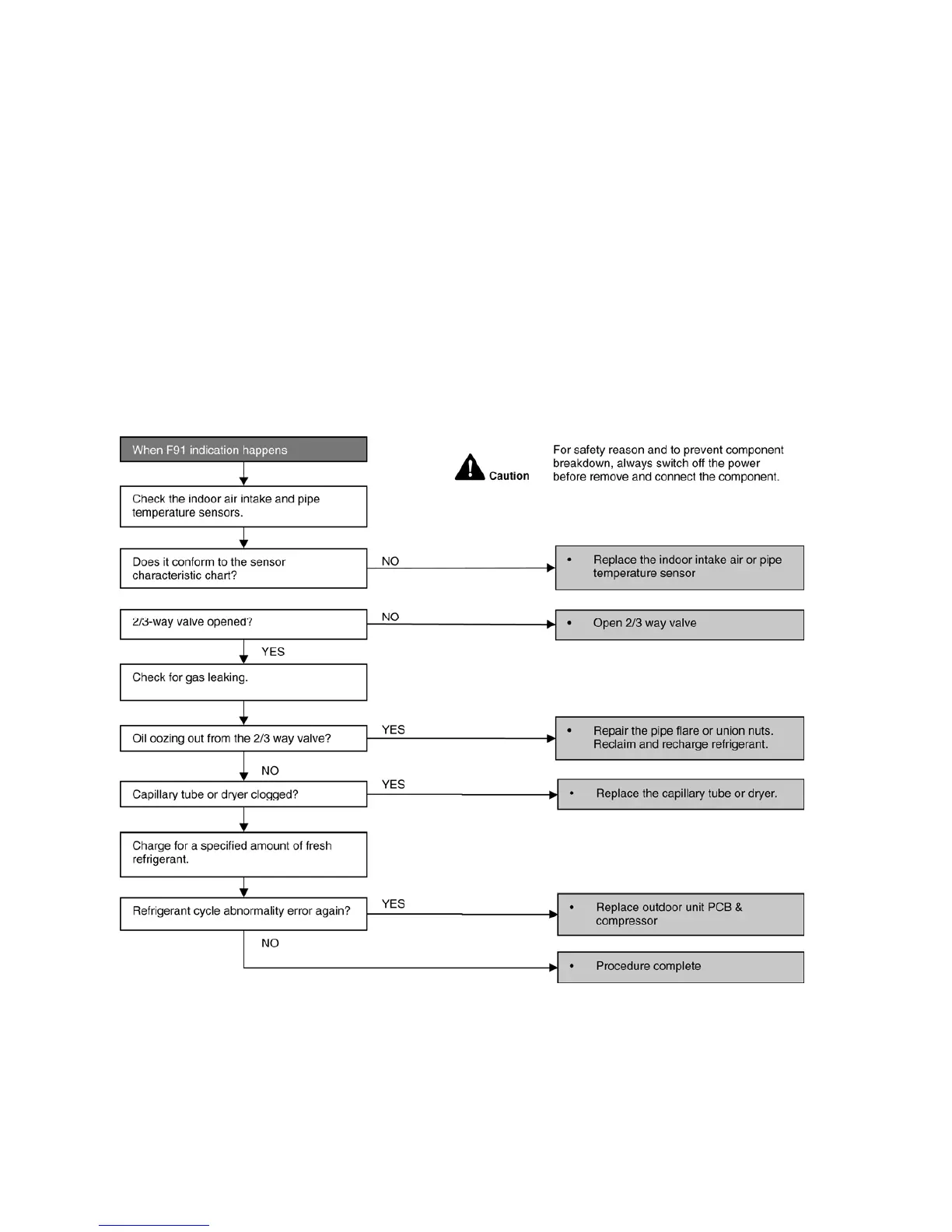

Troubleshooting
