15.4.28 F97 (Compressor Overheating)
Malfunction Decision Conditions
• During operation of cooling and heating, when compressor tank temperature data (112°C) is detected by the
compressor tank temperature sensor.
Malfunction Caused
• Refrigerant shortage (refrigerant leakage).
• 2/3 way valve closed.
• Detection error due to faulty compressor tank temperature sensor.

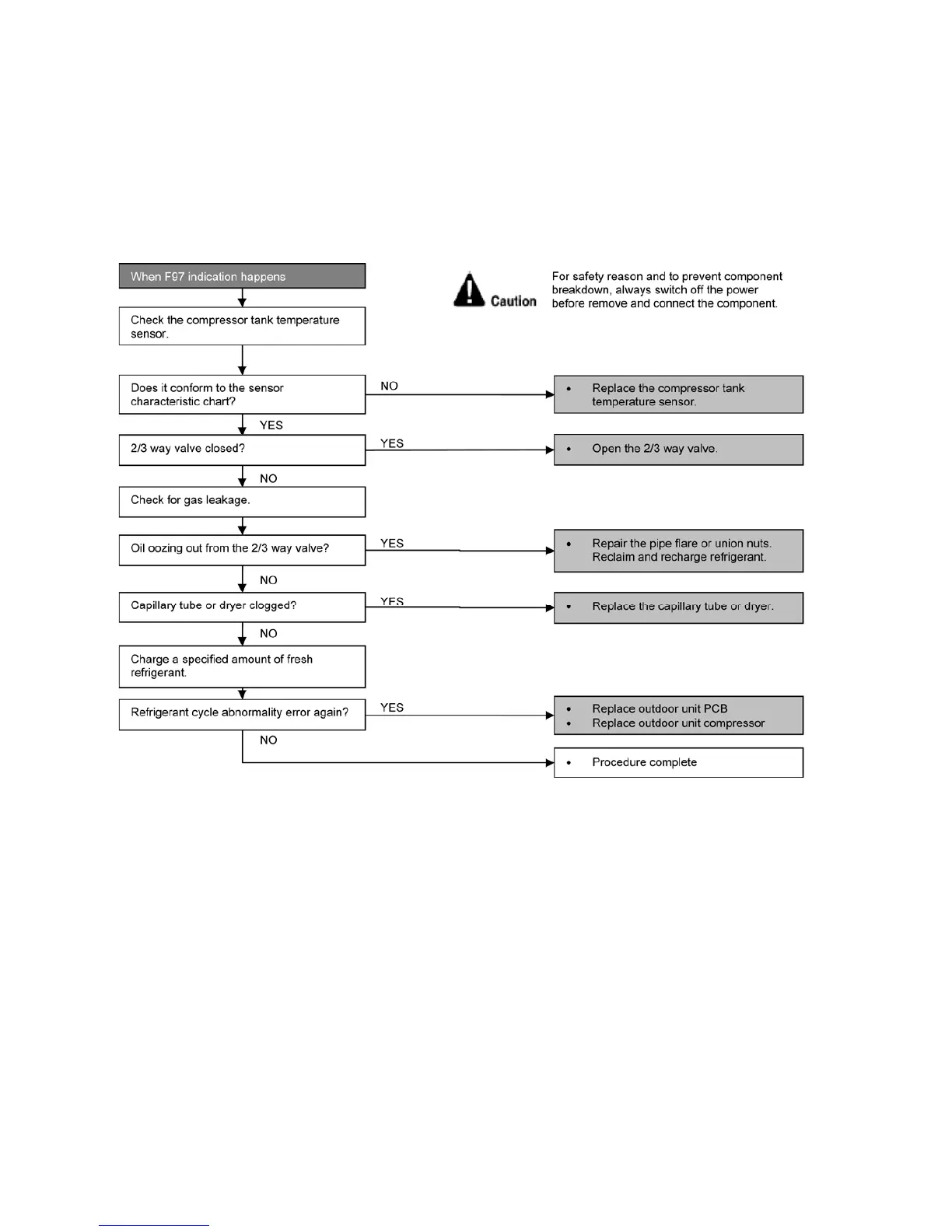

Troubleshooting
To Next Page
