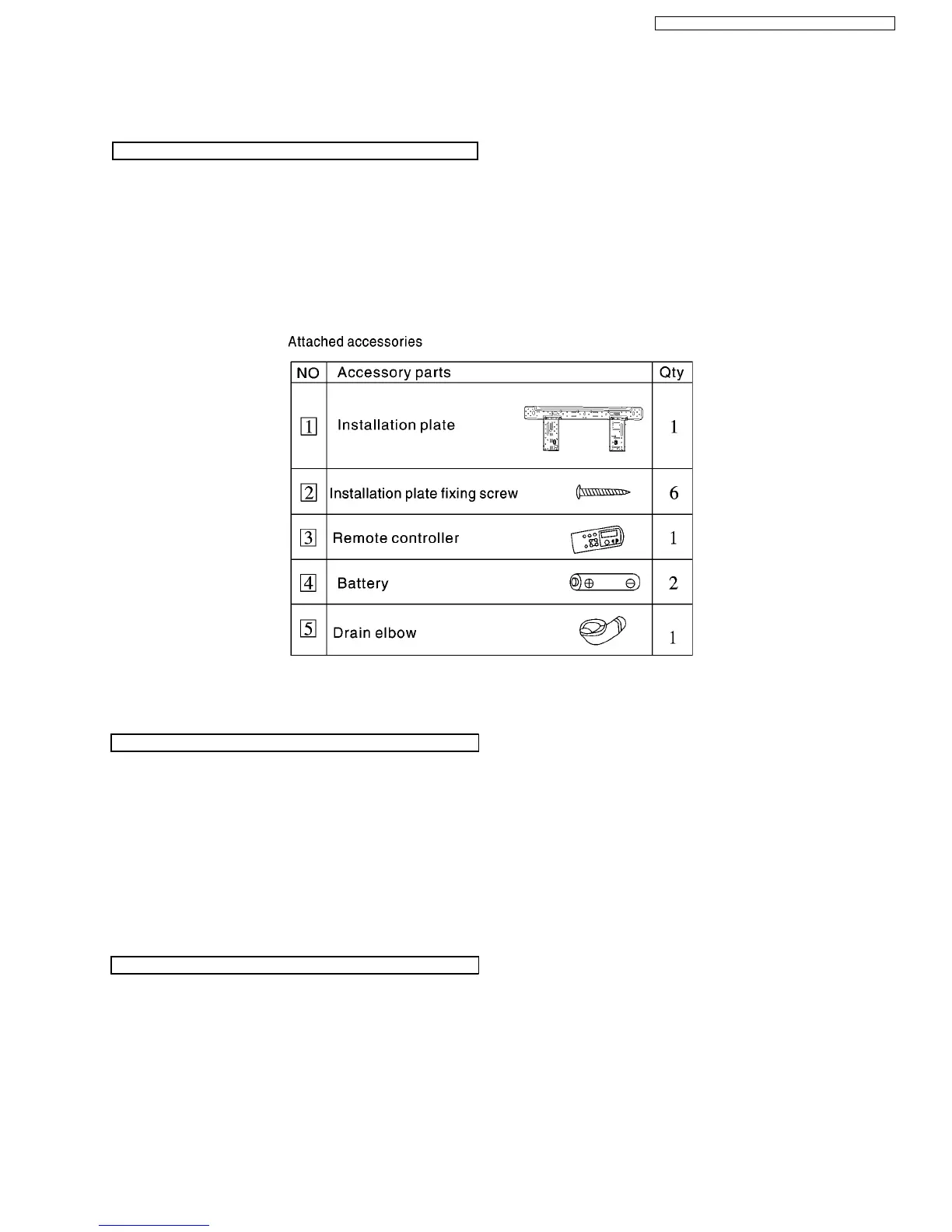

8.1. Before Installation
WARNING
INDOOR UNIT
OUTDOOR UNIT
8 Installation
■
Engage dealer or specialist for installation. If installation done by the user is defective, it will cause water leakage, electrical
shock or fire.
■
Use the specified cable(1.5mm
2
) and connect tightly for indoor/putdoor connection.
■
Power supply connection to a circuit breaker for the permanent connection. Use an approved 10A circuit breaker for the
permanent connection. It must be a double pole switch with a minimum 3 mm contact gap.
■
The unit must be earthen, or it will cause fire or electric shock.
SELECT THE BEST LOCATION
•
• •
•
There should not be any heat source or steam near the unit.
•
• •
•
There should not be and obstacles blocking the air circulation.
•
• •
•
A place where air circulation in the room is good.
•
• •
•
A place where drainage can be easily done.
•
• •
•
A place where noise prevention is taken into consideration.
•
• •
•
Do not install the unit near the door way.
•
• •
•
Ensure the spaces indicated by arrows from the wall, ceiling, fence or other obstacles.
•
• •
•
Recommended installation height for indoor unit shall be at least 2.3m.
•
• •
•
If an awning is built over the unit to prevent direct sunlight or rain, be careful that heat radiation from the condenser is not
obstructed.
•
• •
•
There should not be any animal or plant which could be affected by hot air discharged.
•
• •
•
Keep the spaces indicated by arrows from wall, ceiling, fence or other obstacles.
•
• •
•
Do not place any obstacles which may cause a short circuit of the discharged air.
•
• •
•
If piping length is over the common length, additional refrigerant should be added as shown in the table.
25
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5
