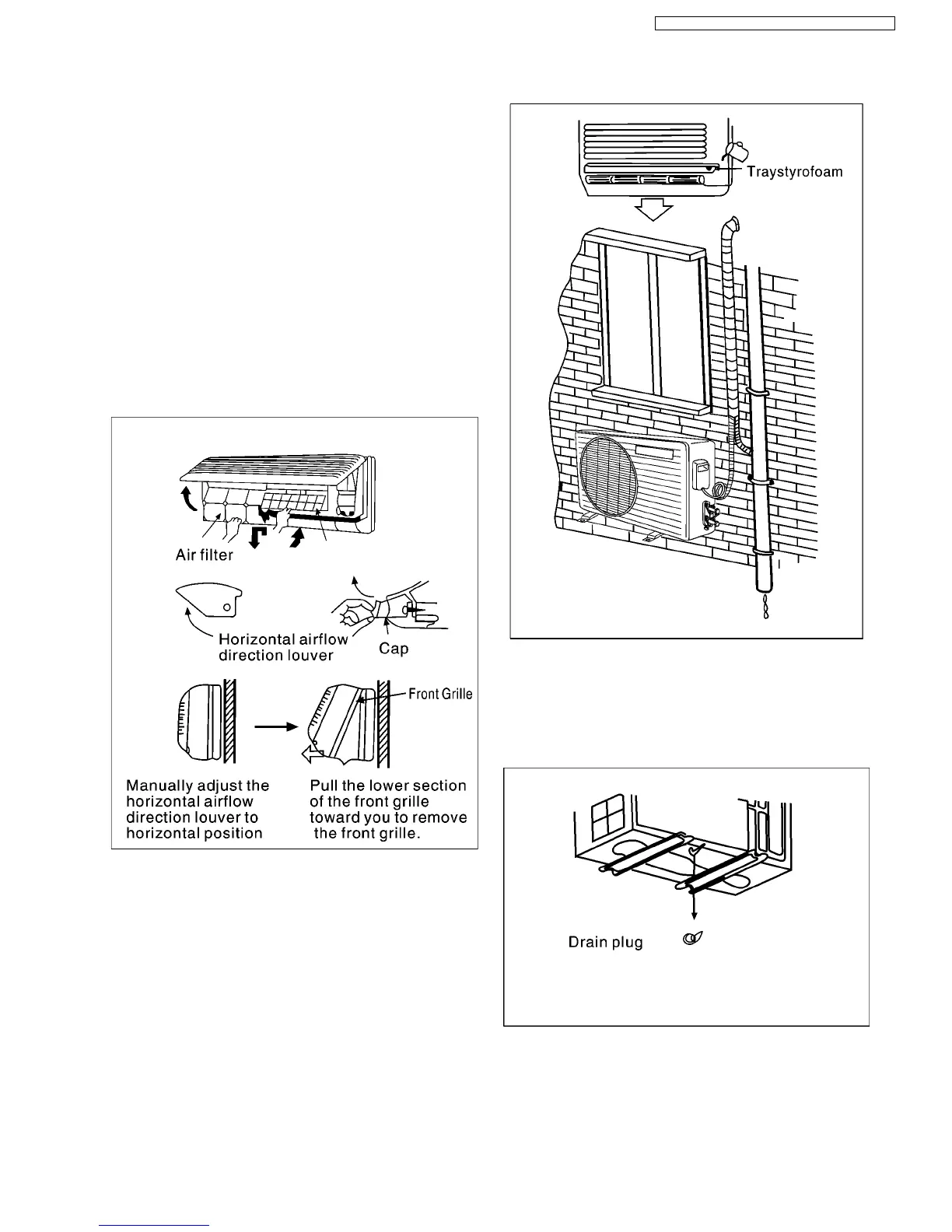

8.8.1. Checking the drainage
1. Remove the front grille from the cabinet
When removing the front grille for maintenance purposes,
etc, carry out by the following procedures.
a. Set the vertical airflow direction louver (1) to the
horizontal position.
b. Remove the two caps on the front grille as shown in the
illustration at right, and then remove the two mounting
screws.
c. Pull the lower section of the front grille toward you to
remove the front grille.
When reinstalling the front grille, first set the vertical airflow
direction louver to the horizontal position, and then carry out
by steps 3 and 2 in that order. At this time check to sure that
the fixing tabs on the top inside edge of the front grille are
securely inserted into the respective slots.
2. Checking the drainage
•
• •
•
Pout a glass of water into the drain train traystyroform.
•
• •
•
Ensure water flow out from drain hose of indoor unit.
3. Drainage control for outdoor unit
•
• •
•
If a drainage plug is applied, the outdoor unit should at
least be 3 centimeters high from the floor.
•
• •
•
If is better not to use the drainage plug if the
temperature is lower than 0°C, since icing of the
condensed water may block the water flow.
8.8. Checking the drainage and connecting the cable to indoor unit
37
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5
