8.8.2. Connecting the Indoor/Outdoor
connecting cable

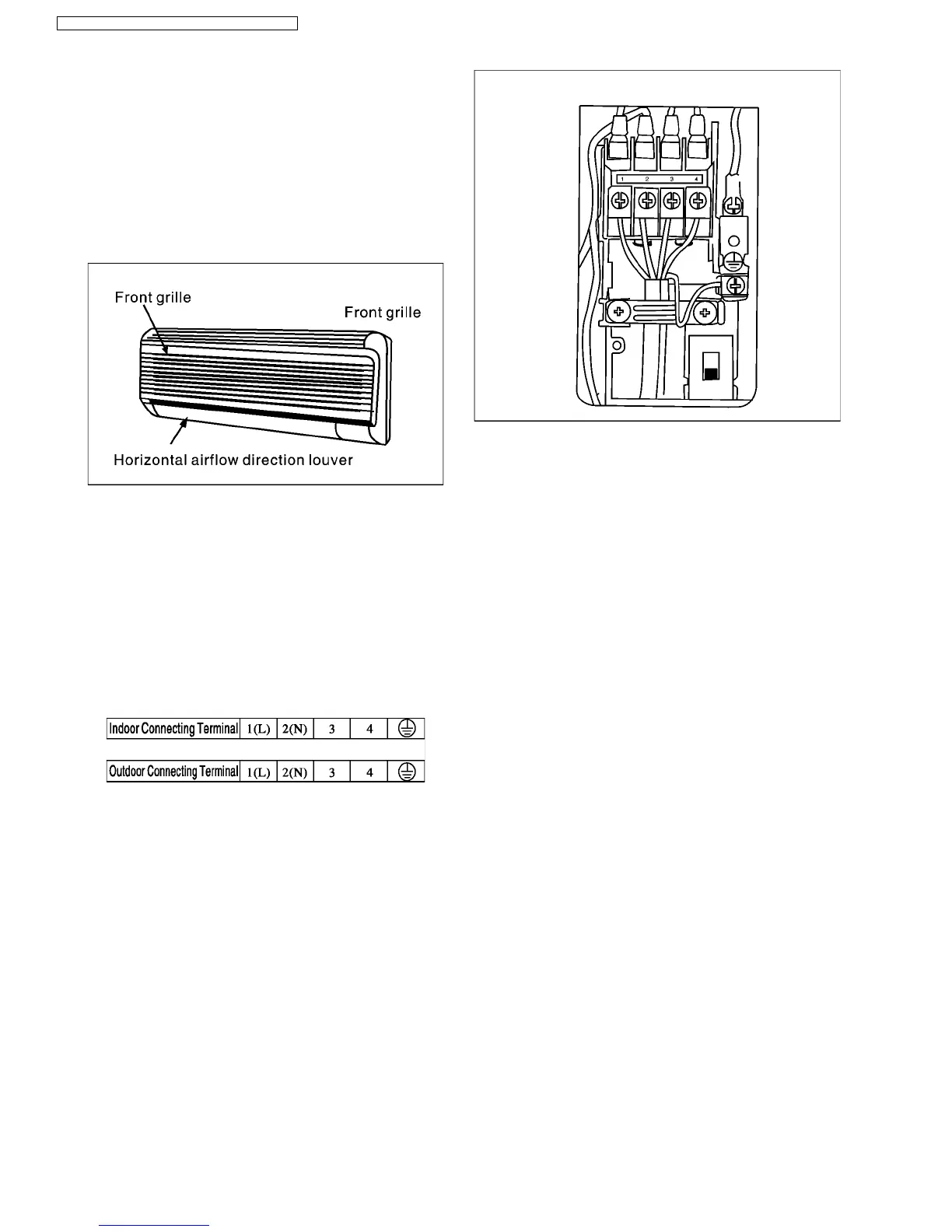

It does not need to remove the front grille when connecting the
indoor/outdoor connecting cable.
1. Open the front grille.
2. Open the cover of the control board by loosening the fixing
screw.
3. Connect the indoor/outdoor unit connecting cable to the
terminals of the indoor unit.
8.8.3. Connect the cable to the indoor
unit
Connect the locally approved cable (1.5mm
2
) to the terminals
on the control board individually according to the outdoor
connection.
•
• •
•
Ensure the colour of wires of outdoor unit and the terminal
No are the same to the indoors respectively.
•
• •
•
Secure the cable onto the board with the holder (clamper).
•
• •
•
Both the unit and the power supply socket should be
properly grounded.
