24
9. Operation Control
9.1 Cooling Operation
z Cooling Operation can be set using remote control.
z This operation is applied to cool down the room temperature to the setting temperature set on the
remote control.
z The remote control setting temperature, which takes the reading of intake air temperature sensor, can
be adjusted from 16℃ to 30℃
z During cooling operation, the compressor will stop and restart as shown in figure below:

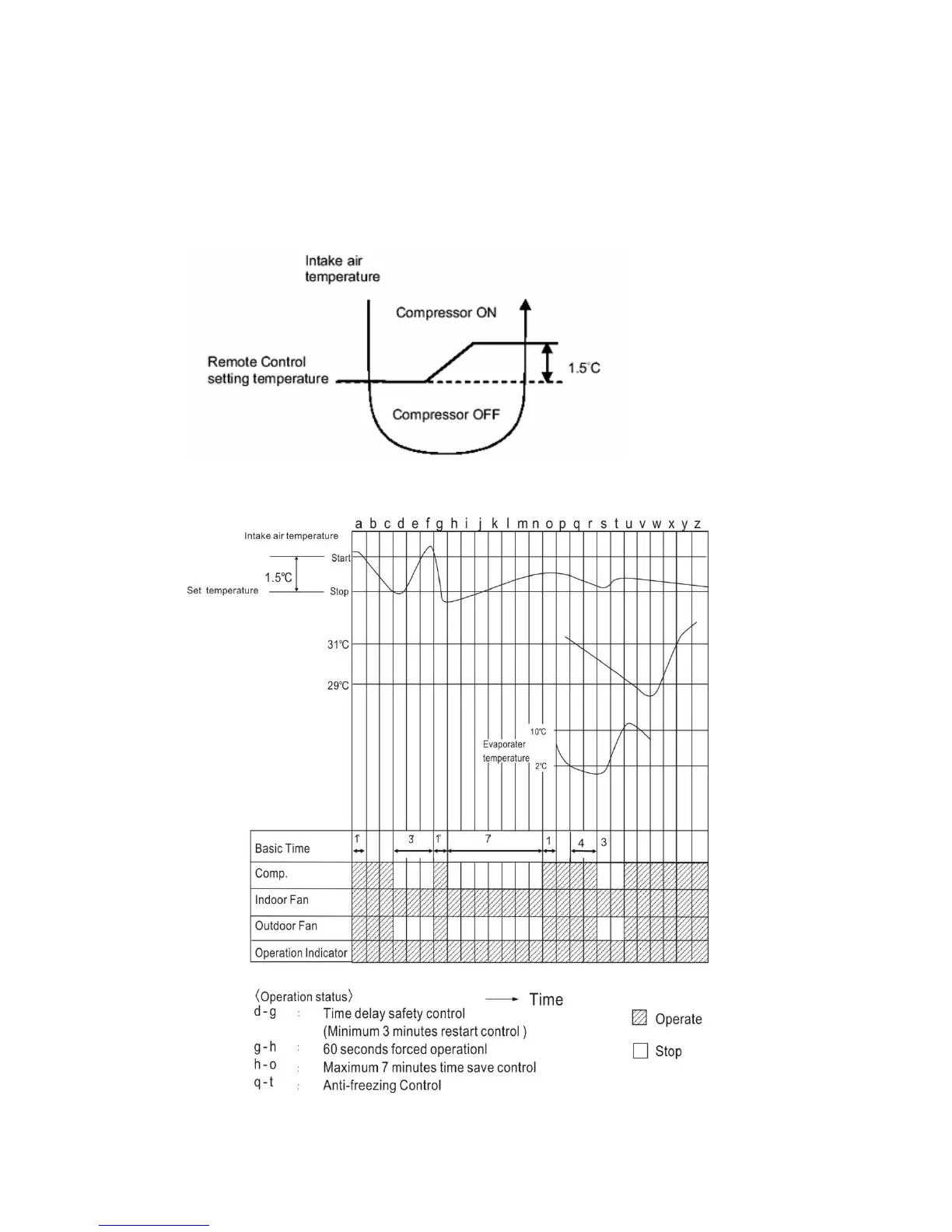

9.1.1 Time Graph for Cooling Operation.
