13. Disassembly and Assembly Instructions
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged
sufficiently before proceeding with repair work. Failure to heed this caution may result in electric shocks.

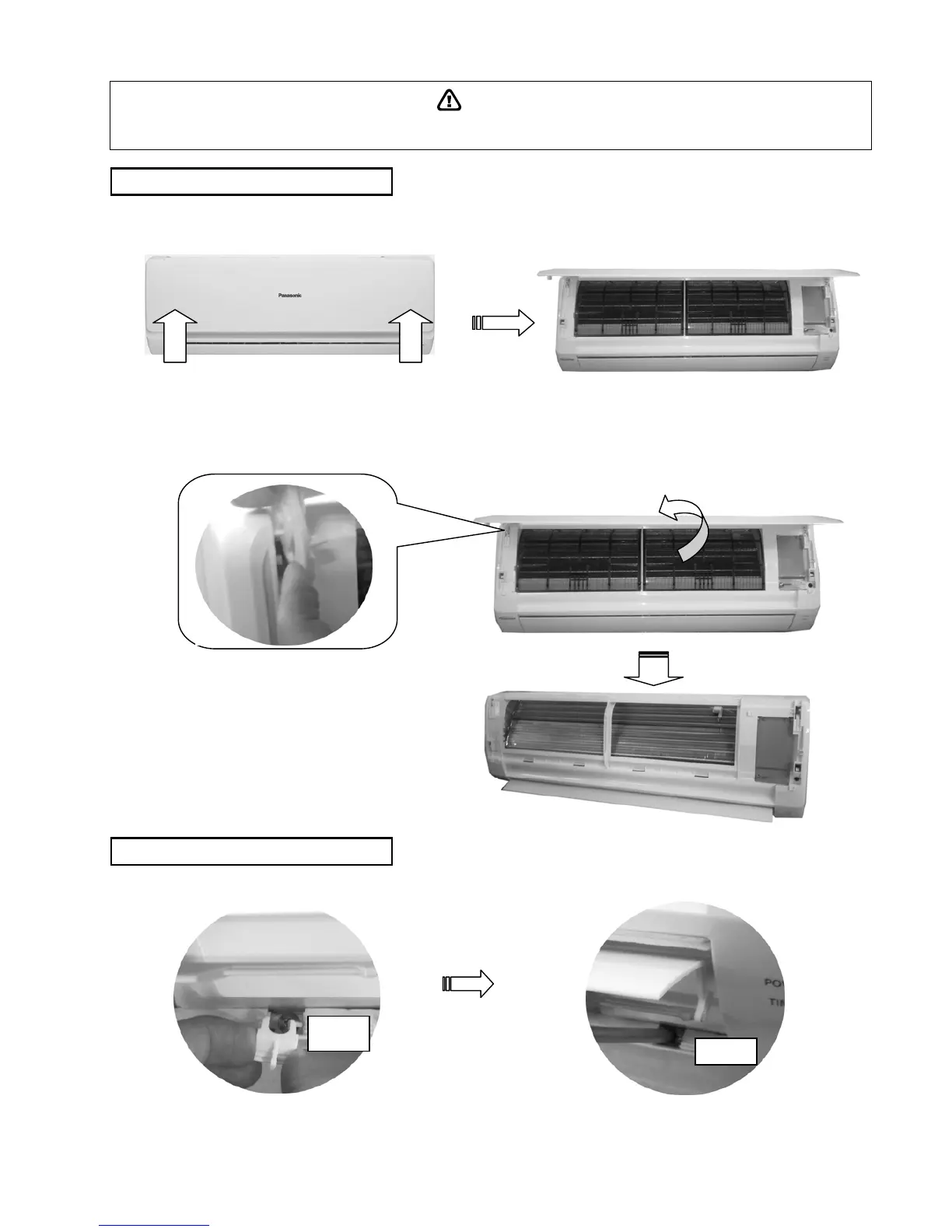

1. Open the intake grille and pull it to the horizontal position.
3. Pull up the front panel and be careful of the hooks on both sides of intake grille. Slightly press the pieces and pull
the front panel off.
1. Remove the two caps at the discharge port (right and left) and then release the two screws on both sides.
