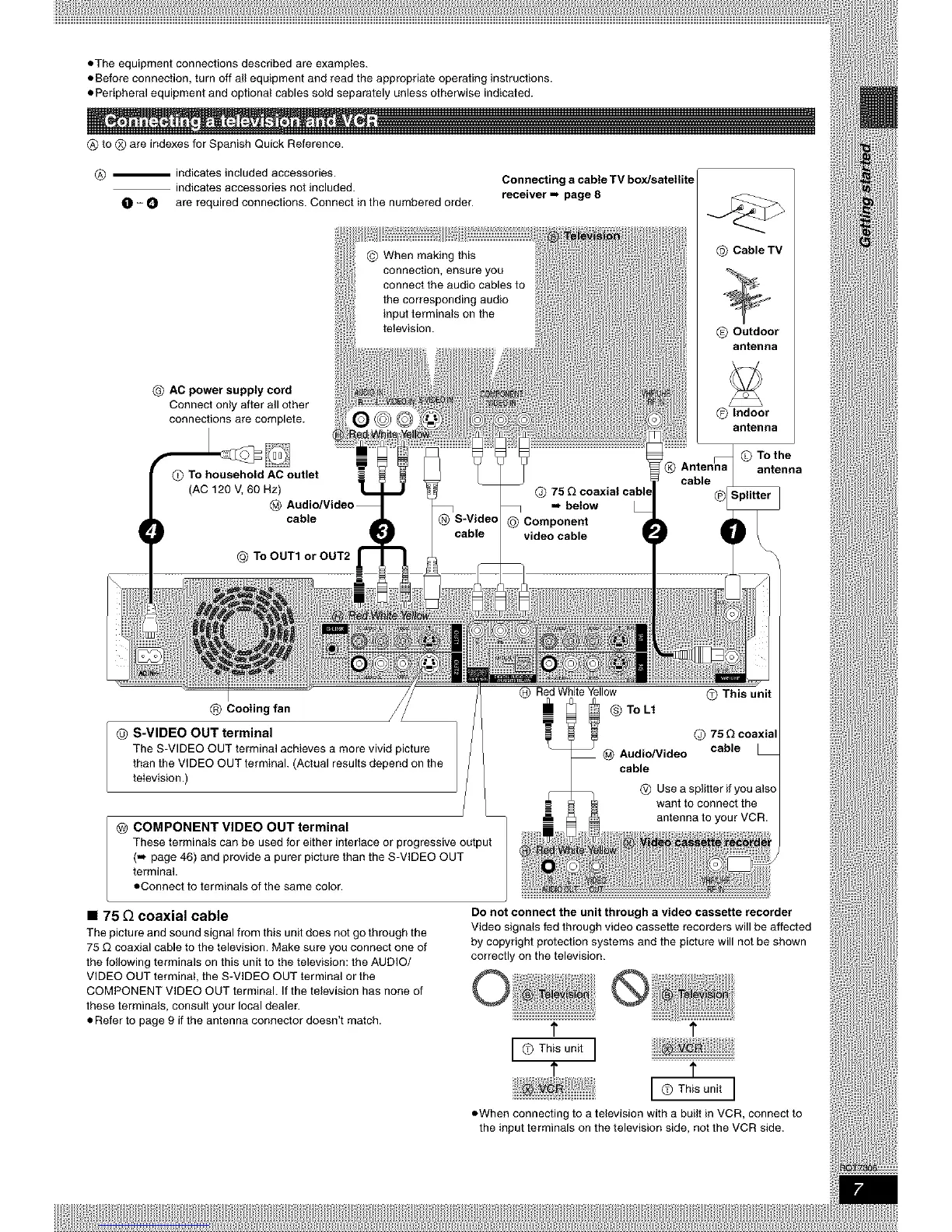

• The equipment connections described are examples.
• Before connection, turn off all equipment and read the appropriate operating instructions.
• Peripheral equipment and optional cables sold separately unless otherwise indicated.
@ to _) are indexes for Spanish Quick Reference.
indicates included accessories.
indicates accessories not included.
are required connections. Connect in the numbered order.
Connecting a cable TV box/sateIlite
receiver =* page 8
Cable TV
@ Outdoor
antenna
@ AC power supply cord
Connect only after all other
connections are complete.
@
_) Indoor
antenna
To the
antenna
Cooling fan //
Q S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more vivid picture
than the VIDEO OUT terminal. (Actual results depend on the
television.)
@ COMPONENT VIDEO OUT terminal 1
These terminals can be used for either interlace or progressive output
1
(" page 46) and provide a purer picture than the S-VIDEO OUT
terminal.
oConnect to terminals of the same color.
• 75 £2 coaxial cable
The picture and sound signal from this unit does not go through the
75 Q coaxial cable 1othe television. Make sure you connect one of
the following terminals on this unit to the television: the AUDIO/
VIDEO OUT terminal, the S-VIDEO OUT terminal or the
COMPONENT VIDEO OUT terminal. If the television has none of
these terminals, consult your local dealer.
• Refer to page 9 if the antenna connector doesn't match.
Red White Yellow O This unit
cable
Do not connect the unit through a video cassette recorder
Video signals fed through video cassette recorders will be affected
by copyright protection systems and the picture will not be shown
correctly on the television.
T
I ®ThisunitI
T
T
I ®ThisunitI
eWhen connecting to a television with a built in VCR, connect to
the input terminals on the television side, not the VCR side.
To Next Page
