8
VQT2J39

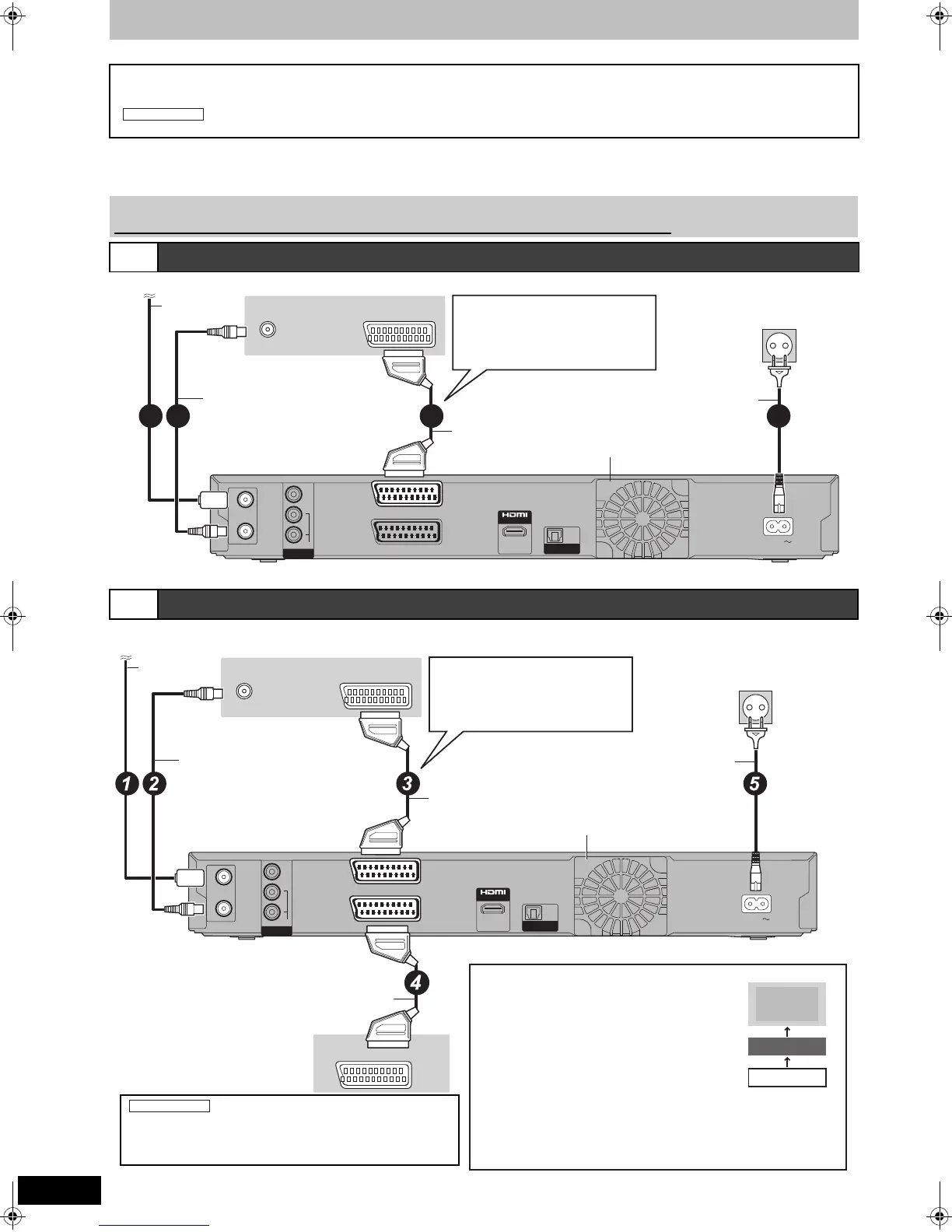

STEP 1 Connection
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Select the connection pattern that matches your environment from pattern A–B. Confirm connections not listed below with your
dealer.
≥Refer to “Additional connections” (> 66) for connection using other terminals and connection with other equipment.
Using a 21-pin Scart cable
≥You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television (> 34).
≥You can enjoy high-quality viewing by connecting the unit to an RGB compatible television (> 79).
“AV1 Output” in the Setup menu (> 63)
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off
[approx. 0.3 W (“Power Save in Standby” is
activated and “RF OUT ( Aerial Signal )” is set to “Off”.)]
A
Connecting a television
B
Connecting a television and digital satellite receiver
Required setting
RF
IN
RF
OUT
AV1
(TV)
AV2
(EXT)
AC IN
AUDIO
VIDEO
L
R
OUT
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
OPTICAL
AV OUT
VHF/UHF
RF IN
AV
4
3
2
1 2
To the aerial Television’s rear panel
Aerial cable
RF coaxial cable
(included)
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Fully wired 21-pin
Scart cable
AC mains lead
(included)
Connect only after all other
connections are complete.
Cooling fan
Connecting a terminal other
than the 21-pin Scart terminal
(> 9, 66)
RF
IN
RF
OUT
AV1
(TV)
AV2
(EXT)
AC IN
AUDIO
VIDEO
L
R
OUT
(PCM/BITSTREAM)
DIGITAL AUDIO OUT
OPTICAL
AV OUT
VHF/UHF
RF IN
AV
2
AV
To the aerial Television’s rear panel
Aerial cable
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Fully wired 21-pin
Scart cable
AC mains lead
(included)
Connect only after all other
connections are complete.
Digital satellite receiver’s rear
panel
21-pin Scart cable
Cooling fan
Connecting a terminal other
than the 21-pin Scart terminal
(> 9, 66)
RF coaxial cable
(included)
Connect the unit directly to the television
If you connect the unit through an AV selector or
video cassette recorder to the television, video
signal will be affected by copyright protection
systems and the picture may not be shown
correctly.
Television
VCR
This unit
DO NOT
≥When connecting to a television with a built-in VCR
Connect to the input terminals on the television side if there are both
television and VCR input terminals.
“AV2 Input” setting in the Setup menu (> 64)
Required setting
DMREX773EC-VQT2J39_eng.book 8 ページ ２０１０年１月１４日 木曜日 午後１時３１分
