Functional Description

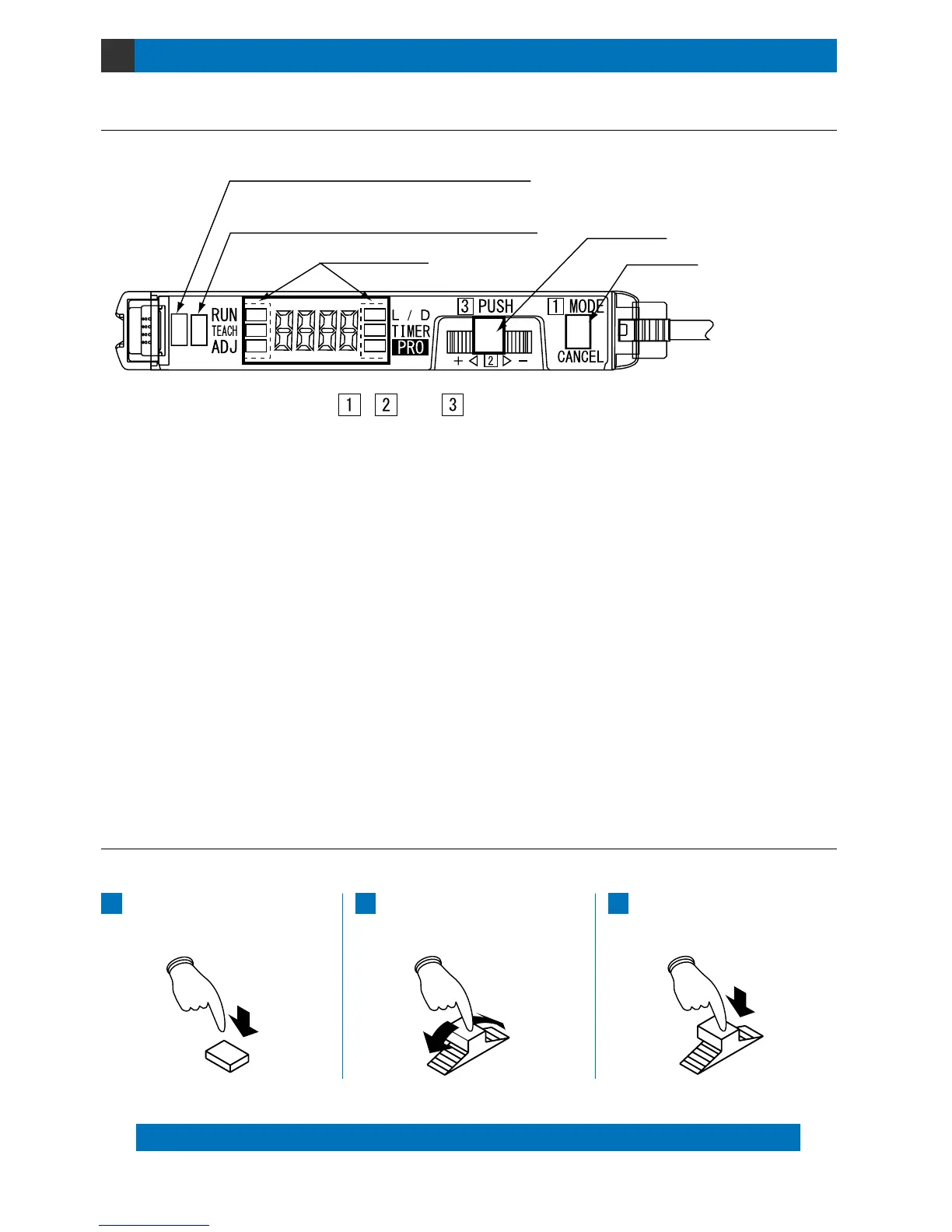

1-1. Functional Description
1-2. Setting Procedure
1
1 Operation indicator (Orange) … FX-301(P)(-HS) : Lights up when output is ON.
Output 1 operation indicator (Orange)
…
FX-305(P) : Lights up when output 1 is ON.
2 Stability indicator (Green) …
Output 2 operation indicator (Orange)
…
3 MODE indicator … RUN (Green) :
TEACH (Yellow) :
ADJ (Yellow) :
L/D (Yellow) :
TIMER (Yellow) :
PRO (Yellow) :
4 Jog switch … Turning this switch in the ‘’ or ‘’ direction, allows different items to be viewed for
selection and pressing the switch then confirms the selected setting.
5 MODE key …
This key is used to select operating modes and to cancel settings during the configuration process.
The [MODE key] and [Jog switch] are utilized to configure various settings.
Cancel: If the [MODE key] is pressed, the unit will return to the previous settings status, immediately before the
[Jog switch] was pressed (the selected setting has been confirmed).
Selection and confirmation of settings are performed according to the order of the numbers, as shown on the amplifier: 1, 2 and 3.
Press the [MODE key]
(mode selection / cancellation)
1
Turn the [Jog switch] in the ‘’ or ‘’ direction
(chooses setting for selection)
2
Press the [Jog switch]
(confirms the selected setting)
3
1FX-301(P)(-HS): Operation indicator (Orange)
FX-305(P): Output 1 operation indicator (Orange)
2FX-301(P)(-HS): Stability indicator (Green)
FX-305(P): Output 2 operation indicator (Orange)
3MODE indicator
4Jog switch
5MODE key
, and are in the correct order for selecting settings.
Lights up during normal sensing operation.
When this indicator lights up, the ‘threshold value’ can be set by
utilizing either ‘2-level teaching’, ‘limit teaching’ or ‘full-auto teaching’.
When the FX-305(P) is in window comparator mode, the ‘threshold
value’ can be set by either ‘1-level teaching’, ‘2-level teaching’ or
‘3-level teaching’ whenever this indicator lights up.
When this indicator lights up, fine adjustment of the ‘threshold value’
can be performed.
When this indicator lights up, the output operation can be set.
When this indicator lights up, timer operation can be set.
(Timer period can be set in PRO1 mode.)
When this indicator lights up, further advanced functions, such as the
copying and memory functions, can be set.
FX-301(P)(-HS) :
Lights up when the incident light intensity is great enough for stable operation.
FX-305(P) : Lights up when output 2 is ON.
1
