Direction of communication
The digital display will blink
twice to confirm the setting.
Press the MODE key
3 times or keep it
pressed for 2 sec. or
more.
8-2. Setting Contents Copy Function [Except FX-301(P)-HS]
By utilizing the optical communications function, the settings information from the operating amplifier can be
copied to other connected units. (Except for data bank contents) In addition, copying will not be carried out for
FX-301(P) and FX-305(P) units in which the optical communication function has been locked.
Note) It is not possible to communicate setting information between FX-301(P), FX-301B/G/H(P) and FX-305(P)
units using the setting condition copy function. Therefore, if units of different models need to be connected
together, then units of the same model should be connected side-by-side.
Please refer to p.43 The optical communications function for the direction of optical communication.
1 Press the [MODE key] 5 times to select ‘PRO mode’.
2 Turn the [Jog switch] 4 times toward the
‘’ direction, to
select ‘PRO4 mode’.
3 Press the [Jog switch] to enter the ‘setting condition copy
setting’ state.
4 If the [Jog switch] is pressed, the digital display will blink.
5If the [Jog switch] is pressed while ‘ ’ is blinking, the
digital display will scroll (twice) and the settings information
will be copied. Then ‘ ’ will blink twice, confirming the
setting.
However, for amplifiers in which the optical communi-
cations settings change function has been locked,
‘ ’ will blink twice.
* When communication error has occurred;
FX-301(P): ‘ ’ will be displayed.
FX-305(P
): ‘ ’ will be displayed.
Check that all amplifier units are properly connected to
each other.
6 Press the [MODE key] 3 times or keep it pressed for 2 sec.
or more, the amplifier will return to ‘RUN mode’ (normal
sensing operation).

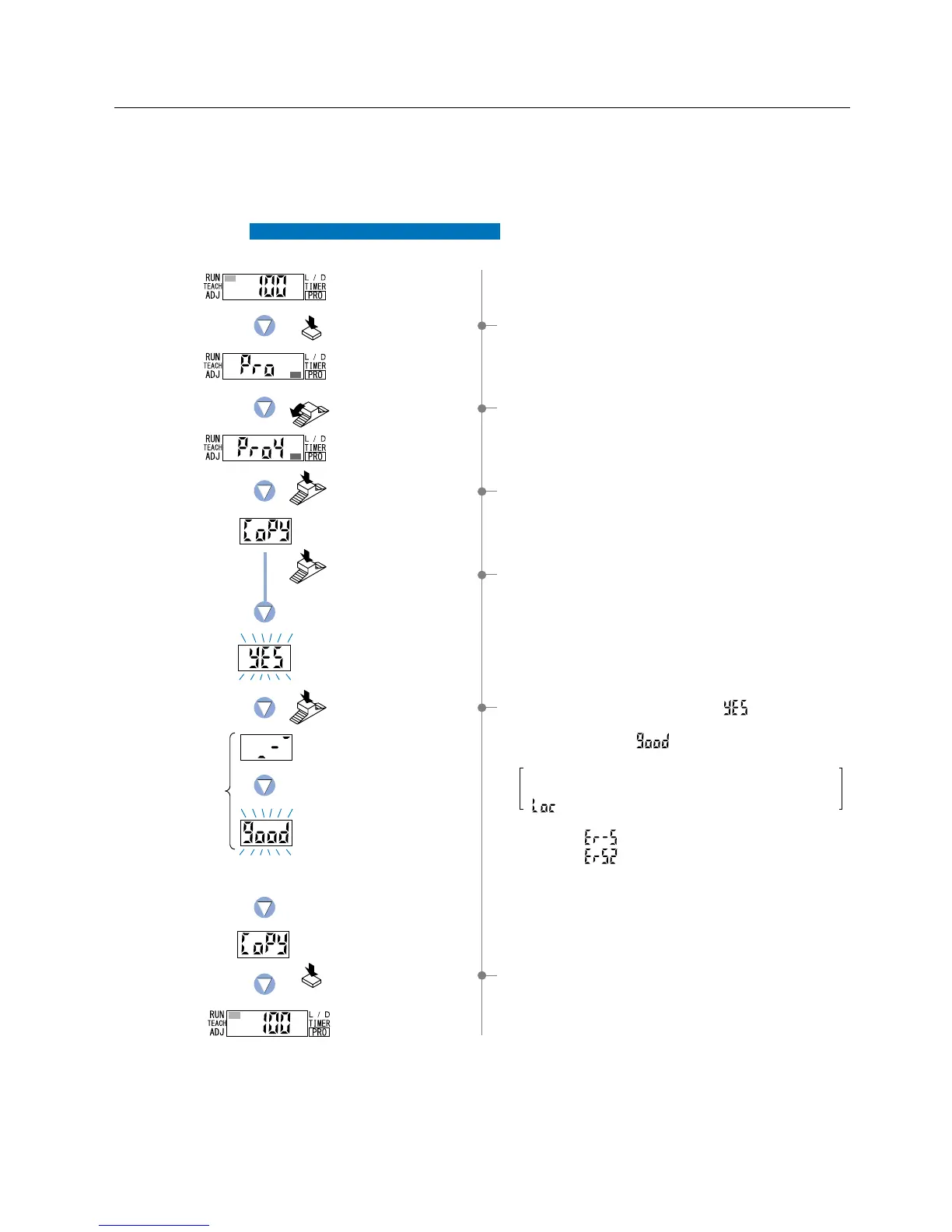

Press the MODE key
5 times.
Press the
Jog switch.
Press the
Jog switch.
Press the
Jog switch.
The digital display
will scroll (twice).
Turn the Jog switch
4 times toward the
‘’ direction.
Also displayed on
amplifiers on which
copy is done
