: Shift Function

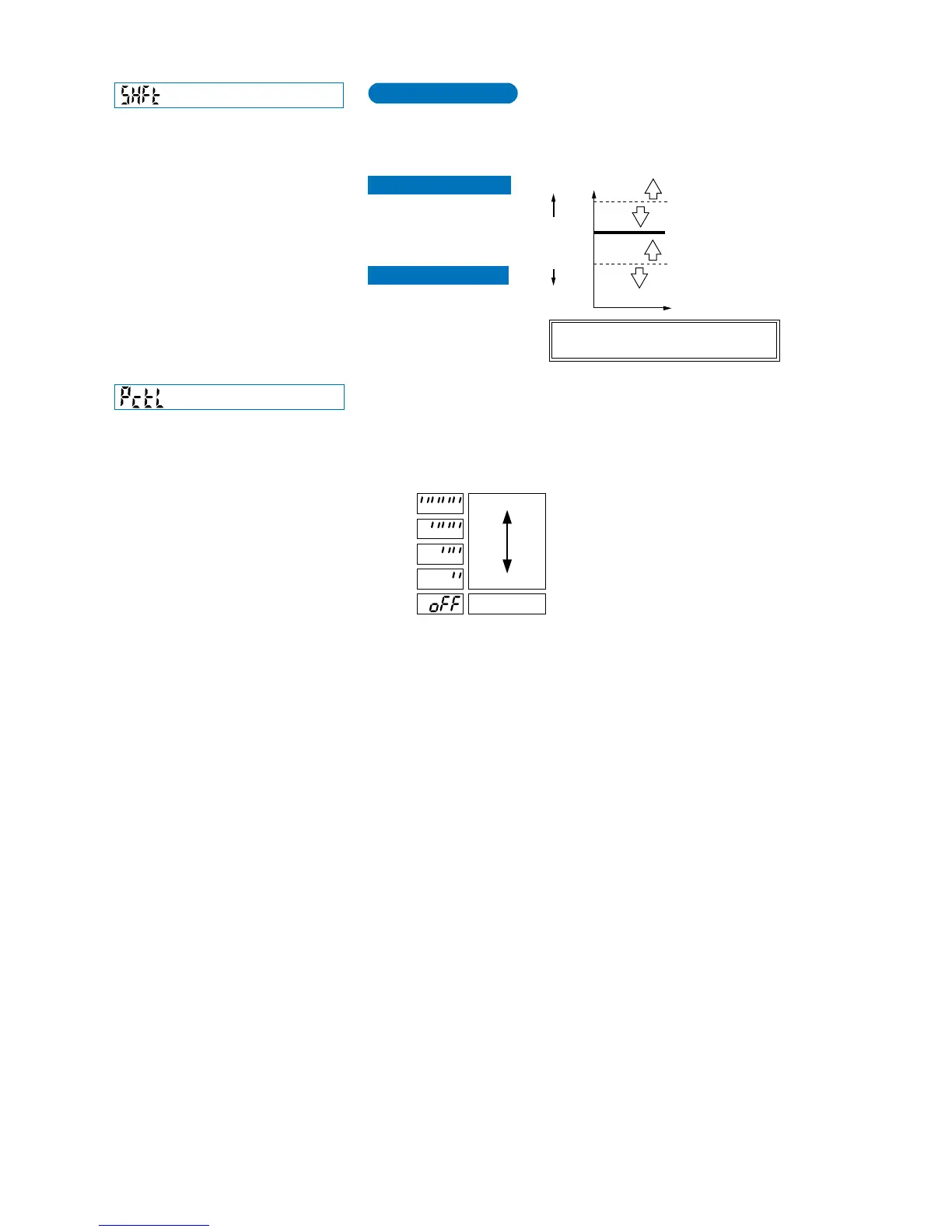

Shifts the ‘threshold value’ by a certain percentage increment during ‘limit teaching’.
(The percentage adjustment is variable from 0 to 80 %, in increments of 5 %).
* The factory setting is ‘15 %’.
Refer to p.33 for setting procedure
15 % higher when using reflective
type fiber (factory setting)
The threshold value is variable from
0 to 80 % (in increments of 5 %).
0
100%
15 % lower when using thru-beam
type fiber (factory setting)
If the threshold value is
shifted toward the ‘
’ direction,
minute and severe detections
become possible.
If the threshold value is
shifted toward the ‘
’ direction,
minute and severe detections
become possible.
Threshold value
When using reflective type fiber
When using thru-beam type fiber
HighLow
Limit Teaching
+
+
Emission halt
Light emitting amount Hi
Light emitting amount Lo
Level 4
Level 3
Level 2
Level 1
:
Light Emitting Amount Selection Function
Refer to p.34 for setting procedure
Changes the light emitting amount selection setting. The levels that can be
selected will vary depending on the response time.
• FX-301(P) FAST, STD, LONG: 4-levels H-SP: 3-levels S-D: 2-levels
• FX-301(P)-HS FAST, STD, LONG: 4-levels H-SP, S-D: 2-levels
• FX-305(P) FAST, STD, STDF, LONG, U-LG: 4-levels H-SP: 3-levels
Not incorporated
FX-301(P)(-HS): in H-SP and S-D mode
FX-305 : in H-SP mode
FX-301(P) : in S-D mode
FX-301(P)-HS : in H-SP and S-D mode
