3.2.2. Lens Unit (Interchangeable Lens: H-FS014042)
3.2.2.1. About Lens Main Block Unit (Ref. 208)
1. The purpose of Vol. 2 manual for this lens unit is introduce the part number of the "LENS Unit" (Ref. 200) to only the person
who has access permitting of Vol.2 manuals, to avoid unnecessary exchange of the "LENS Unit" (Ref. 200).
LENS MAIN BLOCK UNIT (Ref. 208) is not supplied due to difficulty of the transportation issue (Fragile, Dust-free packing),
and requires critical lens adjustments.
Therefore, any needs of the "LENS MAIN BLOCK UNIT" (Ref. 208), carefully confirm its performance in advance.
2. Once "LENS MAIN BLOCK UNIT" (Ref. 208) is confirmed as defective, place order "LENS Unit" (Ref. 200) and replace REAR
FRAME UNIT (Ref. 207), to maintain Serial number of owner's original lens.

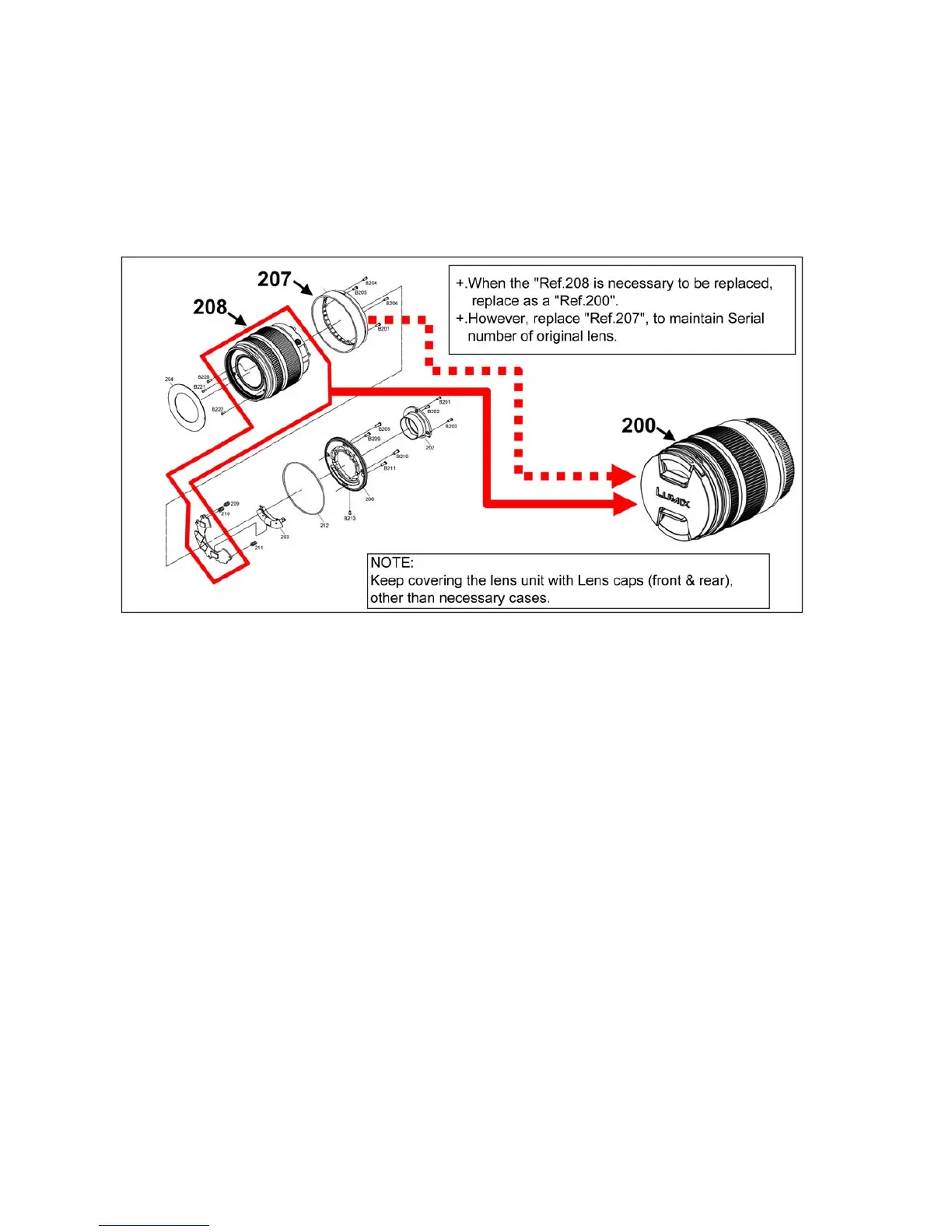

Fig. S3
