Overview
Instructions for operations are generally described using the
remote control in these operating instructions.

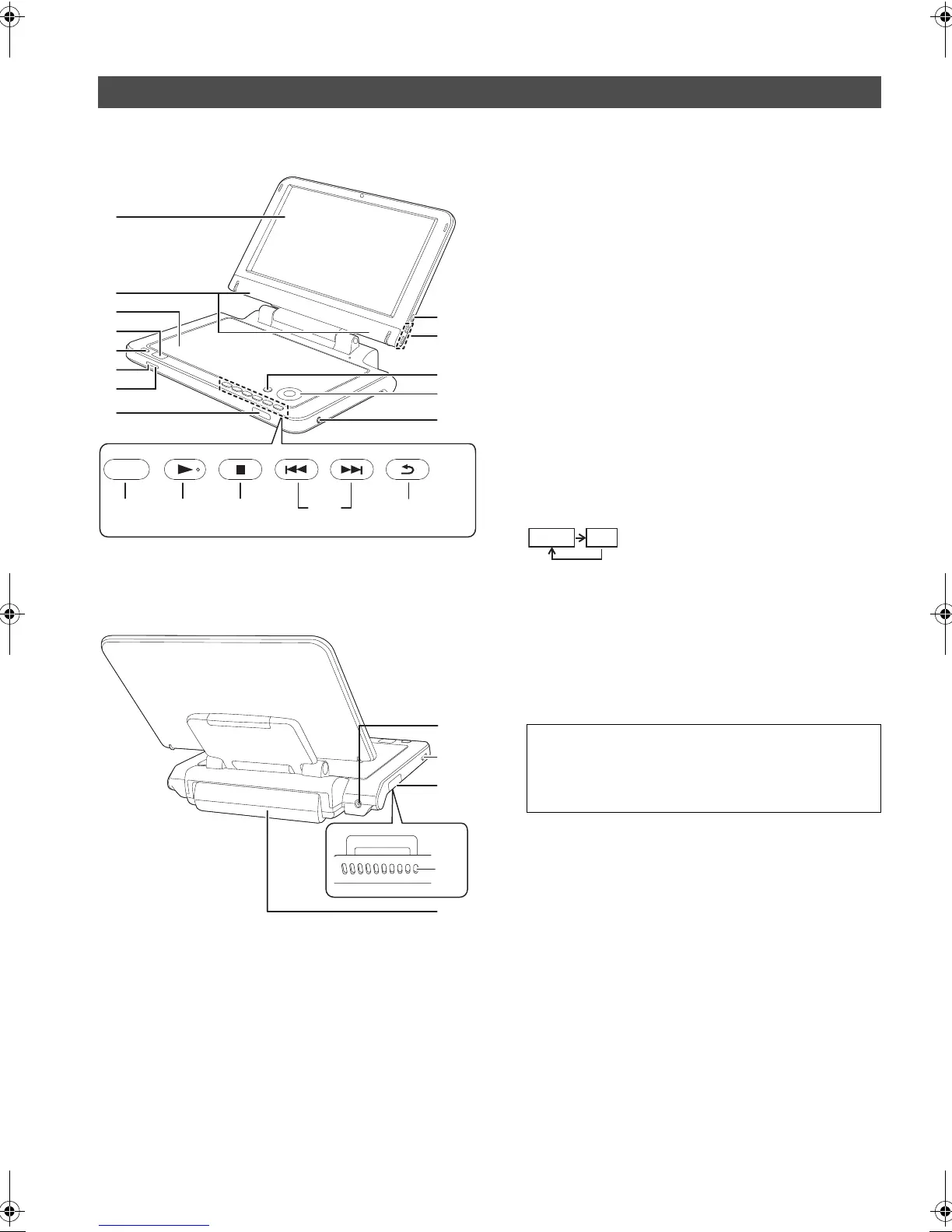

Front View
Rear View
1 LCD screen
2 Speaker
3 Disc lid
4 Open the disc lid
5 Turn the unit on and off (> 14)
6[Í] indicator (> 12)
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the
unit is turned on.
7 [CHARGE] indicator (> 12)
While recharging the battery pack, this indicator lights up.
8 Remote control signal sensor (> 9)
9 Change the screen settings (> 15)
10 Adjust the volume (> 16)
11 Show the OPTION menu
12 Selection/OK
13 Headphone terminal [Ë]
(‡ 3.5 mm stereo mini jack)
14 Switch the media to playback
It will switch every time it is pressed.
15 Playback (> 16)
16 Stop (> 18)
17 Skip title numbers, etc. (> 18)
18 Return to previous screen
19 DC IN terminal (> 12)
20 HDMI AV OUT terminal (> 25)
21 SD card slot (> 15)
22 Exhaust opening
23 Battery pack (supplied)
The Unit
1
2
8
3
4
5
7
6
9
10
11
12
13
14 15 16 17 18
DISC/SD RETURN
≥ To select: Press up, down, left, or right ([3, 4, 2, 1])
≥ To enter: Press [OK]
About the exhaust opening:
Do not block the exhaust opening on the side, or use in a
place that will block the exhaust opening.
The heat will build up internally, and may cause a fire or
deformation of the outer casing.
DISC SD
