Getting started
5
VQT3B75
Control reference guide

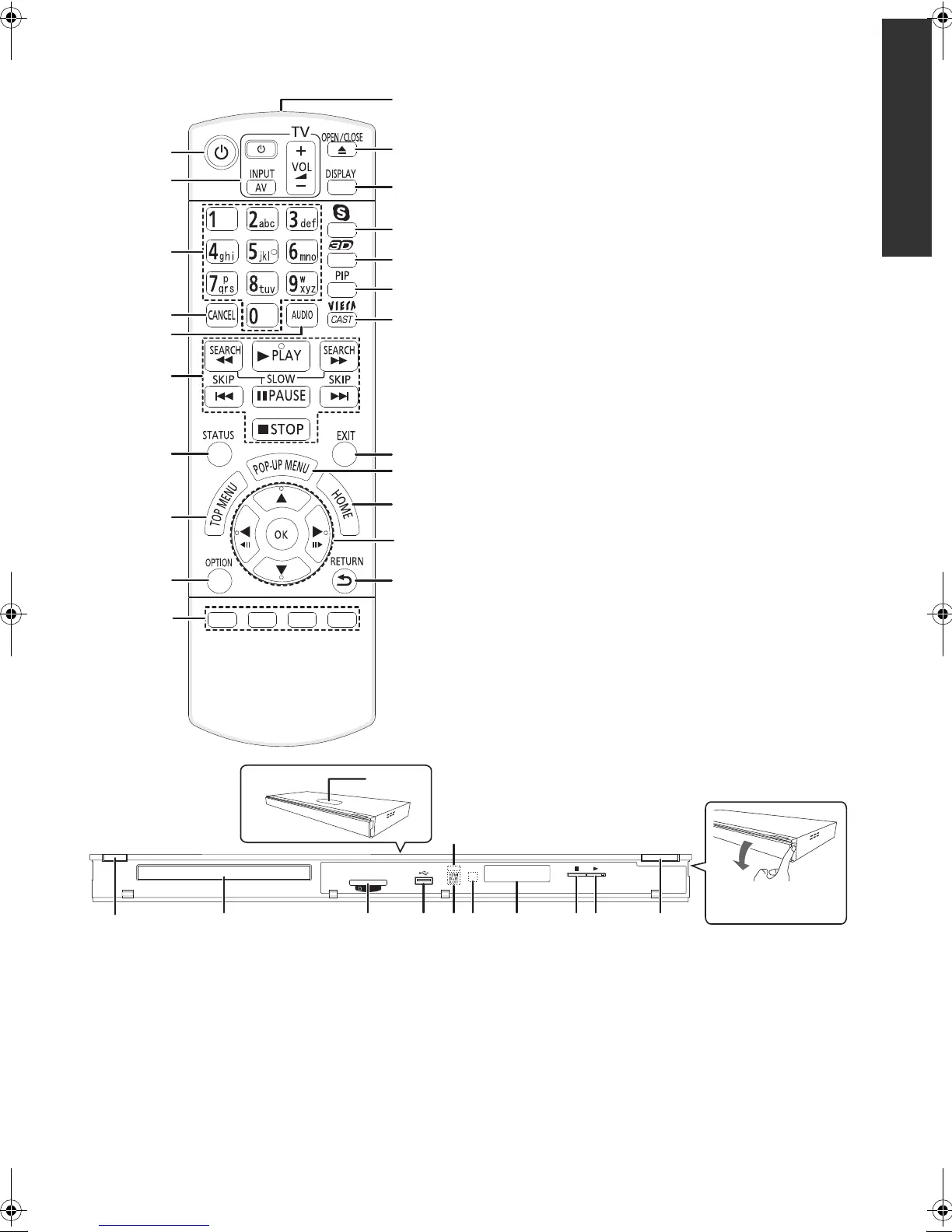

1 Turn the unit on and off
2 TV operation buttons (> 16)
You can operate the TV through the unit’s remote control.
[Í TV] : Turn the television on and off
[AV] : Switch the input select
[ijVOL] : Adjust the volume
3 Select title numbers, etc./Enter numbers or characters
(> 24)
4Cancel
5 Select audio (> 18)
6 Basic playback control buttons (> 17, 18)
7 Show status messages (> 17)
8 Show Top menu/DIRECT NAVIGATOR (> 17)
9 Show OPTION menu (> 18)
10 Coloured buttons (red, green, yellow, blue)
These buttons are used when;
≥ Operating a BD-Video disc that includes Java
TM
applications (BD-J).
≥ Operating contents of VIERA CAST. (> 24)
11 Transmit the remote control signal
12 Open or close the disc tray (> 16)
CAUTION
Do not place objects in front of the unit. The disc tray may
collide with objects when it is opened, and this may cause
malfunction.
13 Show playback menu (> 28)
14 Start up a video communication (> 24)
15 Set up 3D effects (> 21)
16 Switch on/off Secondary Video (Picture-in-picture)
(> 19)
17 Displays the Home screen of the VIERA CAST (> 24)
18 Exit the menu screen
19 Show Pop-up menu (> 17)
20 Show HOME menu (> 17)
21 Selection/OK, Frame-by-frame (> 18)
22 Return to previous screen
1 Standby/on switch (Í/I) (> 13)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2Disc tray (> 16)
3SD card slot (> 16)
4USB port (> 16)
5 [BDT310] : V.OFF LED (Video off LED)
It is possible to set the LED to turn on/off. (> 32)
6CALL LED (> 24)
The LED will light up when this unit receives incoming call
etc. of the video communication.
7 Remote control signal sensor
Distance: Within approx. 7 m
Angle: Approx. 20e up and down, 30e left and right
8 Display
9Stop (> 18)
10 Start play (> 17)
11 Open or close the disc tray (> 16)
12 [BDT310] [BDT210] : Touch Free Sensor (> 34)
The LED will light up when TOUCH-FREE SENSOR is
activated.
Rear panel terminals (> 8–12)
1
2
3
6
4
5
7
8
19
10
9
20
18
22
21
16
15
17
14
13
12
11
SD CARD
ヤモロロ
1
2 3 4
12
5
6
7 8 9 10 11
Pull to flip down
the front panel.
