Panasonic DMR-E75VP - 12.4. (VHS) Self-Diagnosis History Memory Function; 12.4.1. (VHS) Condition for memorizing of the self-diagnosis history

Service
Number
Contents Contents of Indication on
minute
Contents of Indication on
second
Remarks
7 Manual
mechanism
operation
Real time mechanism
position
Real time ordering for the
Motors
Press the STOP key, and
then the cassette tape is
unloaded.
0L: EJECT position
02: DOWN position
03: RREW position
04: LOAD position
05: REV position
06: PLAY position
07: POFF position
08: STOP_R position
09: STOP_F position
-: FF/REW position
- : Intermediate between
each positions
0*, 2*: CYL off,
CAP off
1*:CYL off,
CAP on (fwd)
8*, A*: CYL on,
CAPoff
9*: CYL on,
CAP on (fwd)
B*:CYL on,
CAP on (rev)
*0: Motor off
*1: Loading
*2: Unloading
*3: Break (Load + Unload)

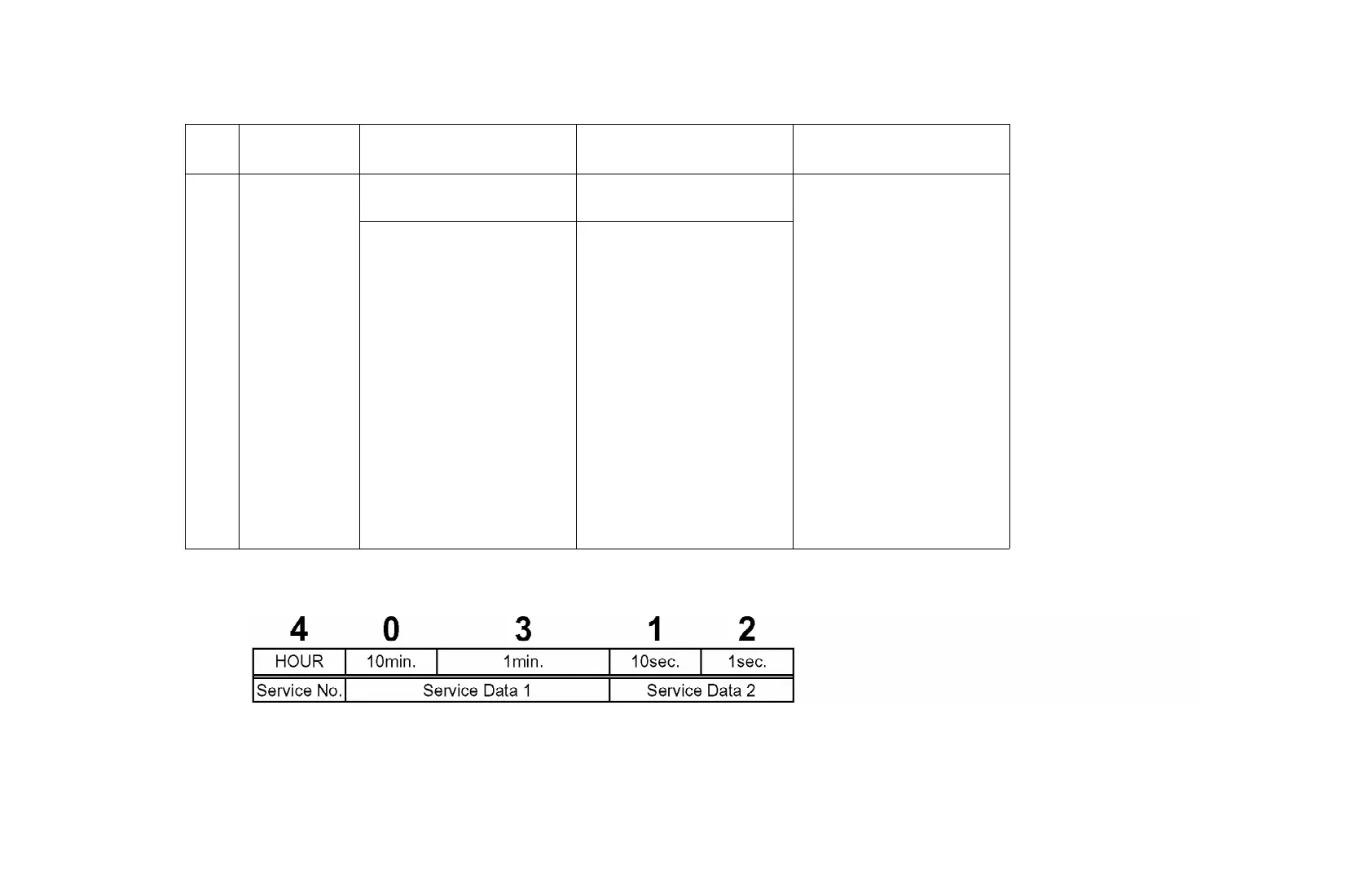

12.3.2. Example of FIP
12.4. (VHS) Self-Diagnosis History Memory Function
12.4.1. (VHS) Condition for memorizing of the self-diagnosis history
1. The self-diagnosis result and the supplementary data are the condition memorized just as an
64
