Panasonic DMR-E75VP - 13.7. Rear Panel & Fan Motor

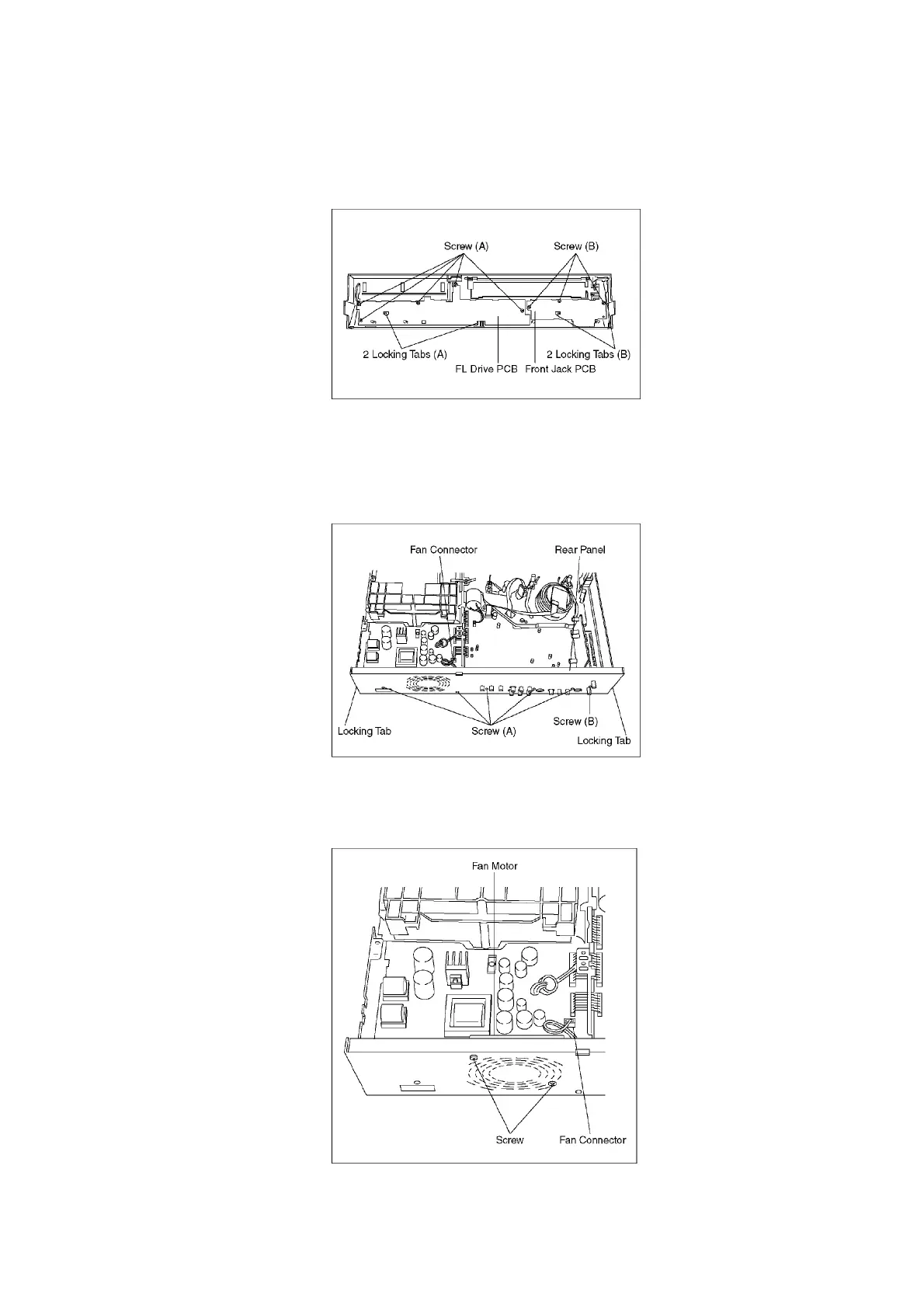

2. Remove one 3 screws (B), and unlock 2 Locking Tabs (B) to
remove Front Jack P.C.B.
13.7. Rear Panel & Fan Motor
1. Remove 5 Screws (A) and Screw (B) and Fan Connector.
2. Unlock 2 Locking Tabs to remove Rear Panel with Fan Motor.
13.7.1. Only Fan Motor
1. Remove 2 Screws and Fan Connector to remove Fan Motor.
44
