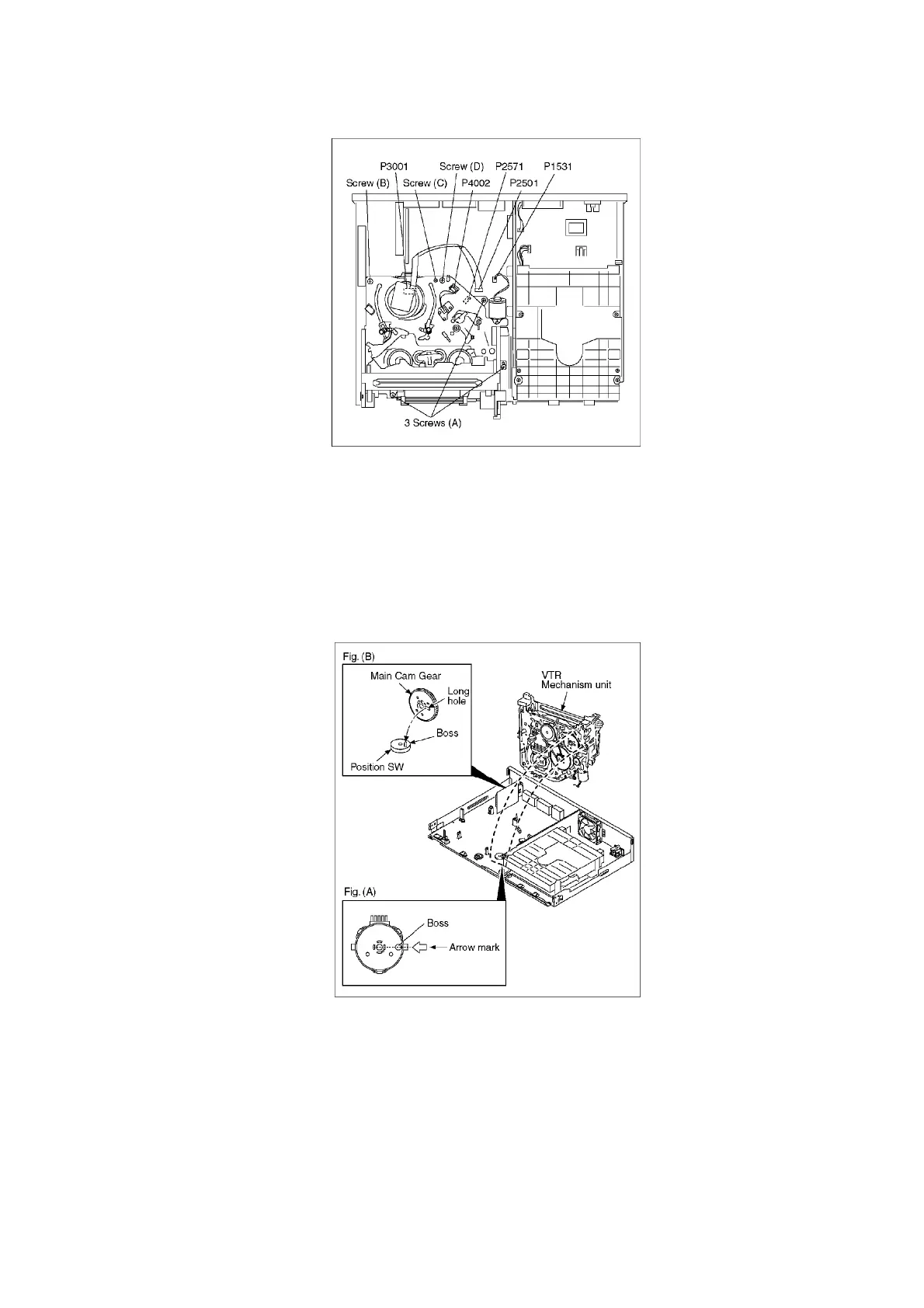

13.9.1. Caution for attaching VTR Mechanism Unit
1. Because Position SW should be set to "Eject Position", refer to
fig.(A) and set the position switch so that the boss and arrow mark
come on a straight line.
2. Attach VTR Mechanism Unit so that Boss of Position SW is put
into long hole of Main Cam Gear, refer to Fig. (B).
13.10. Main P.C.B.
1. Disconnect 4 Connectors.
2. Remove 2 Screws (A), and remove Main P.C.B.
46
