∫Examples of equipment you can connect to this unit’s terminals
∫When the unit is not to be used for a long time
To save power, unplug it from the household AC outlet. This unit
consumes a small amount of power even when it is turned off
(approx. 2 W).
∫Do not connect the unit through a video cassette
recorder
Video signals fed through video cassette recorders will be affected
by copyright protection systems and the picture will not be shown
correctly on the TV.
≥When connecting to a TV with a built in VCR, connect to the input
terminals on the TV side, not the VCR side.

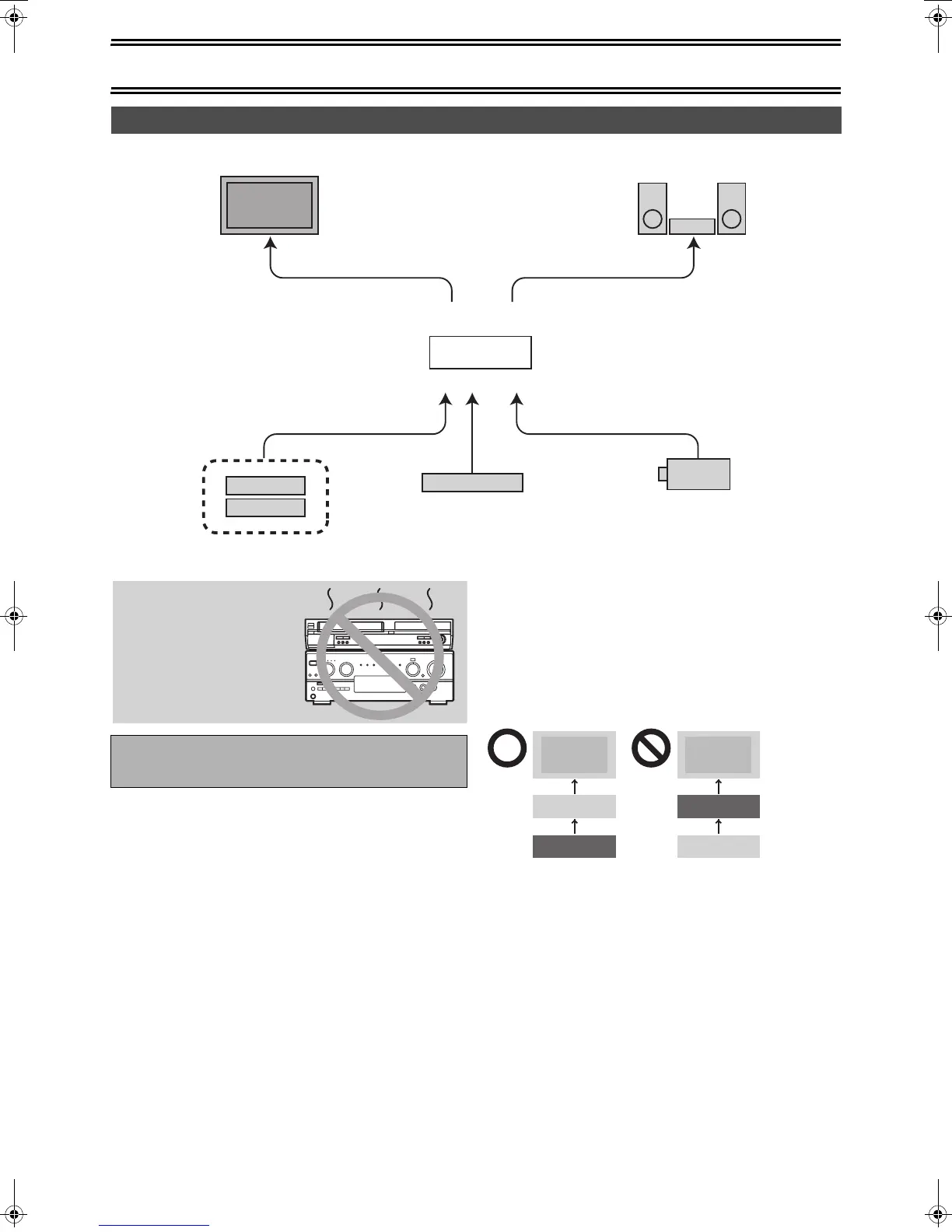

STEP 1 Connection
TV
Amplifier
This unit
From AUDIO OUT terminals or
DIGITAL AUDIO OUT terminal
From AUDIO/VIDEO OUT terminals
To L1 input terminals (rear) To L2 input terminals (front)
CamcorderVideo cassette recorder
Other equipment
Before moving the unit, ensure the disc tray is empty.
Failure to do so will risk severely damaging the disc and the
unit.
Do not place the unit on
amplifiers or equipment
that may become hot.
The heat can damage the unit.
TV TV
This unit
VCR
VCR
This unit
