Panasonic DP-190 - Page 209

209
UF-9000
APR 2006
Ver. 3.0
DP-180/190

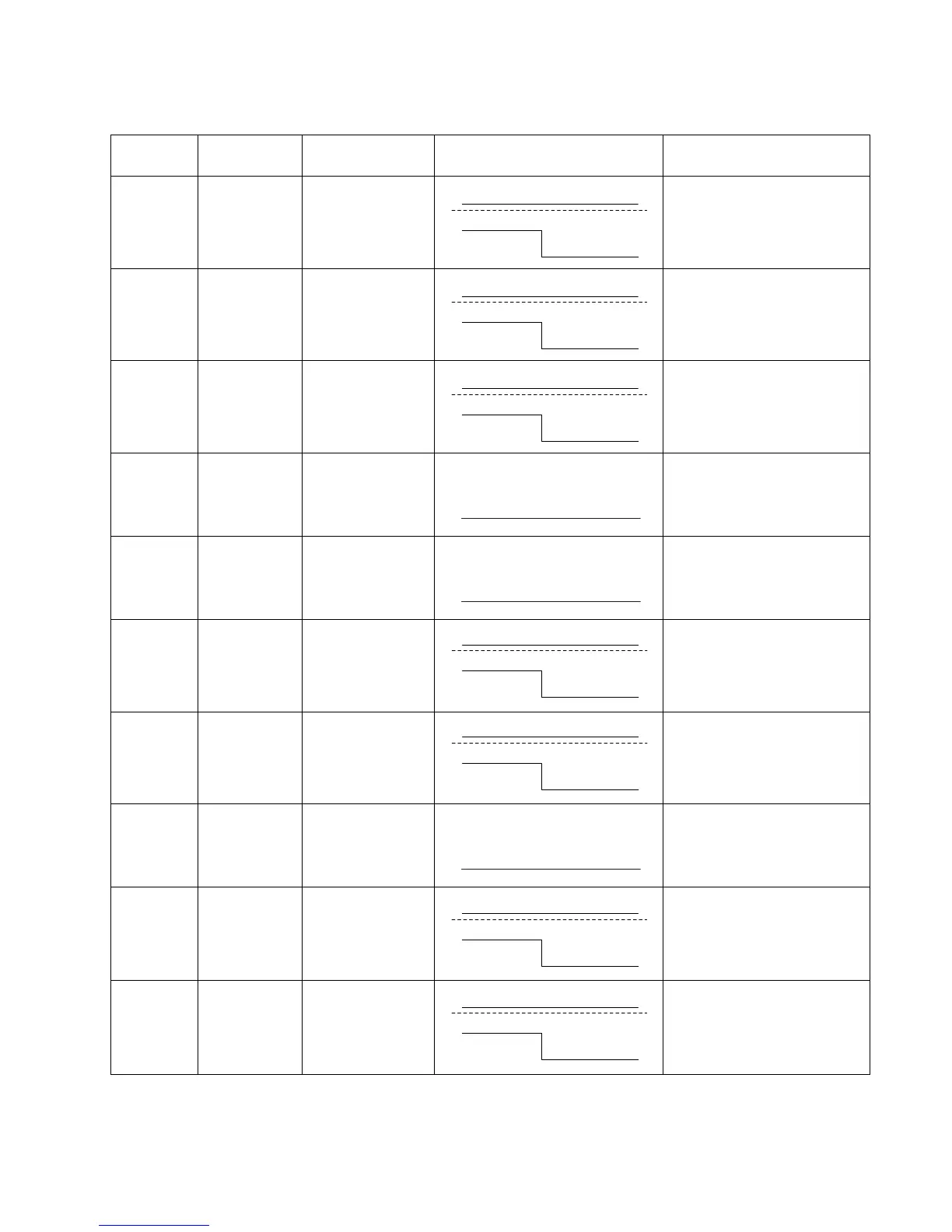

6.4.2. SC PC Board
CN300
SC PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN300-1 +24V LVPS
CN101-1
+24 VDC Power Supply
CN300-2 +24V LVPS
CN101-2
+24 VDC Power Supply
CN300-3 +24V LVPS
CN101-3
+24 VDC Power Supply
CN300-4 GND LVPS
CN101-4
Ground
CN300-5 GND LVPS
CN101-5
Ground
CN300-6 +5V LVPS
CN101-6
+5 VDC Power Supply
CN300-7 +5V LVPS
CN101-7
+5 VDC Power Supply
CN300-8 GND LVPS
CN101-8
Ground
CN300-9 +3.3V LVPS
CN101-9
+3.3 VDC Power Supply
CN300-10 +3.3V LVPS
CN101-10
+3.3 VDC Power Supply
+24V
Sleep Mode
+24V
Shutdown
Mode
0V
+24V
Sleep Mode
+24V
Shutdown
Mode
0V
+24V
Sleep Mode
+24V
Shutdown
Mode
0V
0V
0V
+5V
Sleep Mode
+5V
Shutdown
Mode
0V
+5V
Sleep Mode
+5V
Shutdown
Mode
0V
0V
+3.3V
Sleep Mode
+3.3V
Shutdown
Mode
0V
+3.3V
Sleep Mode
+3.3V
Shutdown
Mode
0V
