280
UF-9000
APR 2006
Ver. 3.0
DP-180/190

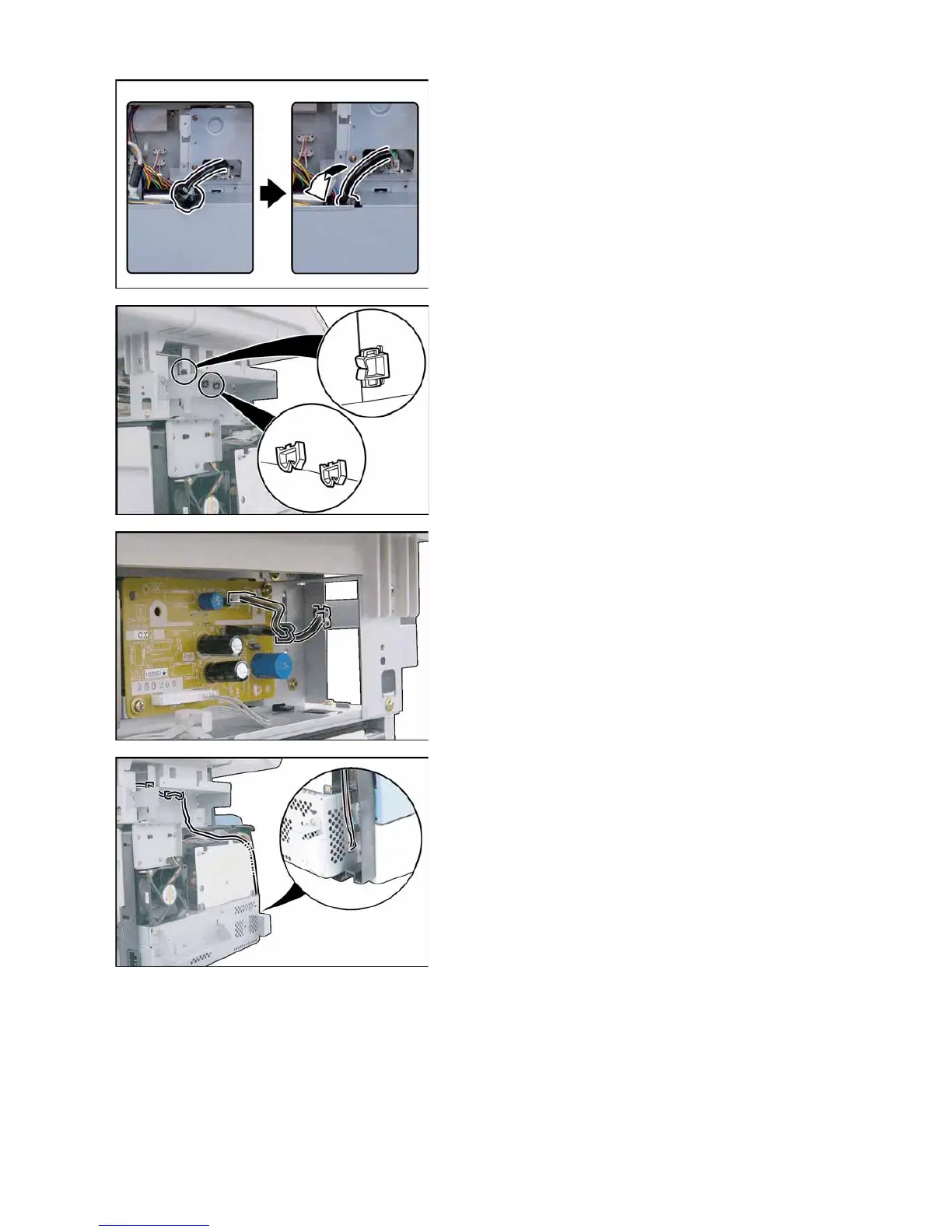

(26) Reinstall the SC Cover.
(27) Secure the SC Cover with 7 Screws.
Note:
Tuck the Ferrite Core into the SC Cover as
illustrated.
(28) Install 2 Harness Clamps (Small), and Edge
Saddle.
(29) Connect the DC Harness to CN141 connector
on the DC PC Board, and route the Harness
through a hole on the side of the machine.
(30) Secure the DC Harness with the Harness
Clamps.
(31) Connect the DC Harness to the LVPS.
To Next Page
