2.2.6. Drive Unit

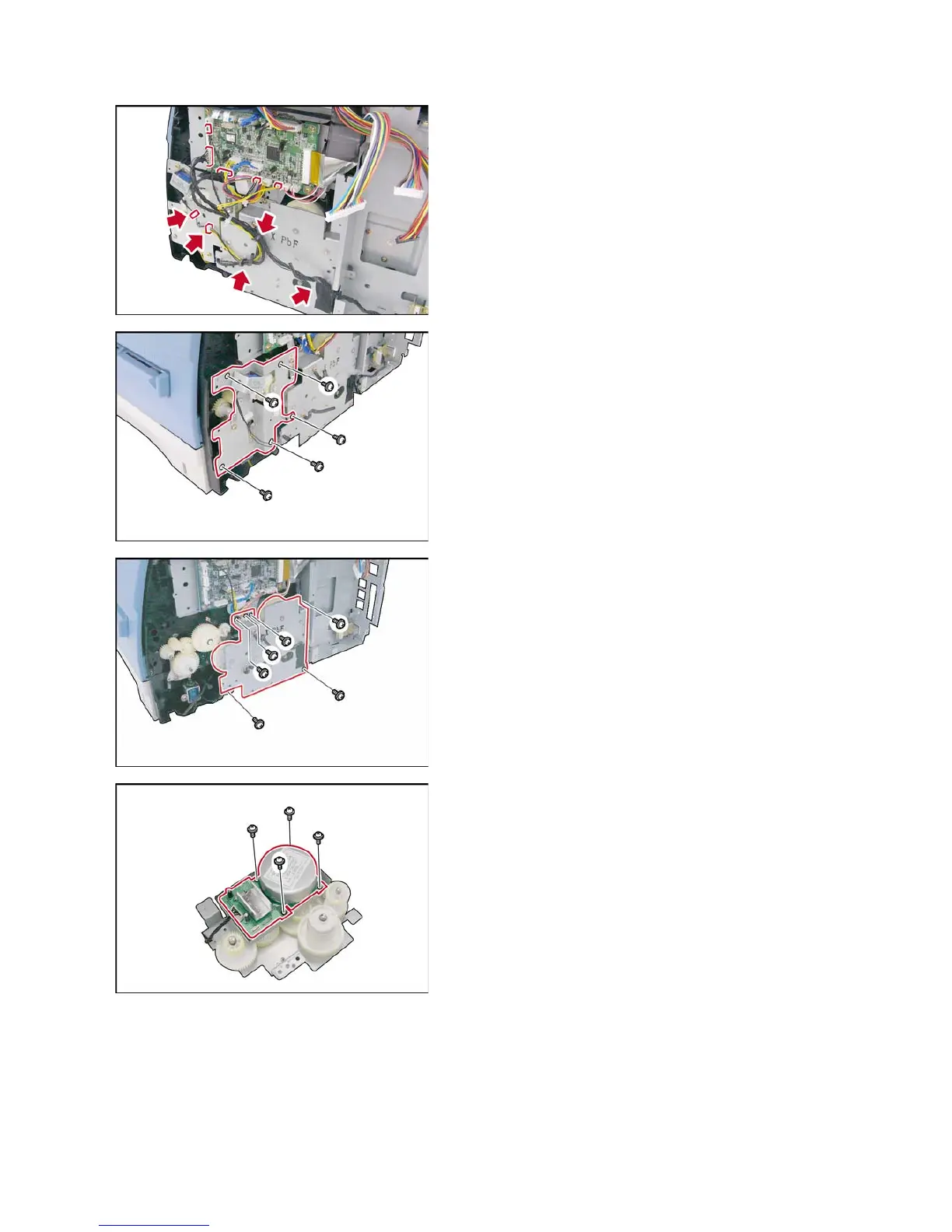

(1) Remove the SC Base Bracket. (Refer to
2.2.5.1.)
(2) Disconnect the Harnesses on the Engine
Control PC Board (CN004, CN011, CN012,
CN016 and CN019).
(3) Release the Harnesses from the Harness
Clamps.
(4) Remove 4 Screws (U1) and 1 Screw (T9).
(5) Remove the Solenoid Assembly.
(6) Remove 6 Screws (T9).
(7) Disconnect the Harness.
(8) Remove the Drive Assembly.
(9) Remove 4 Screws (U1).
(10) Disconnect the Harness.
(11) Remove the Motor (907).
