3. Removing the Buffer Roller Assembly.
4. Removing the Stapler.

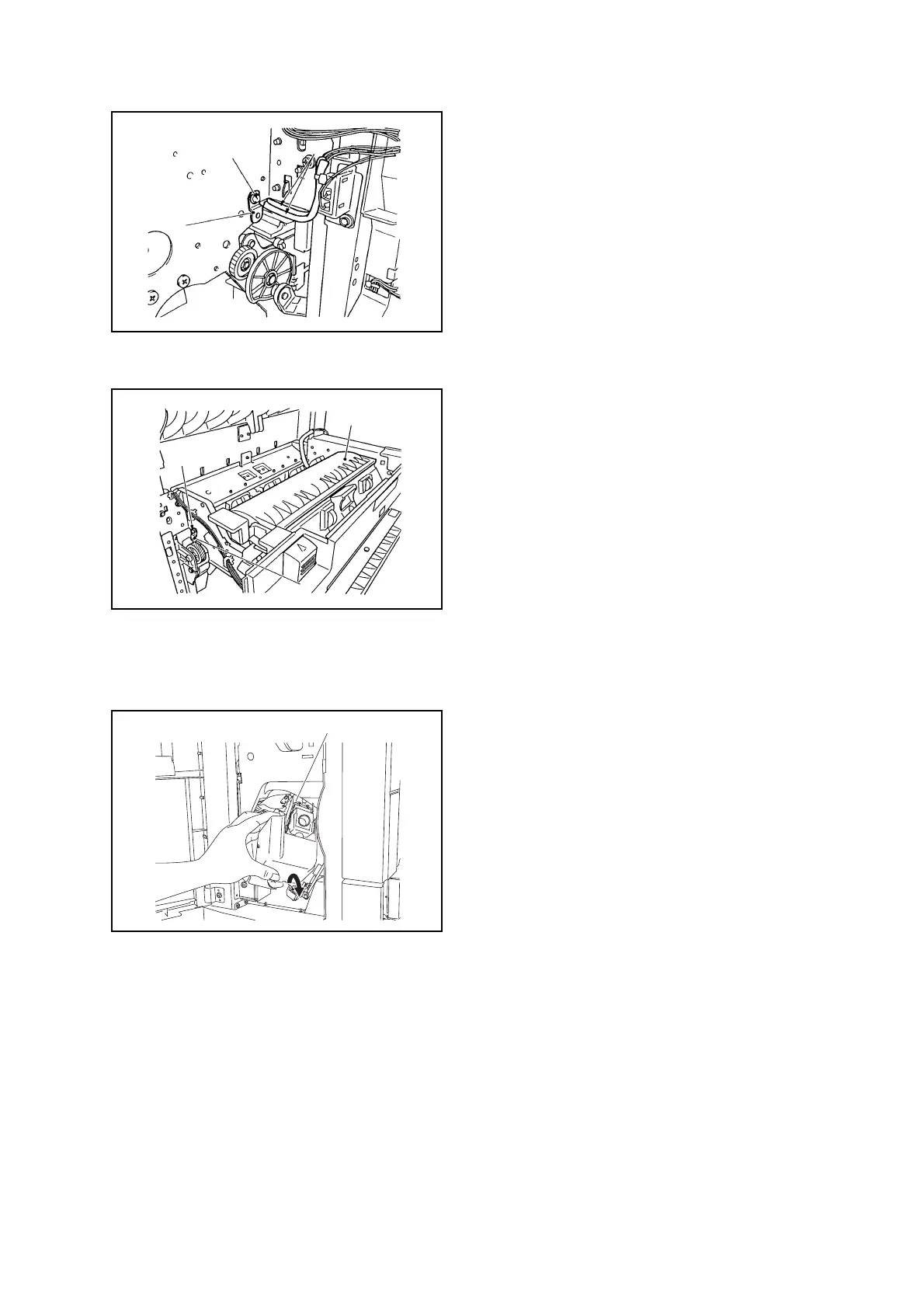

Fig. 5-022
(1) Remove the Finisher Controller PCB.
(See Fig. 5-027.)
(2) Remove the Feed Drive Unit. (See Fig. 5-021.)
(3) Remove 1 Screw [1], and remove the Guide
Support Plate Assembly [2] to draw out the
Harness Leads [3] towards the Buffer Roller
Assembly side.
Fig. 5-023
(4) Remove the Front Cover. (See Fig. 5-005.)
(5) Remove 1 Screw [4], and remove the Guide
Support Plate Assembly [5]. Then remove the
Buffer Roller Assembly [6].
Fig. 5-024
(1) Open the Front Cover, and move the Stapler
Assembly to the front.
(2) Remove 1 Screw.
(3) Turn the Green Tab to the left, pull out the
Stapler Assembly [2] forward and lift it up by
rotating upwards.
[1]
[2]
[3]
[4]
[5]
[5]
[2]
