94
JAN 2006
Ve
r.
5
.
2
DP-3510/3520/3530/4510/4
520/4530/6010/6020/6030
(12)

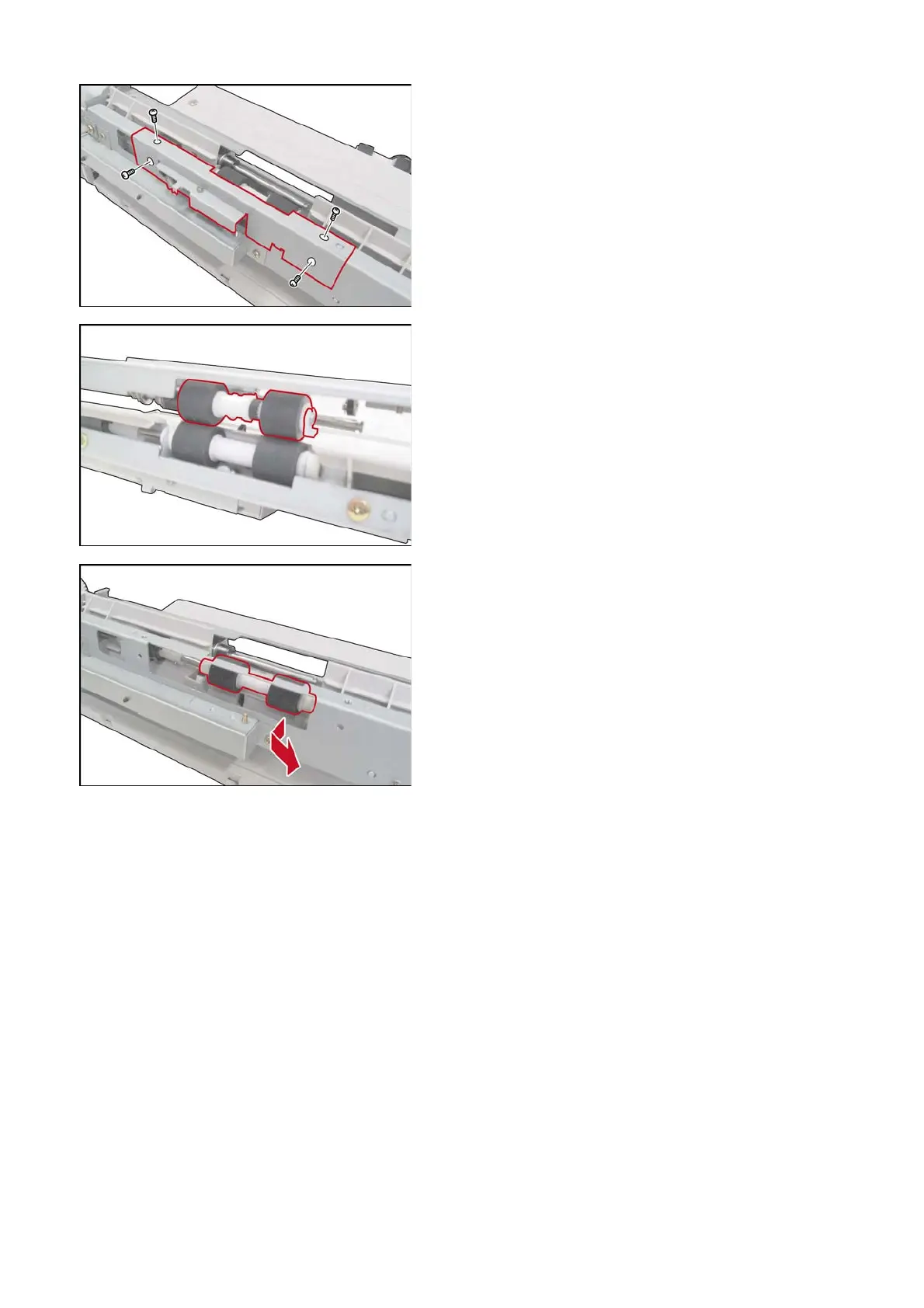

Remove 4
Screws
(25).
(13)
Remove the
Feed Cover
(4638) Assembly
.
(14)
Remove the
Snap Ring
(H6).
(15)
Remove the
Paper Feed Roller
(4608).
(16)
Remove the
Feed Roller
(4612).
93
95
