HDMI IN
HDMI IN
HDMI OUT
Not used
Television
Back of the unit
≥
Set “
Video Output
” to “
On
” and “
Audio
Output
” to “
On
” (
➜
page 20, “
HDMI
” tab).
Television
Television
HDMI cable
Not used
HDMI cable
HDMI cable
Back of the unit
≥Set “Video Output” to “On” and “Audio Output”
to “On” (➜ page 20, “HDMI” tab).
Amplifier
Amplifier
HDMI cable
With HDMI compatible television
and amplifier
With HDMI compatible amplifier
To enjoy digital multi-channel surround sound
in addition to digital high-definition video.
You can still enjoy multi-channel surround sound
when your television is not HDMI compatible by
connecting an HDMI compatible amplifier.
≥To enjoy high-definition video, connect to an HDMI compatible high-definition television and set “Video Output Mode” (➜ page 17,
Picture Menu
).
≥For stable operation and preventing deterioration of video quality, please purchase an HDMI cable 5 m (16
2
⁄5 feet) or less in length with the HDMI logo.
≥ If the speaker setup cannot be completed on the amplifier, then use the “Speaker Settings” setting (➜ page 20, “HDMI” tab).
≥It is not compatible with the HDMI Control Function (CEC).
≥Should you connect equipment that does not support CPPM (➜ page 28, Glossary), the audio from the CPPM copy protected DVD-Audio cannot be output from HDMI AV
OUT terminal. Connect the audio cable (L, R) of the Audio/Video cable to an HDMI compatible AUDIO IN terminal.
§2
Multi-channel speakers
To enjoy digital high-definition video and high
quality audio with a single cable.
≥You can enjoy multi-channel surround sound by
connecting an amplifier with COAXIAL or
OPTICAL terminal (
➜
page 8
).

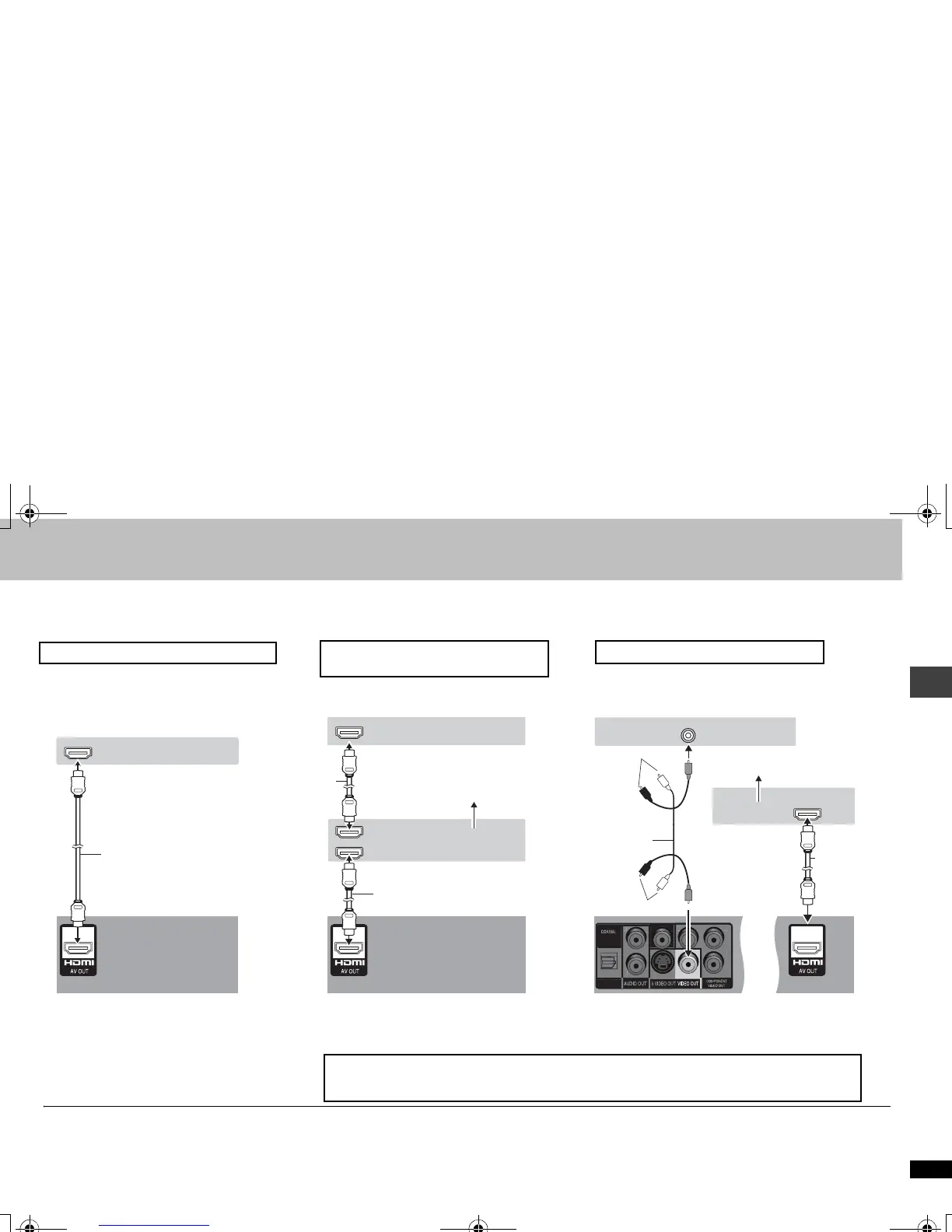

With HDMI compatible television
Audio/video
cable
(included)
Multi-channel speakers
§1
[DVD-V] Audio will be output in 2 channels when output as PCM.
Change “Dolby Digital” and “DTS Digital Surround” (
➜
page 20
, “Audio” tab).
§2
You can also use the S VIDEO and COMPONENT VIDEO terminals.
§1
§2
§1
Back of the unit
≥Set “Audio Output” to “On”. When you connect to a
television through the COMPONENT VIDEO terminal only,
set “Video Output” to “Off”, too (➜ page 20, “HDMI” tab).
Connection
∫ Enjoying higher quality audio and video (HDMI connection) (➜ Page 28, Glossary)
By connecting to an HDMI compatible high-definition television, video recordings can be converted to, and output as, high-definition video (720p,1080i).
You can also enjoy multi-channel surround sound by connecting to an HDMI compatible amplifier with multi-channel output terminals.
