Mini VRF SYSTEM
Outdoor Unit Maintenance Remote Controller
n

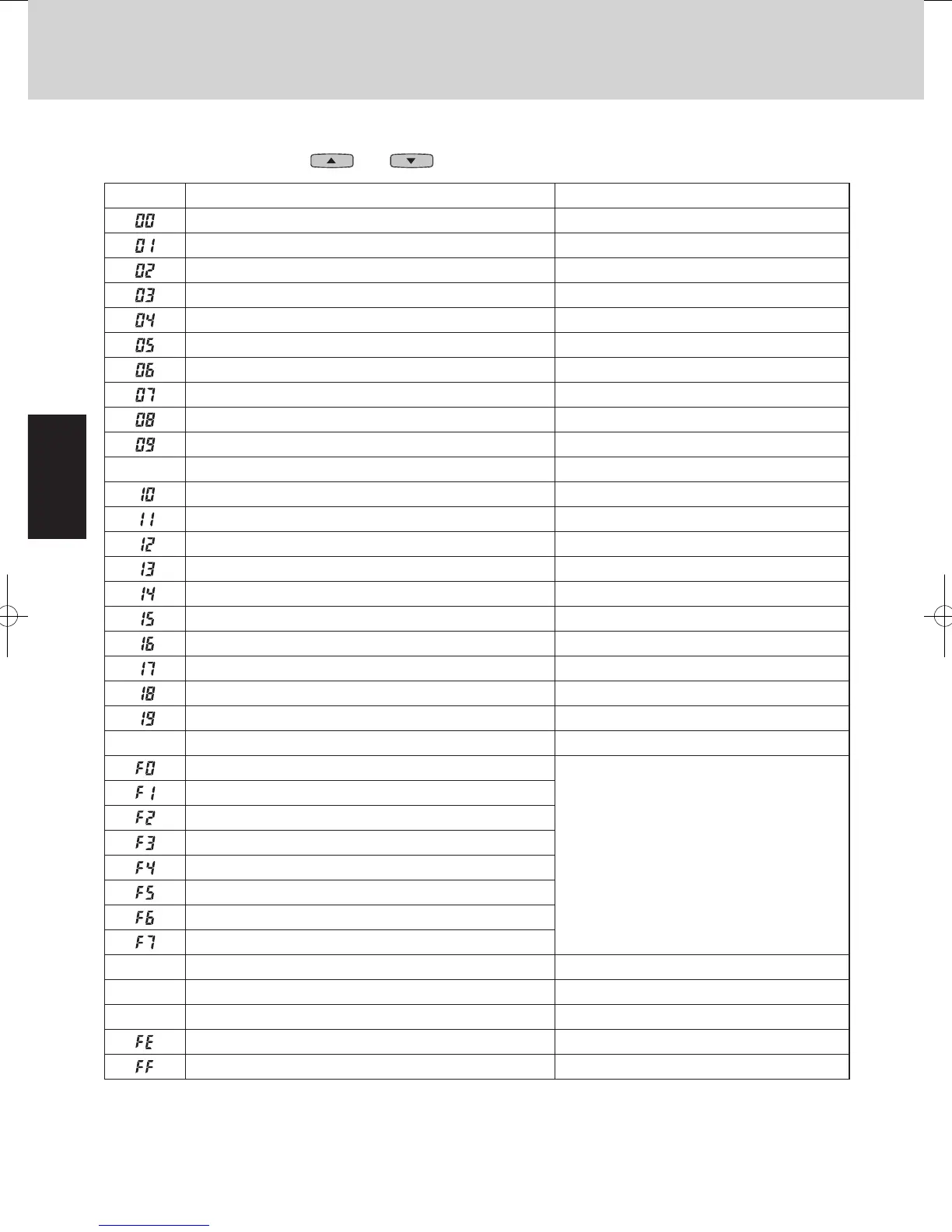

Display (functions)
•
Use the temperature setting and buttons to change the item code.
À
Item code
Á
Item Remarks
Outdoor unit alarm Alarm code display
No. of connected indoor units Quantity
Unit Nos. of connected indoor unit 7-segment display
Operating status of indoor unit 7-segment display
Thermostat ON status of indoor unit 7-segment display
Operating status of outdoor unit compressor 7-segment display
Compressor 1 operating time 0 – 99999999 hours
Outdoor unit power ON time 0 – 99999999 hours
Compressor 1 operation count 0 – 65535 times
Alarm history 1 (most recent)
Alarm history 2
Alarm history 3
Alarm history 4
Alarm history 5
Alarm history 6
Alarm history 7
Alarm history 8 (oldest)
Firmware version Display the version No. × 100.
Program version Display the version No. × 100.
À
and
Á
correspond to Fig. 3-3 on the next page.
