2 Getting Started

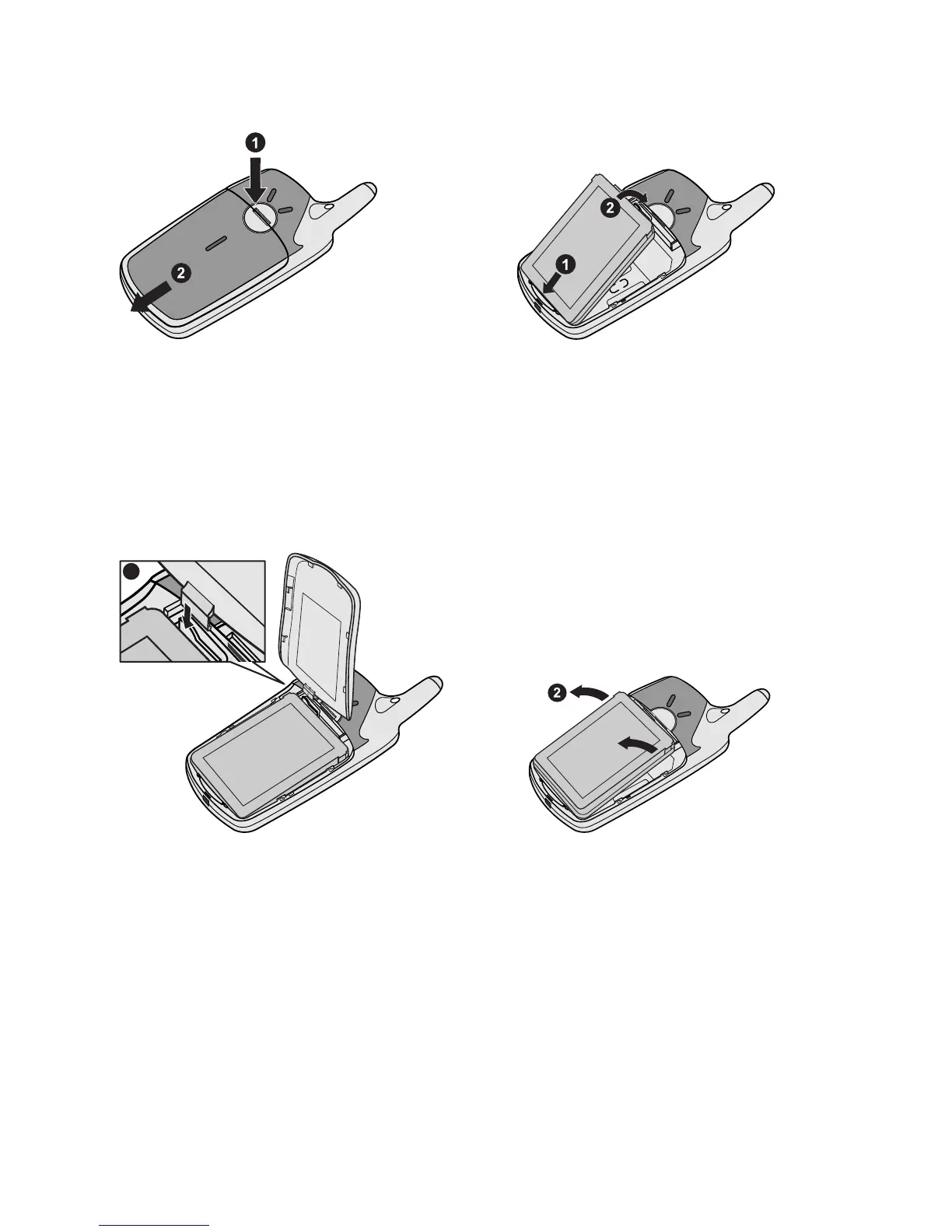

Remove the battery compartment cover. Insert the battery ensuring the
3 gold contacts align with the 3 gold pins in the phone. When replacing
the cover, ensure to slide upward to the top of the phone.
Fitting the battery — A101
1
Push and hold the release latch ➊ towards the top of the phone using
the cover clip, then lift the battery out ➋.
Removing the battery — A101
