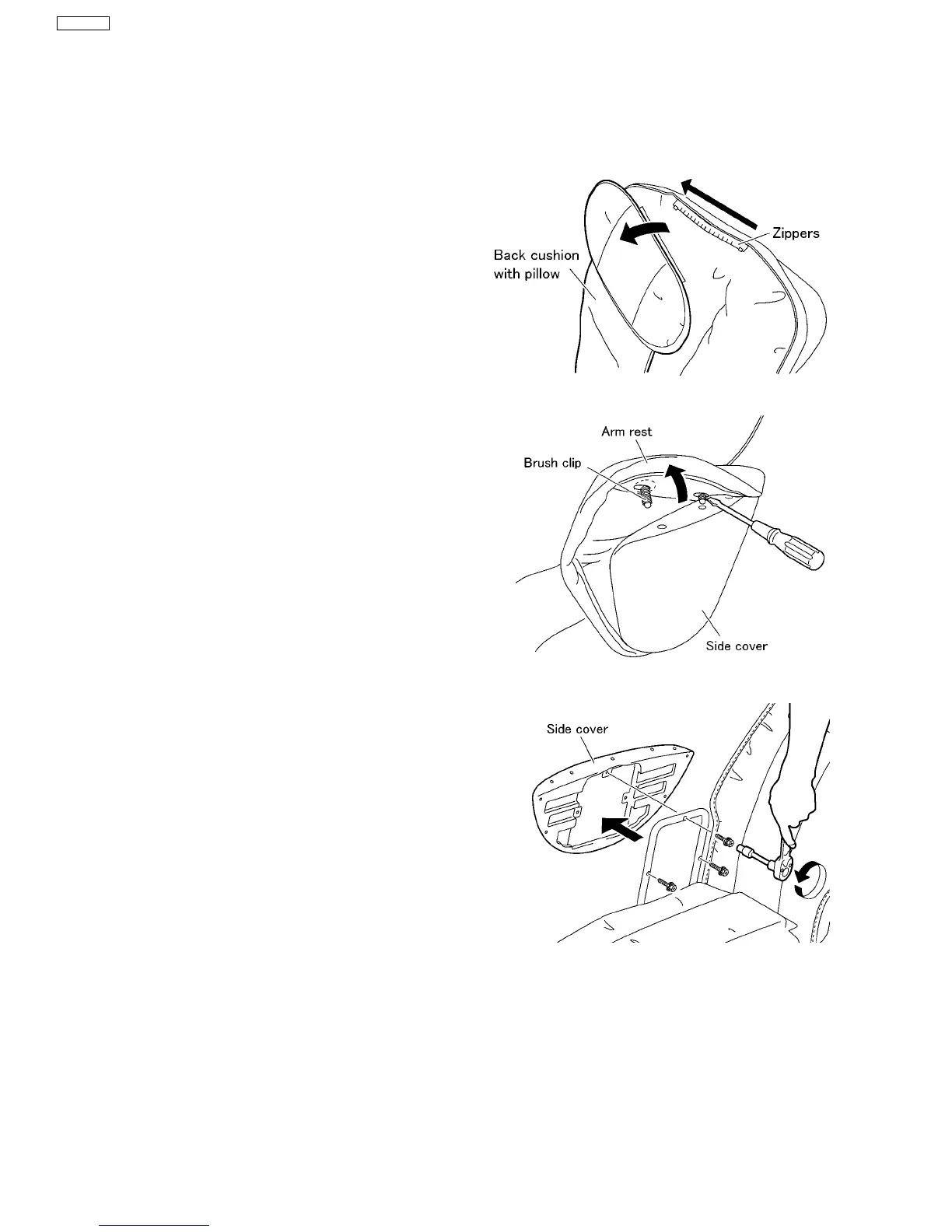

1. Unzip the zippers and remove the Back cushion with pillow.
2. Remove nine brush clips on each sides, which fix the Arm
rest left and the right, with a slotted screwdriver.
This procedure is unnecessary so as to remove the Seat.
3. Remove three screws on each sides, which fix the Side
covers, and remove the Side covers.
This procedure is unnecessary so as to remove the Seat.
10 DISASSEMBLY AND ASSEMBLY INSTRUCTION
(COSMETIC PART AND CHAIR CONSTRUCTION)
10.1. Removing the Head rest, Back rest cushion, Arm rest
14
EP1260-W7
