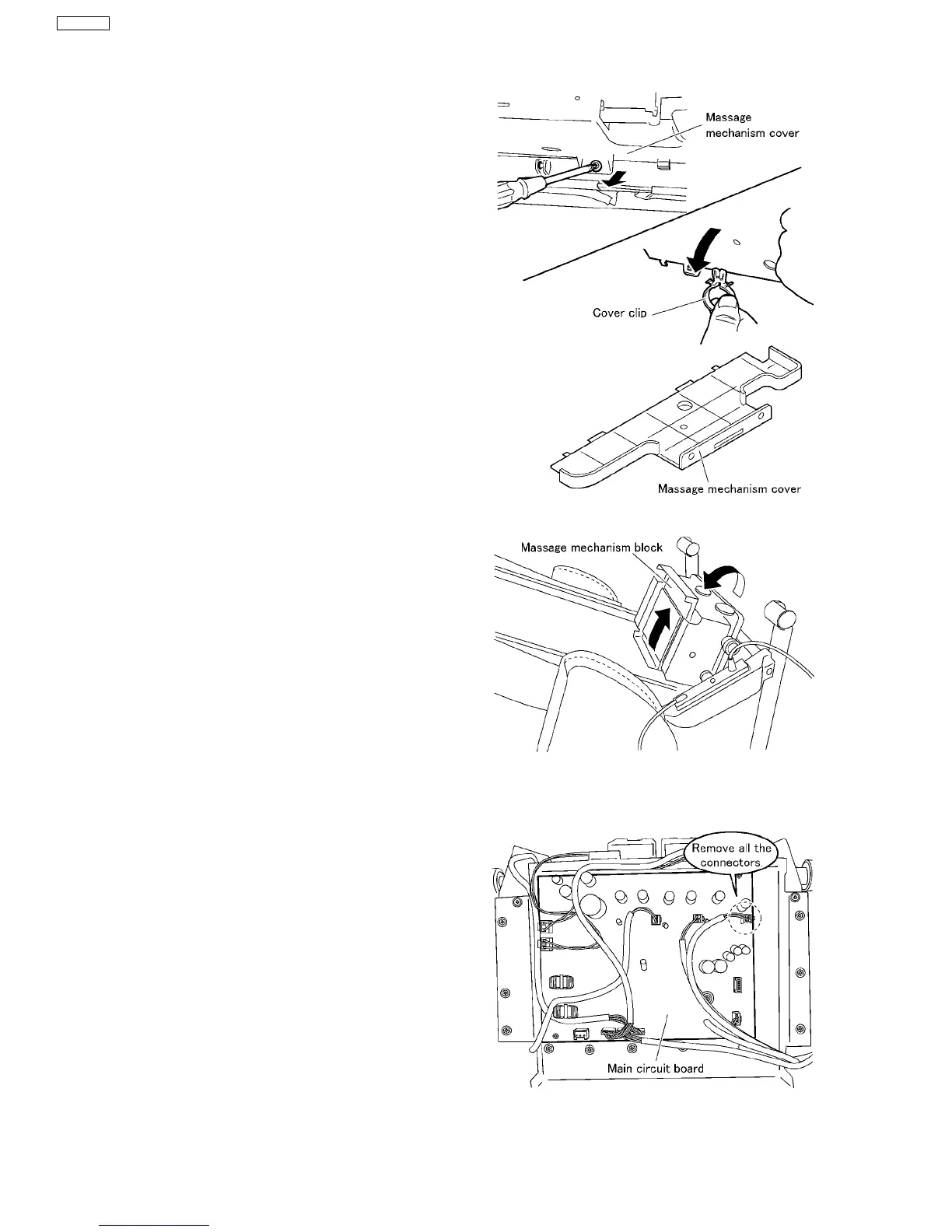

6. Remove two plastic rivets on the Massage mechanism
cover and take off the Message mechanism cover and
remove the Cover clip.
7. Lift up the bottom of the Massage mechanism block as the
figure and take it off.
·
Be sure to check if there is more approx. 9cm between
each kneading balls because if the distance is short you
may not be able to take away the block obstructed by
the bottom metal piece of the Rear frame.
If the distance is less than 9cm, adjust the distance
moving the Width belt on the right side of the Massage
mechanism block using fingers.
You can work from 1. to 12. without taking away the
Massage mechanism block.
1. Remove connectors on the Main circuit board.
10.3. Removing the parts of the Massage mechanism block
18
EP1260-W7
