EP1285
ORDER NO.0808U08C1
- 34 -

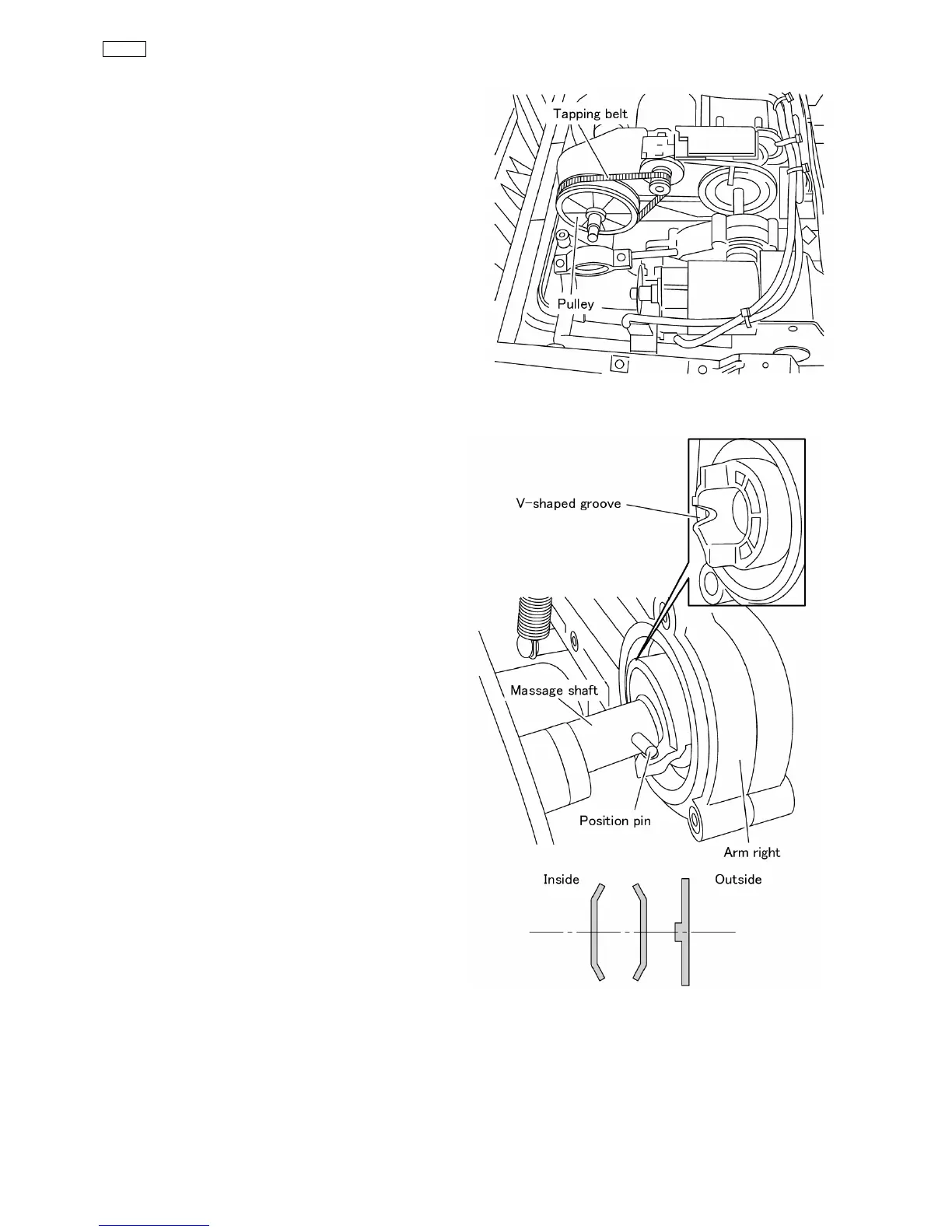

2. Remove the Tapping belt and the Pulley.
Caution in installing Arm right
* When installing the Arm right to the Massage shaft,
do not insert the Position pin to the V-shaped groove.
* Be careful of the directions of the Washer when
installing.
* Tightening torque is about 20-25kgfcm.
If you fail to do so, the Hawaiian operation cannot be
executed.
To Next Page
