EP3513
ORDER NO.HPD0509U24C1
- 40 -

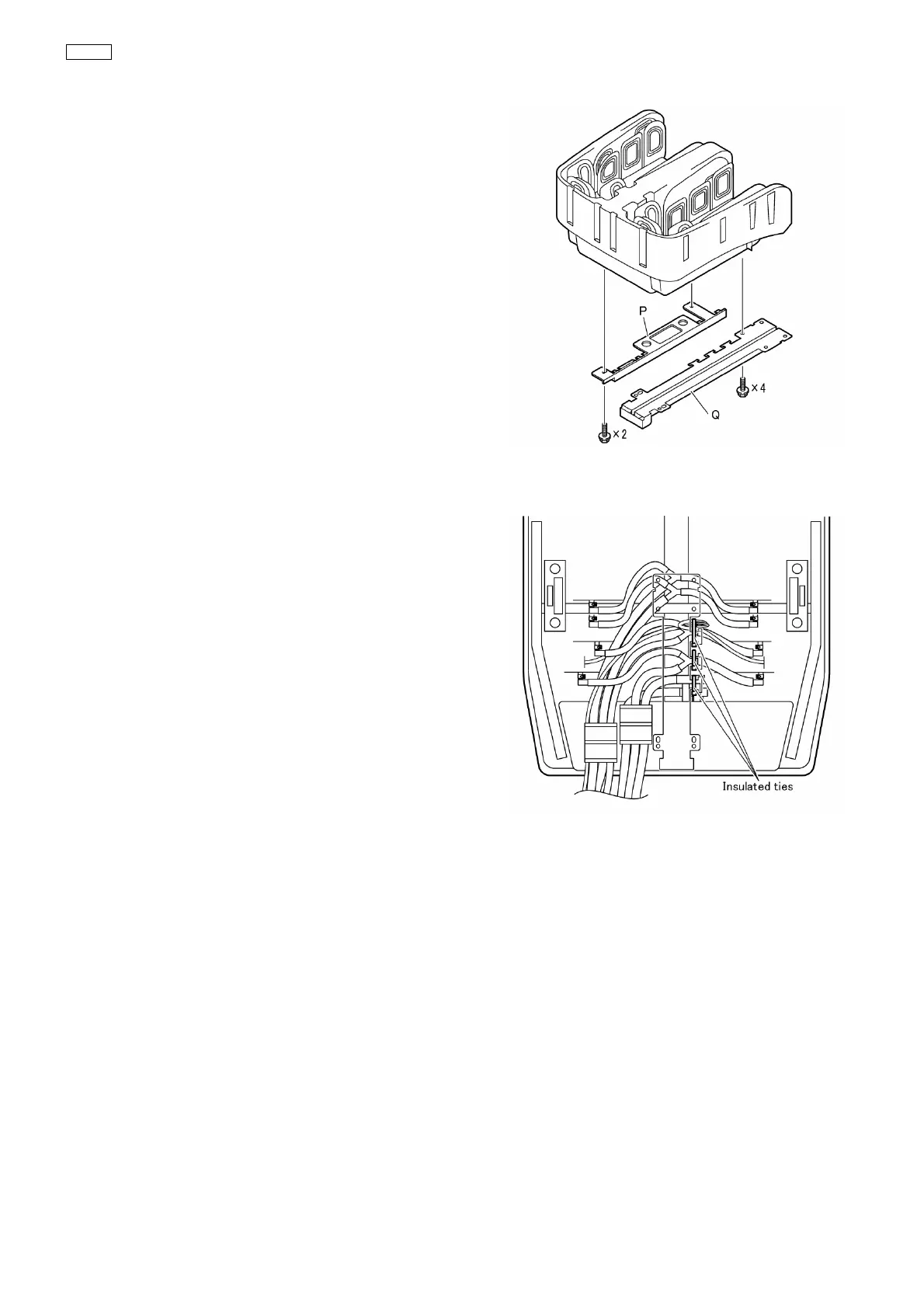

13. Unscrew two screws and remove the P. As the same, unscrew
four screws and remove the Q.
Caution in installing
Fix each Hoses with Insulated ties as the Figure when
installing the Q.
