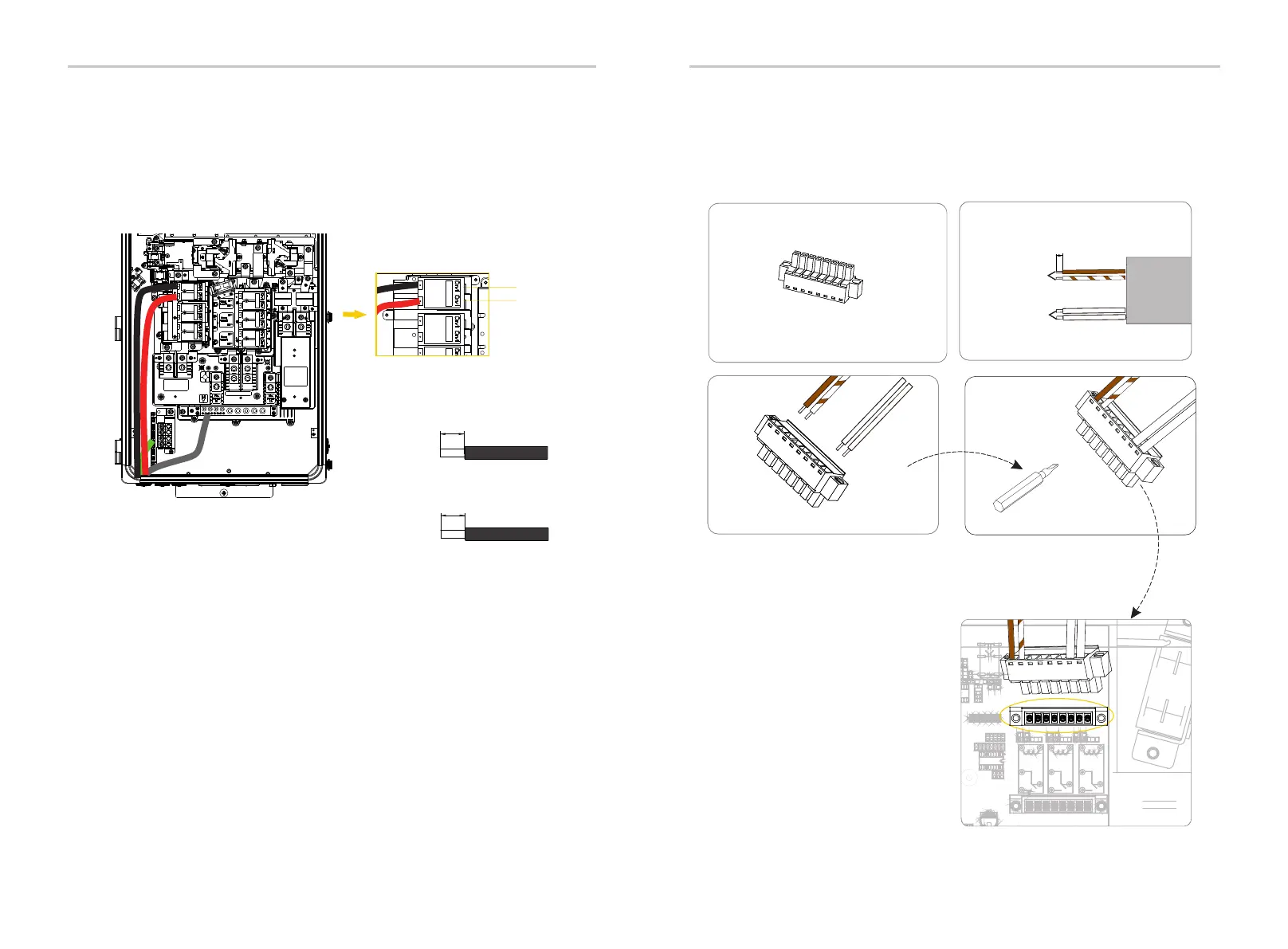

7.2 Connect Generator and EPO Conductors to EV-SB
• AC cable of generator
8-4 AWG 0.67 in / 17 mm
Wirings
14-4 AWG 0.4 in / 10 mm
Wirings
• Communication cable of generator and EPO
41
40
AC cable
GND cable
8-pin
Step 1
Strip Length
Conduit
0.24 in / 6 mm
Step 2
24-16 AWG
24-18 AWG
Step 3
Step 4
Generator
EPO
On the side of EV-SB
1
Conduit
8
L2
L1
Wiring Connection on the EV-SBWiring Connection on the EV-SB
