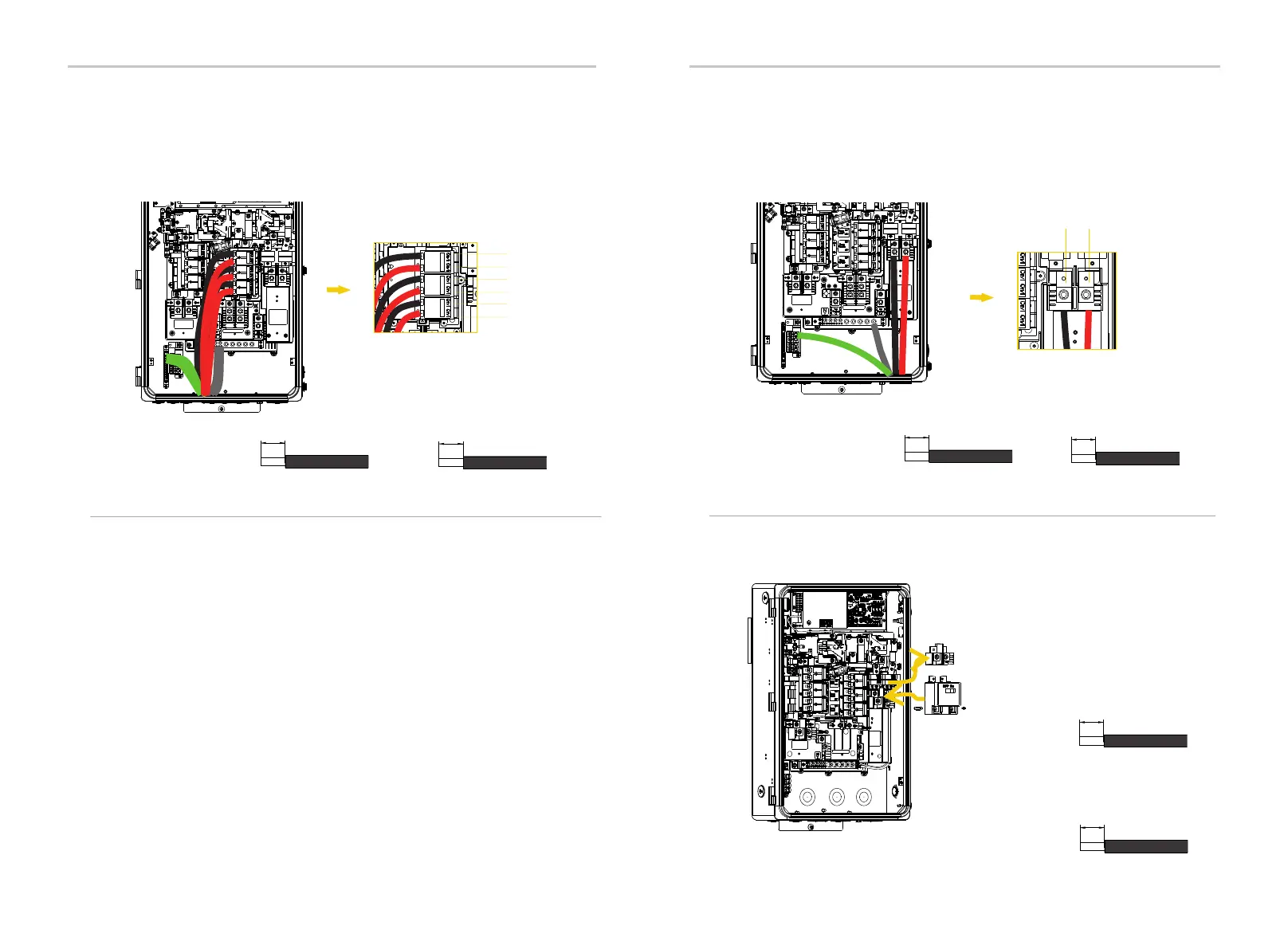

7.3 Connect Smart Load Conductors to EV-SB
• AC cable
4/0 AWG 1.25 in / 32 mm
Wirings
6-4 AWG 1.77 in / 45 mm
Wirings
7.4 Connect Grid Conductors to EV-SB
4-4/0 AWG 1.0 in / 25 mm
Wirings
6-4 AWG 1.77in/45mm
Wirings
43
42
4-4/0 AWG 1.0 in / 25 mm
Wirings
After installing a main breaker
Before installing a main breaker
6-2/0 AWG 0.7 in / 17 mm
Wirings
6-2/0 AWG 0.7 in / 17 mm
Wirings
GND cable
AC cable
GND cable
AC cable
GND cable
AC cable
L2
L1
L2
L1
L2
L1
L1 L2
Grid Breaker
Wiring Connection on the EV-SBWiring Connection on the EV-SB
